Copper Bonded Conductor High Quality Industrial Grade Material For Electrical Earthing And Reliable Bulk Supply
| Standard | Is Iec 62305, 62561 |
|---|---|
| Impulse Current | 100 Ka 10, 350 Μs |
Durable Copper Bonded Conductors Manufactured for Industrial Projects, Safe Earthing Systems, and Large-Scale Buyer Requirements

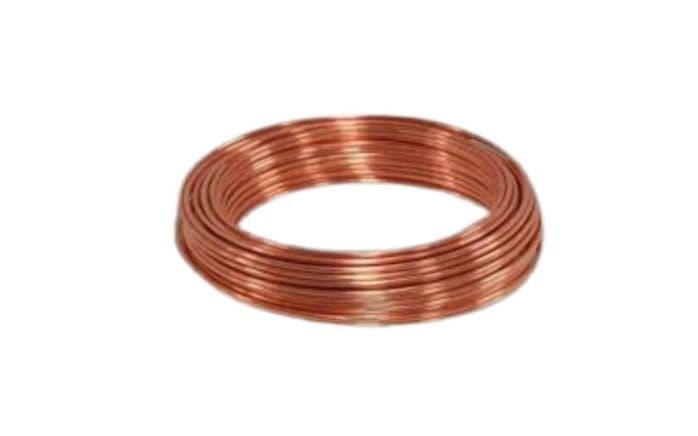

Veraizen Earthing is a trusted copper-bonded conductor manufacturer, a stable manufacturer of earthing systems for all electrical and industrial uses. Copper-bonded conductors are developed as a result of permanently bonding a uniform copper layer on top of a high-strength steel core, and the product that is produced is excellent in conductivity as well as mechanical durability. This is a construction that promises uniform performance and durability under harsh conditions.
- High resistance to corrosion, ensuring long-term performance in various soil and environmental conditions
- Maintains low electrical resistance over time for efficient and reliable earthing
- Copper surface enables effective dissipation of fault currents, enhancing electrical safety
- High-strength steel core allows deep driving and provides secure, stable installation
- Suitable for critical applications such as substations, power plants, transmission systems, and large-scale infrastructure projects
Compared to traditional earthing materials, copper-bonded conductors offer optimum performance and cost-effectiveness. There are many other alternatives regarding durability and reliability, with particular reference to aluminum conductor systems that can easily be affected by oxidation and mechanical wear under specific soil conditions.
As demand grows due to the digital procurement methods, copper-bonded conductors are being procured through the B2B marketplace thus enabling industries and contractors to comfortably acquire standardized products that are of excellent quality. They have become a critical part of a current electrical grounding system due to their versatility and adherence to the international earthing standards.
Copper Bonded Conductor – Detailed Weight Chart
| Rod Diameter (mm) | Rod Diameter (inch) | Copper Coating (Micron) | Weight per Meter (kg) | Weight per Rod – 1.2 m (kg) | Weight per Rod – 2 m (kg) | Weight per Rod – 3 m (kg) |
|---|---|---|---|---|---|---|
| 14.2 | 5/8" | 70 | 1.18 | 1.42 | 2.36 | 3.54 |
| 14.2 | 5/8" | 120 | 1.20 | 1.44 | 2.40 | 3.60 |
| 14.2 | 5/8" | 254 | 1.25 | 1.50 | 2.50 | 3.75 |
| 16 | 3/4" | 70 | 1.52 | 1.82 | 3.04 | 4.56 |
| 16 | 3/4" | 120 | 1.55 | 1.86 | 3.10 | 4.65 |
| 16 | 3/4" | 254 | 1.60 | 1.92 | 3.20 | 4.80 |
| 17.2 | — | 120 | 1.75 | 2.10 | 3.50 | 5.25 |
| 19 | — | 120 | 2.15 | 2.58 | 4.30 | 6.45 |
| 20 | — | 120 | 2.40 | 2.88 | 4.80 | 7.20 |
The Copper Bonded Conductor Weight Chart is a clear and viable resource to be used in the selection of the right conductor size depending on the diameter, coating of copper, and rod length. This table assists the engineers, contractors, and project planners to estimate the material weight correctly to get the estimated material weight to be transported and installed and finally to estimate the total project cost. When weights per meter and per rod of various sizes and copper microns are compared, it will be easier to select the most appropriate copper-bonded conductor in order to make earthing and lightning protection applications efficient.
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Copper Bonded Conductor for Oil and Gas Industry | 104 Pieces | Bareilly, Uttar Pradesh |
| Copper Bonded Conductors supplied to Power Plant | 140 Pieces | Mumbai, Maharashtra |
| Copper Bonded Conductor supply for Petrochemical | 160 Pieces | Tamil Nadu, Chennai |
Type of Sub-products

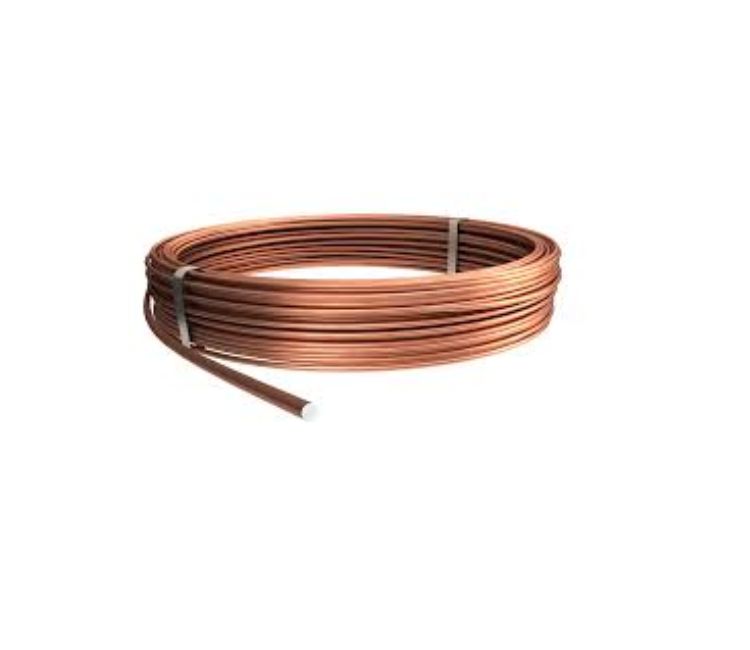

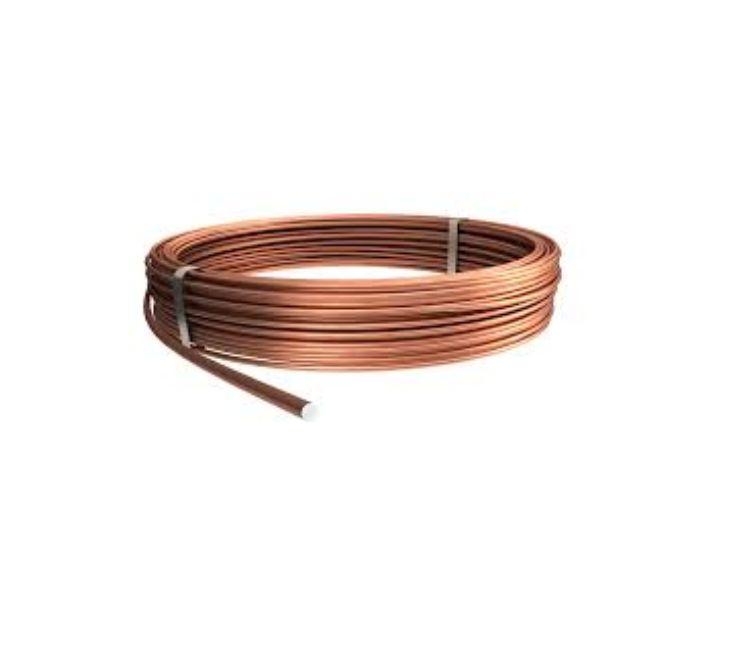

Copper Bonded Round Conductor Copper Bonded Round Conductor
This round conductor combines the mechanical strength of steel with the conductivity of copper. It’s suitable for earthing, bonding, and power distribution systems where flexibility and durability are essential.

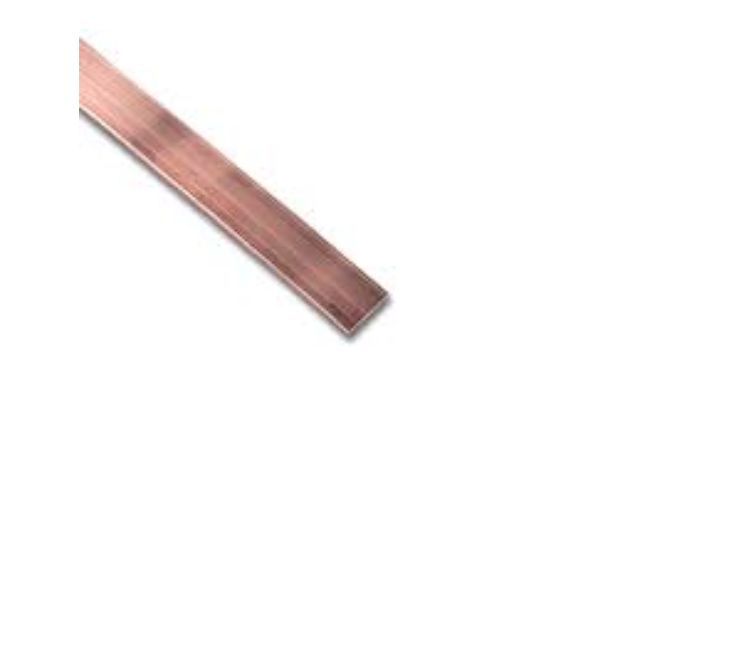

Copper Bonded Tape Conductor Copper Bonded Tape Conductor
Used for grounding and lightning protection, this tape conductor features uniform copper bonding for long-term stability. Its flat profile allows easy installation in confined spaces and industrial setups.
