Name: Raised Face Flange Gasket
Brand: Gasco Inc.
Availability: InStock
Rating: 5 (13 reviews)

Question 1

What is a raised face flange?

Accepted Answer

A raised face flange is a type of flange that connects pipes, valves, and other piping components. It has a raised area surrounding the entrance where the bolts are installed. This raised face serves numerous reasons, including providing a surface for improved sealing when squeezing gaskets between two flanges, making alignment easier during assembly, and boosting joint strength by distributing weight more evenly. The raised face flange design helps to avoid leaks. It ensures a tight seal in high-pressure and high-temperature applications in sectors such as oil and gas, chemical processing, and energy generation.

Question 2

What materials are raised face flanges commonly made of?

Accepted Answer

Raised face flanges are often built of various materials, depending on the individual application requirements. Carbon, stainless, and alloy steel are the most widely used materials. Carbon steel is famous for its durability and low cost, making it suited for various industrial applications. Stainless steel is preferred for its corrosion resistance, especially in situations with high quantities of moisture or chemicals. Alloy steel has increased strength and resistance to corrosion and high temperatures. It is ideal for use in harsh environments such as the oil and gas sector or chemical processing facilities. Other materials, such as brass, bronze, and PVC, may also be utilized in particular applications that need compatibility with specific substances or nonmetallic qualities.

Question 3

What is ASTM A350 LF2 raised face flange?

Accepted Answer

ASTM A350 LF2 raised face flange joins pipes, valves, and other piping system components. "ASTM A350 LF2" refers to the material grade, which is low-carbon steel designed for low-temperature use. The phrase "raised face" refers to a flange face with a little elevated section around its circumference, creating a tight seal when squeezed against another flange face. This design helps to prevent leaks in high-pressure and high-temperature applications. Raised face flanges are widely utilized in many industries, including oil & gas, petrochemicals, and power generation, due to their dependability and ease of installation.

Question 4

What is ASTM A694 F52/F60/F65 raised face flange?

Accepted Answer

ASTM A694 F52/F60/F65 raised face flanges are high-strength carbon and alloy steel flanges intended for use in high-pressure and high-temperature environments, particularly in the oil and gas industry. These flanges are manufactured to fulfill ASTM International standards for mechanical qualities and chemical composition. The classifications "F52", "F60", and "F65" indicate differing levels of strength and toughness, with each grade geared to particular operational situations. These flanges have a raised ring or face around the bore that helps to establish a tighter seal when fastened to another mating flange. The raised face design improves the flange's capacity to endure high-pressure situations, making it ideal for essential applications requiring leak prevention.

Question 5

What are the chemical properties of raised face flanges?

Accepted Answer

Raised face flanges, widely used in plumbing systems, are typically composed of carbon steel, stainless steel, or alloy steel. The chemical characteristics of these flanges vary according to the material composition. Carbon steel raised face flanges frequently have high tensile strength and hardness, with the addition of carbon improving their mechanical qualities. Stainless steel raised face flanges are well-known for their corrosion resistance due to their chromium content, which creates a passive oxide layer on the surface that protects against rust and other forms of corrosion. Alloy steel raised face flanges have qualities customised to specific applications, with elements such as chromium, nickel, and molybdenum offering increased strength, corrosion resistance, and temperature stability. Additionally, these flanges may have surface treatments or coatings to improve their chemical qualities, such as better resistance to hostile conditions or increased durability.

Question 6

How is the Weight of a Raised Face Flange Calculated?

Accepted Answer

The weight of a raised face flange is estimated using various criteria, including the flange's size, material density, and raised face thickness. The weight is usually calculated by multiplying the flange's surface area by its material density and the thickness of the elevated face. The surface area is computed using the flange diameter and the facing type (e.g., raised face), considering any bolt holes or other features. Once these criteria are established, the weight may be precisely determined to ensure the correct handling and installation of the flange in various industrial applications.

Sizes	1/2 Nb, 24 Nb
Gasket Standards	Asme B16.20 Gaskets, Asme B16.21 Gaskets
Outside Diameter	Nps 1⁄2 Through Nps 8 Is ±0.8 Mm; For Nps 10 Through Nps 24, −0.8 Mm., +1.5 Mm
Inside Diameter	±0.8 Mm., Nps 1⁄2 Through Nps 8 Is ±0.4 Mm; For Nps 10 Through Nps 24

Raised Face Flange Gasket

Raised Face Flange Gasket Manufacturers In India

Type of Sub-products

Spiral Wound Gaskets

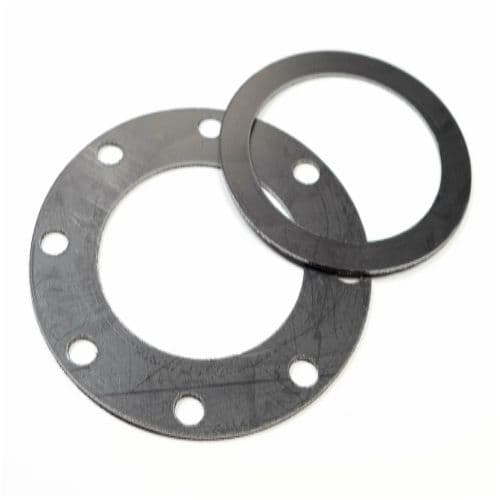

Ring Type Joint (rtj) Gaskets

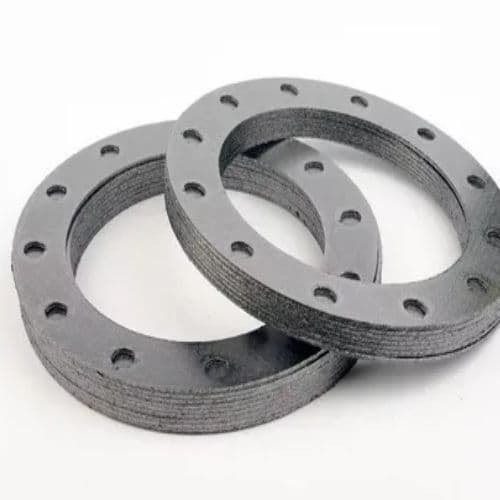

Metallic Gaskets

Kammprofile Gaskets
