| Size range | 1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet |
5086 Aluminium Sheet Manufacturer in India Supplying Marine-Grade Aluminium for Heavy-Duty Use
Inox Steel India is a top 5086 Aluminium Sheet Manufacturer in India, which supplies highly enhanced aluminium sheets that are 5086 sheets in order to deliver superior performance in the seawater and rough weather atmosphere. 5086 aluminium sheet is mostly used in building ships, offshore structures, pressure vessels, and transportation equipment because of its high performance in seawater and harsh weather conditions. Its composition is made of magnesium giving it increased resistance to stress corrosion cracking and structural stability over time.
5086 aluminium sheets are provided in different sizes of sheet thickness and surface finish in order to fulfill industrial demands 5086 aluminium sheets are supplied according to the demand in terms of thickness and surface finish through a dependable B2B platform. As an alternative, 6082 T6 Aluminium Sheet is usually used as a structural material in cases where greater machinability and strength are needed.
The 5086 aluminium sheets provide stability and high-temperature performance in low temperature making the sheets suitable in the use of marine vessels and cryogenic applications. 6061 T6 Aluminium Sheet is mostly used in general structural fabrication whereas 5052 Aluminium Sheet is used where better formability and moderate corrosion properties are needed. The product range has a support network to shipbuilding, offshore engineering, and heavy fabrication industries as a 5086 Aluminium Sheet Dealer In India with a reliable supply of the product.
Material & Grades of Aluminium Sheet
Different alloys and tempers are made in aluminium sheets that are applicable depending on the strength, corrosion resistance, and fabrication needs. The right grade selected will guarantee maximum performance and long life.
| Material | Grade / Standard | Temper | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Aluminium | EN AW-5086 | H111 / H116 | 1.5 – 40.0 | 1000 – 2500 | Marine structures |
| Aluminium | EN AW-5052 | H32 | 0.5 – 6.0 | 1000 – 2000 | Fuel tanks, panels |
| Aluminium | EN AW-6061 | T6 | 1.0 – 25.0 | 1000 – 2000 | Structural frames |
| Aluminium | EN AW-6082 | T6 | 1.0 – 40.0 | 1000 – 2000 | Load-bearing parts |
| Aluminium | EN AW-7075 | T6 | 0.8 – 12.0 | 1000 – 1500 | Aerospace fittings |
Key Product Features & Advantages
- Excellent corrosion resistance in marine environments
- High strength and long-term durability
- Suitable for low-temperature and heavy-duty applications
- Good weldability and fabrication properties
- Available in standard and custom-cut sizes
- Ideal for shipbuilding and offshore industries
5086 Aluminium Sheets Mechanical Properties:-
| Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| KSI | KSI | % | |
| O (annealed) | 44 | 14 | 16 |
| H32 | 47 | 28 | 12 |
| H112 | 35 | 14 | 14 |
| H116 | 40 | 28 | 10 |
5086 Aluminium Sheets Equivalent Grades:-
| Aluminium Grade | European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| 5086 | AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
Type of Sub-products

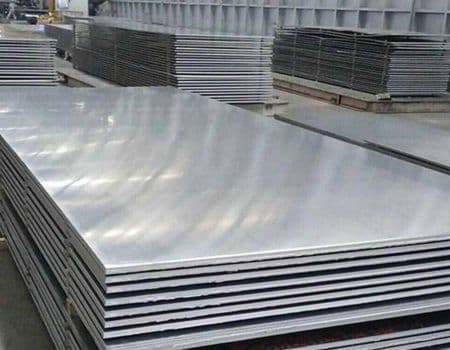

Plain 5086 Aluminium Sheet Plain 5086 Aluminium Sheet
Flat, uncoated sheet suitable for forming and fabrication. Used in ship decks, storage tanks, and architectural cladding where formability and corrosion resistance are essential.

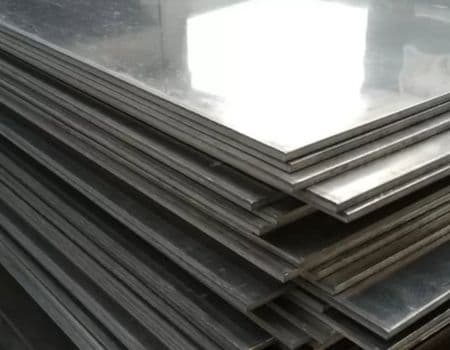

Marine Grade 5086 Aluminium Sheet Marine Grade 5086 Aluminium Sheet
Enhanced for seawater resistance and anti pitting performance. Widely used in hull construction, offshore platforms, and boat cabins.
