| Size range | 1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet |

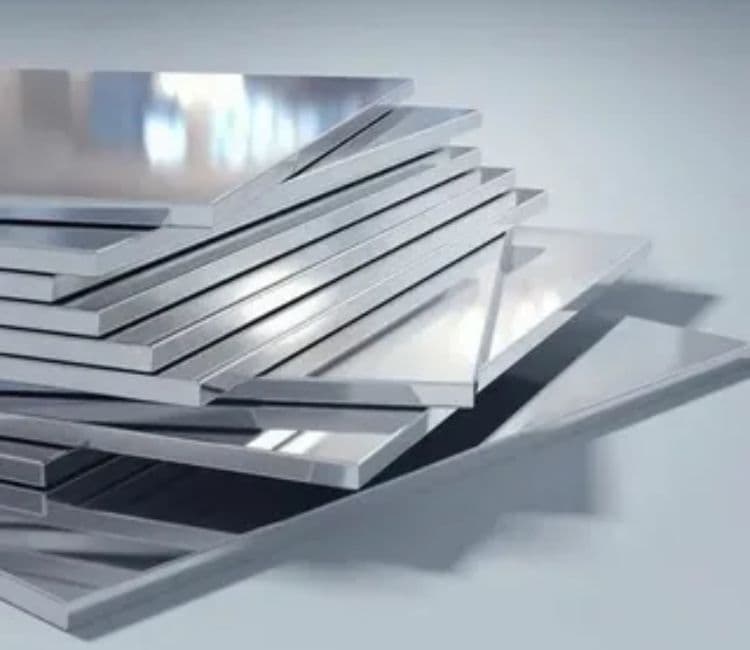

Aluminium Alloy 2014 Sheet Manufacturer in India Offering ASTM B209 Standard 2014 Sheets with Excellent Machinability
Material & Grades of Aluminium Alloys Sheet 2014
Aluminium Alloys Sheet 2014 is available in various tempers and specifications to meet mechanical and performance requirements. Selecting the right grade ensures durability, safety, and long service life.
| Material | Grade / Standard | Temper | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Aluminium Alloy | 2014 | T6 / T651 | 1.0 – 40.0 | 1000 – 2000 | Heavy engineering |
| Aluminium Alloy | 2024 | T3 / T351 | 0.8 – 25.0 | 1000 – 2000 | Aerospace structures |
| Aluminium Alloy | 1100 | H14 / H24 | 0.5 – 10.0 | 1000 – 2000 | Cladding, insulation |
| Aluminium Alloy | 3003 | H12 / H14 | 0.5 – 12.0 | 1000 – 2000 | General fabrication |
| Aluminium Alloy | 6061 | T6 | 1.0 – 25.0 | 1000 – 2000 | Structural frames |
Key Product Features & Advantages
- High mechanical strength and load-bearing capability
- Excellent machinability for precision components
- Good fatigue resistance for structural applications
- Lightweight compared to steel alternatives
- Suitable for aerospace, transport, and heavy machinery
- Available in standard and custom dimensions
Aluminium 2014 Sheets Chemical Composition
Aluminium 2014 Sheets are corrosion resistant due to the presence of silicon, zinc, and other elements.
| Aluminium Alloy | Al (Min.) | Cu | Mn | Mg | Si | Zn | Other Elements |
|---|---|---|---|---|---|---|---|
| 2014 | 90.7% | 3.9% – 5.0% | 0.40% – 1.2% | 0.20% – 0.8% | 0.50% – 1.2% | ≤ 0.25% | ≤ 0.15% |
High Quality Aluminium 2014 Sheets Mechanical Properties
Mechanical Properties of Aluminium 2014 Sheets are listed below to assist you understand the product's durability.
| Aluminium Alloy | Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Brinell Hardness (HBW) |
|---|---|---|---|---|---|
| 2014 | O (Annealed) | 290 MPa | 145 MPa | 18% | 65 HBW |
| 2014 | T4 (Solution Heat Treated and Naturally Aged) | 430 MPa | 290 MPa | 12% | 120 HBW |
| 2014 | T6 (Solution Heat Treated and Artificially Aged) | 470 MPa | 400 MPa | 10% | 130 HBW |
Aluminium 2014 Sheets Equivalent Grade
Our dedication to excellence ensures every Aluminium 2014 Sheet meets stringent quality standards, establishing us as a trusted Aluminium 2014 Sheets Manufacturer in India.
| EN | DIN | AISI | UNS | JIS | BS | AFNOR |
|---|---|---|---|---|---|---|
| EN AW-2014 | 3.2314 | 2014 | A92014 | — | — | — |
Type of Sub-products

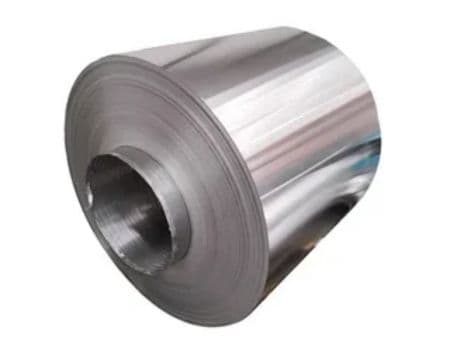

Aluminium 2014 Coils Manufacturer In India Aluminium 2014 Coils Manufacturer In India
Aluminium 2014 Coils are high strength, heat treatable aluminium coils known for their excellent mechanical properties and resistance to wear and fatigue. Widely used in aerospace, automotive, and structural applications, these coils offer superior machinability and durability under demanding conditions. Their corrosion resistance and lightweight nature make them ideal for components that require both strength and performance.

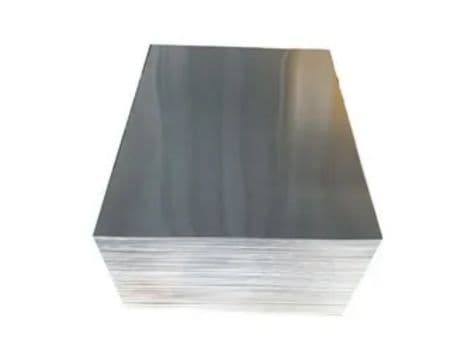

Aluminium 2014 T6 Sheet Manufacturer In India Aluminium 2014 T6 Sheet Manufacturer In India
Aluminium 2014 T6 Sheet is a high strength, heat treatable aluminium alloy sheet known for its excellent mechanical properties and corrosion resistance. With superior hardness and fatigue strength, it is widely used in aerospace, automotive, and structural applications where durability and lightweight performance are critical. The T6 temper provides enhanced strength through solution heat treatment and aging, making it ideal for fabrication, machining, and high stress components.
