| Temperature Range | 200°c, 260°c |
|---|---|
| Type of Fittings | Pfa 45 Deg Elbows, Pfa 90 Deg Elbows, Pfa Equal Tees Exporters |

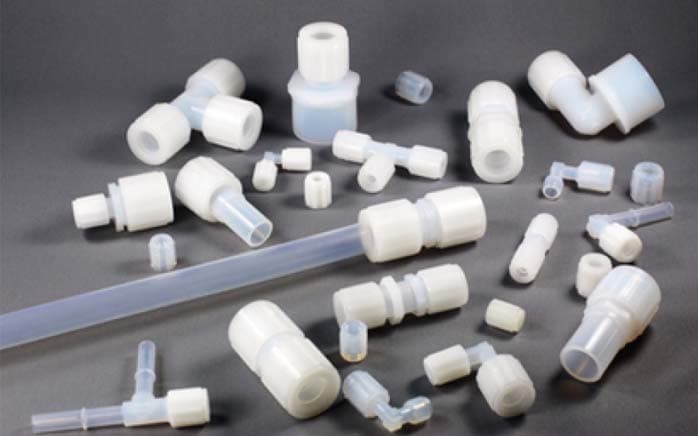

Industrial PFA Fittings Manufacturer Supply ASTM Grade Material for Process Industries
D Chel Oil and Gas has high-performance PFA fittings that are aimed at satisfying the challenging needs of the contemporary industrial fluid handling systems. They have many applications in chemical processing, pharmaceuticals, semiconductors, and high-purity applications because they are highly chemically resistant and thermally stable as well as being non-reactive on their surfaces. Being a reliable PFA fittings manufacturer, the emphasis is on precision engineering, high dimensional control, and quality stability to guarantee leak-free and prolonged service in the highly service-demanding environment.
PFA fittings are designed to resist aggressive chemicals, high temperatures, and pressure-based environments where traditional material might have collapsed. PFA has superior mechanical strength, greater clarity, and higher resistance to stress cracking compared to regular PTFE fittings, and this makes it applicable in the complex and high-purity piping systems. These fittings promote free-flow properties, reduce the chances of contamination, and ensure the integrity of a system in a broad spectrum of the industrial processes.
PFA fittings offer a trusted solution to bulk purchase, standardized specifications, and compatibility with international piping systems to industrial buyers who source using a B2B Platform. They can be easily tailored in many different sectors, meet the industry standards, and be quite long-lasting, which is why OEMs, EPC contractors, and process industries are inclined towards using fluoropolymer fittings that most effectively address their long-term operational efficiency.
PFA 45 Deg Elbow
| 25 | 16 | 24 | 33 | 4.5 | 2 | 50 | 50 | EMS45-25-16/PE |
| 40 | 16 | 38 | 48 | 5 | 2 | 80 | 80 | EMS45-40-16/PE |
| 50 | 16 | 48 | 58 | 5 | 2 | 100 | 100 | EMS45-50-16/PE |
| 65 | 16 | 63 | 75 | 6 | 2 | 130 | 130 | EMS45-65-16/PE |
| 80 | 16 | 78 | 90 | 6 | 2 | 160 | 160 | EMS45-80-16/PE |
| 100 | 16 | 98 | 111 | 6.5 | 2 | 150 | 150 | EMS45-100-16/PE |
| 125 | 16 | 123 | 137 | 7 | 1.5 | 190 | 190 | EMS45-125-16/PE |
| 150 | 16 | 148 | 165 | 8.5 | 1.5 | 225 | 225 | EMS45-150-16/PE |
| 200 | 10 | 198 | 214 | 8 | 1.5 | 300 | 300 | EMS45-200-10/PE |
| 200 | 16 | 198 | 220 | 11 | 1.5 | 300 | 300 | EMS45-200-16/PE |
| 250 | 10 | 248 | 165 | 8.5 | 1.5 | 375 | 375 | EMS45-250-10/PE |
| 250 | 16 | 248 | 272 | 12 | 1.5 | 375 | 375 | EMS45-250-16/PE |
| 300 | 10 | 298 | 316 | 9 | 1.5 | 450 | 450 | EMS45-300-10/PE |
| 300 | 16 | 298 | 324 | 13 | 1.5 | 450 | 450 | EMS45-300-16/PE |
PFA 90 Deg Elbow
| Nom. (mm) | Pmax. (bar) | I.D. (mm) | O.D. (mm) | W.T. (mm) | R= Factor x I.D. | R (mm) | L (mm) | Article number | Amount |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 16 | 24 | 33 | 4.5 | 2 | 50 | 50 | EMS90-25-16/PE | |
| 32 | 16 | 32 | 42 | 5 | 2 | 64 | 64 | EMS90-32-16/PE | |
| 40 | 16 | 38 | 48 | 5 | 2 | 80 | 80 | EMS90-40-16/PE | |
| 50 | 16 | 48 | 58 | 5 | 2 | 100 | 100 | EMS90-50-16/PE | |
| 65 | 16 | 63 | 75 | 6 | 2 | 130 | 130 | EMS90-65-16/PE | |
| 80 | 16 | 78 | 90 | 6 | 2 | 160 | 160 | EMS90-80-16/PE | |
| 100 | 16 | 98 | 111 | 6.5 | 2 | 150 | 150 | EMS90-100-16/PE | |
| 125 | 16 | 123 | 137 | 7 | 1.5 | 190 | 190 | EMS90-125-16/PE | |
| 150 | 16 | 148 | 165 | 8.5 | 1.5 | 225 | 225 | EMS90-150-16/PE | |
| 200 | 10 | 198 | 214 | 8 | 1.5 | 300 | 300 | EMS90-200-10/PE | |
| 200 | 16 | 198 | 220 | 11 | 1.5 | 300 | 300 | EMS90-200-16/PE | |
| 250 | 10 | 248 | 165 | 8.5 | 1.5 | 375 | 375 | EMS90-250-10/PE | |
| 250 | 16 | 248 | 272 | 12 | 1.5 | 375 | 375 | EMS90-250-16/PE | |
| 300 | 10 | 298 | 316 | 9 | 1.5 | 450 | 450 | EMS90-300-10/PE | |
| 300 | 16 | 298 | 324 | 13 | 1.5 | 450 | 450 | EMS90-300-16/PE |
PFA Reducers
| DN1 | DN2 | Overall Length | Wall Thickness | Pmax | Article | Amount |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (bar) | number | |
| 32 | 25 | 40 | 5 | 16 | ROS-32-25-16/PE | |
| 40 | 25 | 60 | 5 | 16 | ROS-40-25-16/PE | |
| 50 | 25 | 60 | 5 | 16 | ROS-50-25-16/PE | |
| 80 | 25 | 130 | 5 | 16 | ROS-80-25-16/PE | |
| 100 | 25 | 180 | 5 | 16 | ROS-100-25-16/PE | |
| 40 | 32 | 20 | 5 | 16 | ROS-40-32-16/PE | |
| 50 | 32 | 20 | 5 | 16 | ROS-50-32-16/PE | |
| 80 | 32 | 90 | 5 | 16 | ROS-80-32-16/PE | |
| 100 | 32 | 140 | 5 | 16 | ROS-100-32-16/PE | |
| 50 | 40 | 20 | 5 | 16 | ROS-50-40-16/PE | |
| 80 | 40 | 90 | 5 | 16 | ROS-80-40-16/PE | |
| 100 | 40 | 140 | 5 | 16 | ROS-100-40-16/PE | |
| 80 | 50 | 70 | 5 | 16 | ROS-80-50-16/PE | |
| 100 | 50 | 120 | 5 | 16 | ROS-100-50-16/PE | |
| 125 | 50 | 180 | 5 | 16 | ROS-125-50-16/PE | |
| 150 | 50 | 240 | 5 | 16 | ROS-150-50-16/PE | |
| 80 | 65 | 40 | 5 | 16 | ROS-80-65-16/PE | |
| 100 | 65 | 90 | 5 | 16 | ROS-100-65-16/PE | |
| 125 | 65 | 150 | 5 | 16 | ROS-125-65-16/PE | |
| 150 | 65 | 210 | 5 | 16 | ROS-150-65-16/PE | |
| 100 | 80 | 50 | 5 | 16 | ROS-100-80-16/PE | |
| 125 | 80 | 110 | 5 | 16 | ROS-125-80-16/PE | |
| 150 | 80 | 170 | 5 | 16 | ROS-150-80-16/PE | |
| 200 | 80 | 290 | 6 | 16 | ROS-200-80-16/PE | |
| 125 | 100 | 60 | 5 | 16 | ROS-125-100-16/PE | |
| 150 | 100 | 120 | 5 | 16 | ROS-150-100-16/PE | |
| 200 | 100 | 240 | 6 | 16 | ROS-200-100-16/PE | |
| 150 | 125 | 60 | 5 | 16 | ROS-150-125-16/PE | |
| 200 | 125 | 180 | 6 | 16 | ROS-200-125-16/PE | |
| 200 | 150 | 120 | 6 | 16 | ROS-200-150-16/PE | |
| 250 | 150 | 240 | 6 | 10 | ROS -250-150-10/PE | |
| 300 | 150 | 360 | 6 | 10 | ROS-300-150-10/PE | |
| 250 | 200 | 120 | 6 | 10 | ROS-250-200-10/PE | |
| 300 | 200 | 240 | 6 | 10 | ROS-300-200-10/PE | |
| 350 | 200 | 360 | 7 | 10 | ROS-350-200-10/PE | |
| 400 | 200 | 480 | 7 | 10 | ROS-400-200-10/PE | |
| 300 | 250 | 120 | 6 | 10 | ROS-300-250-10/PE | |
| 350 | 250 | 240 | 7 | 10 | ROS-350-250-10/PE | |
| 400 | 250 | 360 | 8 | 10 | ROS-400-250-10/PE | |
| 350 | 300 | 120 | 7 | 10 | ROS-350-300-10/PE | |
| 400 | 300 | 240 | 8 | 10 | ROS-400-300-10/PE | |
| 400 | 350 | 120 | 8 | 10 | ROS-400-350-10/PE |
PFA Couplings
| DN | L | Pmax | L2 | NPT/BSPP | Do | Di | Article | Amount |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (bar) | (mm) | (inch) | (mm) | (mm) | number | |
| 150 | 200 | 10 | 57 | 6″ NPT | 178 | 153 | CTS-24/4-200 | |
| 100 | 200 | 10 | 51 | 4″ NPT | 127 | 102 | CTS-16/4-200 | |
| 75 | 200 | 10 | 45 | 3″ NPT | 99 | 77 | CTS-12/4-200 | |
| 50 | 200 | 10 | 42 | 2″ NPT | 73 | 51 | CTS-8/4-200 | |
| 50 | 150 | 10 | 42 | 2″ NPT | 73 | 51 | CTS-8/4-150 | |
| 40 | 200 | 10 | 39 | 1 1/2″ NPT | 61 | 39 | CTS-6/4-200 | |
| 40 | 150 | 10 | 39 | 1 1/2″ NPT | 61 | 39 | CTS-6/4-150 | |
| 25 | 150 | 10 | 32 | 1″ NPT | 48 | 26 | CTS-4/4-150 | |
| 20 | 150 | 10 | 26 | 3/4″ NPT | 38 | 20 | CTS-3/4-150 | |
| 10 | 150 | 10 | 26 | 1/2″ NPT | 32 | 13 | CTS-2/4-150 | |
| 10 | 150 | 10 | 20 | 3/8″ NPT | 29 | 10 | CTS-2/4-150 | |
| 10 | 150 | 10 | 26 | 1/2″ BSPP | 32 | 13 | CTS-2/4-150 | |
| 25 | 150 | 10 | 32 | 1″ BSPP | 48 | 26 | CTS-4/4-150 |
Type of Sub-products

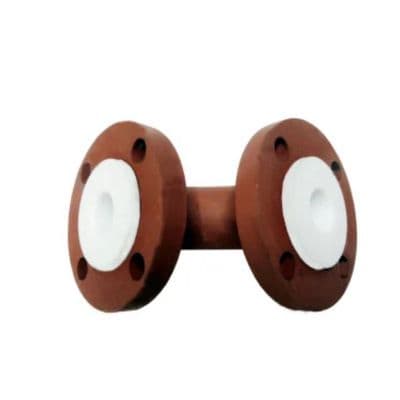

Pfa 45 Deg Elbows Pfa 45 Deg Elbows
PFA 45° elbows are high performance fittings designed for fluid and gas systems that require reliable and efficient flow control. Made from Perfluoroalkoxy (PFA) resin, these elbows offer excellent chemical resistance, high temperature stability, and durability, making them ideal for use in industries such as chemical processing, pharmaceuticals, food processing, and semiconductor manufacturing.

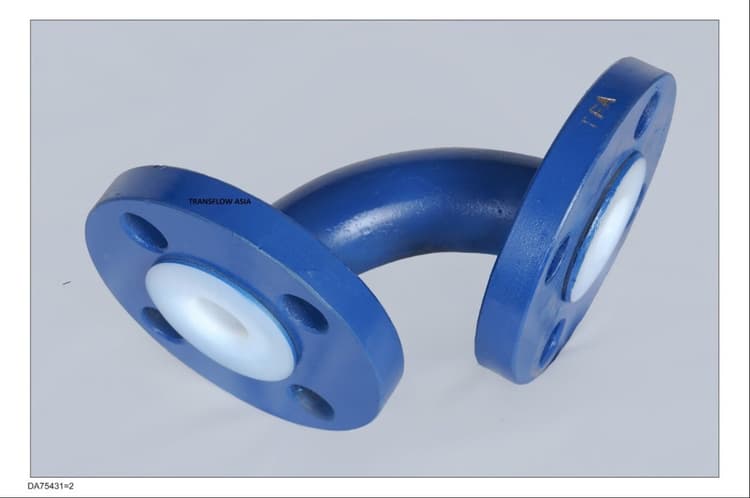

Pfa 90 Deg Elbows Pfa 90 Deg Elbows
PFA 90° elbows are essential fittings used to change the direction of flow in piping systems, especially in applications requiring high chemical resistance and temperature stability. Made from Perfluoroalkoxy (PFA) resin, these elbows are designed to withstand aggressive chemicals, solvents, and extreme temperatures, making them ideal for industries such as chemical processing, pharmaceuticals, and semiconductor manufacturing.

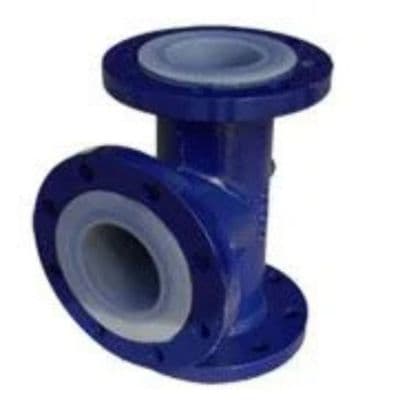

Pfa Equal Tees Pfa Equal Tees
PFA equal tees are versatile fittings designed to split or combine flow in piping systems while maintaining exceptional chemical resistance and temperature stability. Made from high quality Perfluoroalkoxy (PFA) resin, these tees are ideal for applications in industries such as chemical processing, pharmaceuticals, food processing, and semiconductor manufacturing, where safe and efficient fluid transport is critical.
