Large Diameter Pipes

$1.15 - $1.95

Minimum Order : 50 piece

Customization as per requirements

Large Diameter Pipes – Specification

Specification Details
SpecificationsAstm, Asme, Din, Nfa, Jis
Thickness4.0mm, 100mm
Pipes Size1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes
Tubes Size1/2″ Od, 8″ Od
Length:Cut Length, Fix Length, Single Random, Double Random, Required Length
EndPlain End, Beveled End, Threaded

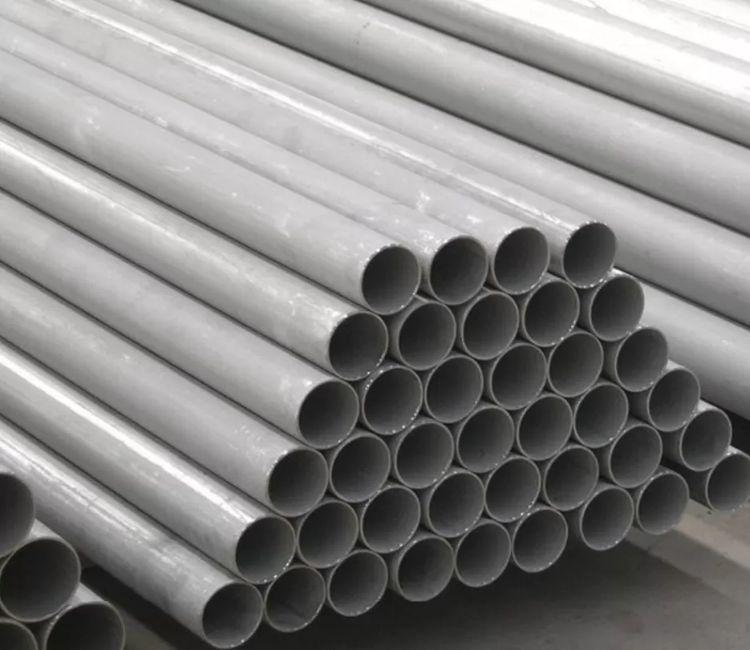

Large Diameter Pipes

Nova Steel Corporation is a reputable brand in the industrial steel division with high quality large-diameter pipes that have been developed to fulfil structural and fluid transmission demands. Applications in the oil and gas industry, water pipelines, infrastructure and heavy engineering where strength, durability and dimensional accuracy are vital would be one of the main applications of these pipes. Being a trustworthy large-diameter pipes manufacturer, the interest is centred on the stable quality, international standard and reliability in providing large-scale projects.

The piping solutions with large diameters are usually made with strong material grades, such as St52 pipes with high material strengths, strong loads and resistance to stress. Accompanied by pipes, related products such as bars are significant in fabrication, support structures and personalised industrial uses. The advanced manufacturing methods and strict quality control guarantee maximum functioning even when under pressure and in severe operating and working conditions.

In the modern digital age of procurement, industrial purchasers are becoming more and more dependent on B2B portals as a method of sourcing reliable piping solutions in an efficient manner. The sites allow easy communication between the manufacturers and the international consumers, achieved through transparency, quicker response, and the ease of transactions. High-diameter pipes procured under the structured B2B channel ensure that industries manage to simplify the purchasing process and still receive quality and traceability of procured products, and deliver on time to systematically critically requiring projects.



Large Diameter Pipes Dimension

NOMINAL PIPE SIZE
OUTSIDE DIAMETER
NOMINAL WALL THICKNESS
8″
219.1
3.76
6.35
7.04
8.18
8.18
10.31
12.7
12.7
15.09
18.26
20.62
23.01
22.23
10″
273
4.19
6.35
7.8
9.27
9.27
12.7
12.7
15.09
18.26
21.44
25.4
28.58
25.4
12″
323.8
4.57
6.35
8.38
9.53
10.31
14.27
12.7
17.48
21.44
25.4
28.58
33.32
25.4
14″
355.6
6.35
7.92
9.53
9.53
11.13
15.09
12.7
19.05
23.83
27.79
31.75
35.71
_
16″
406.4
6.35
7.92
9.53
9.53
12.7
16.66
12.7
21.44
26.19
30.96
36.53
40.49
_
18″
457.2
6.35
7.92
11.13
9.53
14.27
19.05
12.7
23.83
29.36
34.93
39.67
45.24
_
20″
508
6.35
9.53
12.7
9.53
15.09
20.62
12.7
26.19
32.54
38.1
44.45
50.01
_
22″
558.8
6.35
9.53
12.7
9.53
22.23
12.7
28.58
34.93
41.28
47.63
53.98
_
24″
609.6
6.35
9.53
14.27
9.53
17.48
24.61
12.7
30.96
38.89
46.02
52.37
59.54
_
26″
660.4
7.92
12.7
_
9.53
_
_
12.7
_
_
_
_
_
_
28″
711.2
7.92
12.7
15.88
9.53
_
_
12.7
_
_
_
_
_
_
30″
762
7.92
12.7
15.88
9.53
_
_
12.7
_
_
_
_
_
_
32″
812.8
7.92
12.7
15.88
9.53
17.48
_
12.7
_
JIS G3452 ASME B36.10M JIS G3454 DIN2448 JIS G3455 DIN2458 JIS G3457
_
34″
863.6
7.92
12.7
15.88
9.53
17.48
_
12.7
_
_
36″
914.4
7.92
12.7
15.88
9.53
19.05
_
12.7
_
_
38″
965.2
_
_
_
9.53
_
_
12.7
_
_
40″
1016
_
_
_
9.53
_
_
12.7
_
_
42″
1066.8
_
_
_
9.53
_
_
12.7
_
_
44″
1117.6
_
_
_
9.53
_
_
12.7
_
_
_
_
_
_
46″
1168.4
_
_
_
9.53
_
_
12.7
_
_
_
_
_
_
48″
1219.2
_
_
_
9.53
_
_
12.7
_
_
_
_
_
_

Large Diameter Pipe Coating Standard:

Large Diameter Pipe Coating TypeLarge Diameter Pipe Coating LayerLarge Diameter Pipe Coating thickness
Three layers polyetheneInside layer: epoxy (Green)2.0 -4.5mm
Mid-layer: adhesive (White)
Outside layer: polyethene (Black)
Two layers polyetheneInside layer: adhesive2.0 -4.5mm
Outside layer: polythene
EpoxyEpoxy200-400um
Two layers epoxyInside layer: epoxy (Green)400-800um
Outside layer: intensity epoxy (sage green)
Three layers polyetheneInside layer: epoxy (Green)2.5 -3mm
Mid-layer: adhesive (White)
Outside layer: polypropylene (White)





Type of Sub-products

  • Lsaw Large Diameter Pipe

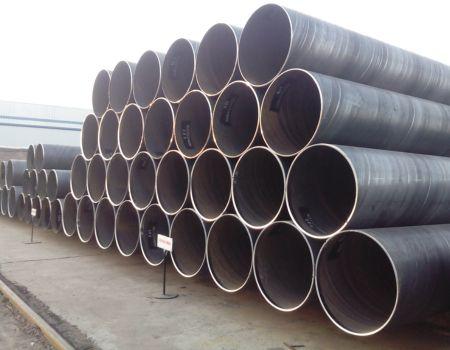

    Lsaw Large Diameter Pipe

    Longitudinally Submerged Arc Welded (LSAW) pipes are made for high pressure and structural applications. Known for their straight weld seam and high strength, they’re used in oil & gas pipelines, water transmission, and structural foundations.

  • Erw Large Diameter Pipe

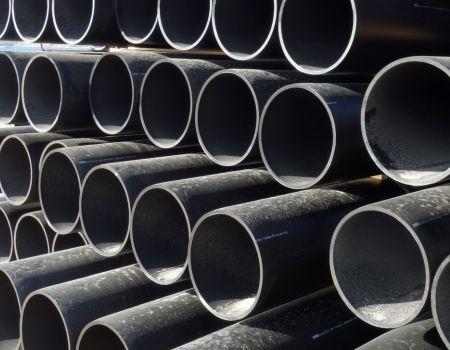

    Erw Large Diameter Pipe

    Electric Resistance Welded pipes offer uniform wall thickness and are suitable for low to medium pressure applications. Commonly used in water lines, construction, and agricultural systems due to cost effectiveness and reliable performance.

Frequently Asked Questions

What are Large Diameter Pipes?

Large diameter steel pipe normally refers to the pipe diameter above 16 inch and up to 100 inch, it plays an important role in oil and gas transmissions. For long distance pipeline projects large diameter pipe could carry more liquid and with big flow rate.

What size is a Large Diameter Pipes?

ERW pipes are usually designed in sizes of a maximum of 16 inches diameters. LSAW and SSAW pipes are restricted to sizes from 20 inches to 100 inches. A seamless large diameter pipes diameter is not more than 16 or 20 inches.

How to choose Large Diameter Pipes thickness?

The Large Diameter Pipes thickness depends on a variety of factors, including internal pressure, external forces, fluid or gas properties, material strength, pipe diameter, and safety regulations.
