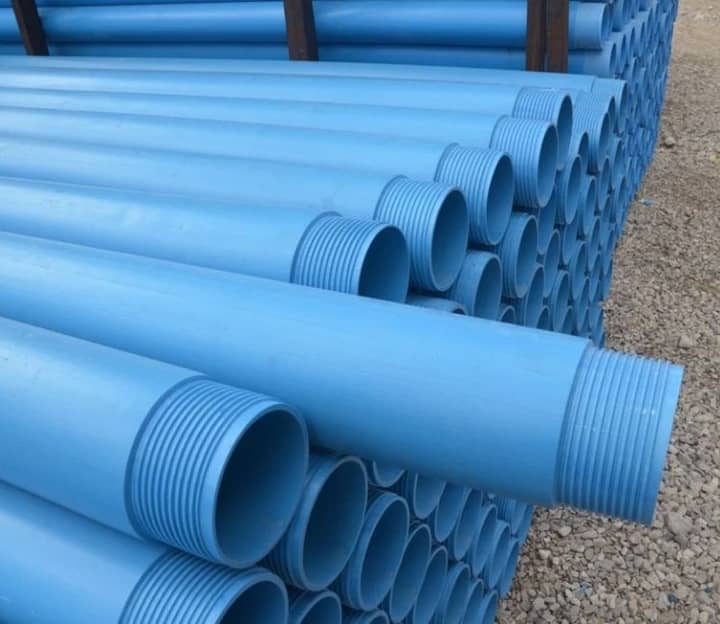

Upvc Casing Pipes

$0.65 - $0.95

Minimum Order : 350

Customization as per requirements


Upvc Casing Pipes – Specification

Specification Details
SpecificationsAstm, Asme, Din, Nfa, Jis
Thickness4.0mm, 100mm
Pipes Size1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes
Tubes Size1/2″ Od, 8″ Od
Length:Cut Length, Fix Length, Single Random, Double Random
EndPlain End, Beveled End, Threaded

UPVC Casing Pipes Manufacturer in India

Shrikant Steel Centre is a reliable UPVC casing pipes manufacturer. We manufacture uPVC casing pipes using high quality virgin PVC resin mixed with stabilizers and UV resistant additives to ensure long life and strength. Our production process uses modern extrusion machines that shape the pipes, followed by cutting and threading done with automated systems to maintain accuracy. These pipes meet IS 12818 standards and are made in ISO 9001 certified facilities. We test each pipe batch for pressure strength, shape, thread fit, and overall quality before packaging.

Our team checks everything carefully to make sure the pipes work well in deep borewells and last for many years without problems. To ensure every order reaches safely, we pack the pipes with rubber caps, edge protectors, and waterproof wrapping. Pipes are bundled tightly and loaded on wooden pallets for damage free transport. We also include batch numbers and quality certificates so that customers can track the product’s details easily. As a responsible manufacturer, we reduce waste by reusing scrap for noncritical parts and use energy saving machines to lower our environmental impact. These pipes are not only strong and reliable but also made with care to deliver long term value in water systems across agriculture, housing, and industry.


Type of Sub-products

  • Upvc Plain Casing Pipe
    Upvc Plain Casing Pipe

    Upvc Plain Casing Pipe

    Non slotted pipe used in borewells for casing and protection.

  • Upvc Slotted Casing Pipe
    Upvc Slotted Casing Pipe

    Upvc Slotted Casing Pipe

    Perforated pipe designed for water inflow in aquifer zones.


Frequently Asked Questions

What is the use of uPVC casing pipe?

The primary use of uPVC casing pipes is to protect borewell structures and support groundwater extraction systems. These pipes are installed as a lining inside drilled boreholes to prevent the collapse of soil or rock walls and to keep sand, silt and debris out of the water column. This ensures clean water flow and stable operation of submersible pumps. uPVC casing pipes are widely used in agricultural irrigation, domestic wells and industrial water supply systems due to their corrosion resistance, non toxic nature and long service life.

What are the different types of PVC casing pipes?

PVC casing pipes are classified into three main types based on depth and pressure handling. CS (Casing Shallow) is used for borewells up to 80 meters and has a lighter wall thickness suitable for shallow groundwater levels. CM (Casing Medium) is ideal for depths between 80 and 150 meters and provides moderate strength and durability for agricultural or domestic borewells. CD (Casing Deep) is designed for borewells deeper than 150 meters, with thick walls and high load bearing capacity to withstand deep installation and high static pressure. These types help protect the borewell from collapse and keep the water column clean.

What is the purpose of pipe casing?

The purpose of pipe casing is to stabilize the borewell or drilled hole, preventing its walls from collapsing and protecting the water source from contamination. In groundwater systems, casing pipes line the borehole and act as a barrier against sand, silt and debris entering the water stream. They also support the installation of submersible pumps and allow for safe and efficient water extraction. Casing pipes improve the structural integrity of the borewell, ensure long term operation and help maintain water quality by isolating different soil or rock layers.
