| Standard | Astm A580, A313, A555, A493 / Asme Sa580, Sa313, Ams 5514, Sa555, Sa493 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |
Welded Wire Mesh
Bhansali Wire Mesh is a leading Welded Wire Mesh Manufacturers that offers high-quality mesh products that are characterized by their strength, durability, and flexibility. Welded wire mesh is created through the welding of crossing wires in specific intervals of time to create a tough, homogenous mesh. It finds applications in construction, fencing, concrete reinforcement, industrial partitions, and safety applications because of its ability to offer structural support and security, and it is lightweight and easy to manipulate.
The welded wire mesh has been offered in a range of sizes, wire diameters, and coatings to meet the needs of specific projects. These mesh products are very desirable in a B2B marketplace due to the quality in terms of consistency, easy installation, and long service life. Their high load-bearing and corrosion-resistantproperties make them perfect for use in commercial and industrial works, giving them a sure performance in harsh environments. We supply Stainless Steel Wire Mesh, known for its durability, corrosion resistance, and precise filtration.
Welded Wire Mesh – Standard Weight Chart
| Wire Diameter (mm) | Mesh Size (mm × mm) | Weight per Meter (kg) | Total Weight per 30 m Roll (kg) |
|---|---|---|---|
| 2.0 mm | 50 × 50 | 1.25 | 37.5 |
| 2.5 mm | 50 × 50 | 1.95 | 58.5 |
| 3.0 mm | 75 × 75 | 2.10 | 63.0 |
| 3.5 mm | 75 × 75 | 2.85 | 85.5 |
| 4.0 mm | 100 × 100 | 3.20 | 96.0 |
| 5.0 mm | 100 × 100 | 5.00 | 150.0 |
Welded Wire Mesh finds extensive application in the work of construction, reinforcement in the construction of concrete, fencing, industrial enclosures, and infrastructure projects because of its toughness and even distribution of the load. An accurate weight chart assists the engineers and the procurement teams in estimating the material loading, transportation needs, and structural conformity. Proper weight information also contributes to the cost calculation, safety management, and project specification compliance, which results in efficient and valid installation.
Type of Sub-products

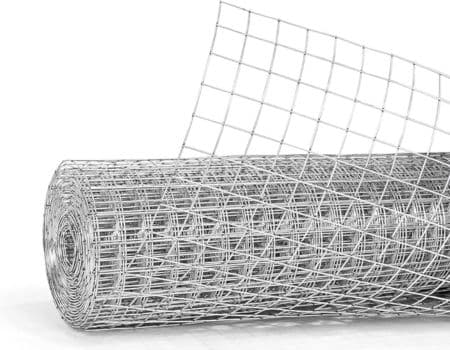

Galvanized Welded Wire Mesh Galvanized Welded Wire Mesh
Coated for corrosion protection, ideal for fencing, cages, and partitioning.

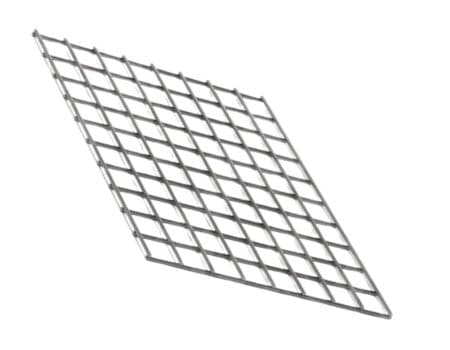

Stainless Steel Welded Wire Mesh Stainless Steel Welded Wire Mesh
High strength and chemical resistance, suited for food, pharmaceutical, and marine applications.
