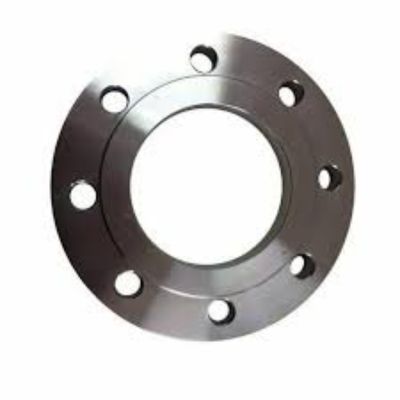

Alloy Steel F22 Flanges

Untitled_design_ _2025 01 08t124738.492.jpg

<div><div>
<span style="color: rgb(85, 85, 85); background-color: transparent; box-shadow: none;"><b>Alloy Steel F22 Flanges</b> are known industrial products that are made of the <i>low-alloy chromium-molybdenum steel at an approximate percentage of 2.25% Chromium and 1% Molybdenum</i>. This unique chemical formula is what adds <i>mechanical strength, thermal stability, creep, and corrosion resistance</i>, which makes such flanges a good solution in high-pressure and high-temperature systems. Alloy Steel F22 Flanges are said to be the best to use in demanding industrial conditions because they have better metallurgical properties which make them reliable and durable.</span><div style="background-color: transparent; box-shadow: none;"></div><br class="Apple-interchange-newline" style="background-color: transparent; box-shadow: none; color: black;">

</div><p><span style="letter-spacing: 0.4px;">The piping systems in the <i>oil and gas refining sector, power generation, petrochemicals, fertilizers</i>, and <i>chemical processing</i> also have the piping systems on constant exposure to steam, hot gases, and aggressive chemicals. In this case, ordinary carbon steel products can fail because of oxidation or thermal expansion, but F22 Alloy Steel Flanges has exemplary performance as it can withstand thermal cycling, alternating pressure, and corrosive liquids. They have high weldability, hardness, and creep resistance, which guarantee long service life and prevent leakage or structural failure within the critical systems.</span></p></div><div><br></div><div>These flanges come in various types as manufactured by manufacturers; these include <i>Weld Neck (WN), Slip-On (SORF), Socket Weld (SW), Blind (BL), Threaded (TH) and Lap Joint (LJ). </i>Through these configurations, engineers and piping designers are able to select appropriate flange solutions based on the pipeline design, sealing requirements, the operating pressures and installation conditions. Moreover, these flanges are produced based on the international requirements like ASTM A182, ASME B16.5, ASME B16.47, DIN, and EN to comply with the global requirements and dimensional accuracy of the product across various industries and projects.
</div><div><br></div><div>The Alloy Steel F22 has one of the greatest benefits where it is resistant to corrosion due to sulfidation, oxidation, and stress-corrosion cracking despite being exposed to <b>high temperatures of 600°C.</b> As a consequence of this they find wide application in boilers, heat exchangers, steam piping, refinery tubing and turbine pipelines. These features will enhance the efficiency of operations but minimize down time and maintenance expenses which is very welcome in the big industrial plants. To conclude, Alloy Steel F22&nbsp;</div><div>Flanges are a high category of <i>piping products that offers strength, durability, and resistance to corrosion</i>, and hence their use in life-threatening applications is common in major parts of the world.</div><div><br></div><div><div>
<h2 style="background-color: transparent; box-shadow: none; color: black;"><strong data-start="2920" data-end="2953" style="background-color: transparent; box-shadow: none; color: black;">Technical Specification Table</strong></h2>
<div class="TyagGW_tableContainer" style="background-color: transparent; box-shadow: none; color: black;"><div tabindex="-1" class="group TyagGW_tableWrapper flex flex-col-reverse w-fit" style="background-color: transparent; box-shadow: none; color: black;"><div class="custom-table-wrapper" style="overflow-x: auto; margin-bottom: 20px; font-size: 13px;"><table data-start="2955" data-end="3444" style="border-collapse: collapse; width: 100%; border-top: none; border-right: none; border-bottom: 5px solid rgb(0, 74, 173); border-left: none; border-image: initial; margin-bottom: 20px;"><thead data-start="2955" data-end="2991"><tr data-start="2955" data-end="2991" style="border: none;"><th data-start="2955" data-end="2970" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;"><span data-start="2957" data-end="2969" style="">Property</span></th><th data-start="2970" data-end="2991" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;"><span data-start="2972" data-end="2989" style="">Specification</span></th></tr></thead><tbody data-start="3002" data-end="3444"><tr data-start="3002" data-end="3052" style="border: none;"><td data-start="3002" data-end="3019" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Material Grade</td><td data-start="3019" data-end="3052" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;"><span data-start="3021" data-end="3050">ASTM A182 Alloy Steel F22</span></td></tr><tr data-start="3053" data-end="3128" style="border: none; background: rgb(248, 251, 255);"><td data-start="3053" data-end="3076" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Chemical Composition</td><td data-start="3076" data-end="3128" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Cr 2.0–2.5%, Mo 0.9–1.1%, C ≤0.10%, Mn, Si, P, S</td></tr><tr data-start="3129" data-end="3169" style="border: none;"><td data-start="3129" data-end="3142" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Size Range</td><td data-start="3142" data-end="3169" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">½” to 48” (DN15–DN1200)</td></tr><tr data-start="3170" data-end="3208" style="border: none; background: rgb(248, 251, 255);"><td data-start="3170" data-end="3187" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Pressure Class</td><td data-start="3187" data-end="3208" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Class 150 to 2500</td></tr><tr data-start="3209" data-end="3249" style="border: none;"><td data-start="3209" data-end="3234" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Temperature Resistance</td><td data-start="3234" data-end="3249" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Up to 600°C</td></tr><tr data-start="3250" data-end="3295" style="border: none; background: rgb(248, 251, 255);"><td data-start="3250" data-end="3262" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Standards</td><td data-start="3262" data-end="3295" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">ASME, ANSI, ASTM, DIN, EN, BS</td></tr><tr data-start="3296" data-end="3345" style="border: none;"><td data-start="3296" data-end="3320" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Manufacturing Process</td><td data-start="3320" data-end="3345" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Forged &amp; Heat Treated</td></tr><tr data-start="3346" data-end="3387" style="border: none; background: rgb(248, 251, 255);"><td data-start="3346" data-end="3354" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Types</td><td data-start="3354" data-end="3387" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">WN, SW, SORF, BL, TH, LJ, LWN</td></tr><tr data-start="3388" data-end="3444" style="border: none;"><td data-start="3388" data-end="3405" data-col-size="sm" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Surface Finish</td><td data-start="3405" data-end="3444" data-col-size="md" style="border: 1px solid rgb(0, 74, 173); padding: 2px; text-align: center; min-width: 45px; color: rgb(77, 77, 77); background-color: transparent;">Oil-Dipped / Anti-Rust / Phosphated</td></tr></tbody></table></div></div></div></div></div><div>
</div><div>
</div>

F22 Flanges Are Available In Various Types, Including Slip On, Weld Neck, And Blind Flanges, And Are Designed To Meet International Standards Like Astm A182.

Alloy Steel F22 Flanges Manufacturer In India

Flanges

Alloy steel flanges

Alloy steel f22 flanges

Alloy Steel F22 Flanges Supplier In India

favicon-nitech.png-logo

nitech-stainless-inc


alloy-steel-f22-flanges

Nitech Stainless Inc is a leading Alloy Steel F22 Flanges Manufacturer in India. Alloy Steel F22 flanges are made from a chromium-molybdenum alloy steel designed to perform in high-temperature, high-pressure environments. The "F22" grade, commonly associated with ASTM A182, is known for its excellent strength, resistance to oxidation, and thermal stability, making it ideal for use in industries such as power generation, petrochemical, and oil and gas. These flanges are typically used in systems that operate at elevated temperatures, where resistance to thermal expansion, creep, and corrosion is critical for maintaining the integrity of the piping system.
F22 flanges are forged to enhance their mechanical properties, providing superior resistance to cracking and deformation under high stress and thermal conditions. These flanges are available in various configurations, including weld neck, slip-on, and blind, to suit different piping system needs. Their ability to withstand high pressures and temperatures while maintaining structural integrity makes Alloy Steel F22 flanges essential for applications like steam lines, pressure vessels, and high-temperature piping systems. F22 flanges ensure secure, leak-proof connections, contributing to the reliability and safety of industrial systems operating in extreme environments.
