1060 Aluminium Fin Tube High Purity Aluminium Excellent Formability And Lightweight Fin Integration Manufacturer In India
| Fin Thickness | Minimum 0.8mm, Maximum 3 Mm |
|---|---|
| Fin Height | 1.5″(38 Mm), Minimum 0.25″(6.35 Mm) |
| Fin Density : | Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Inconel, High Nickle & Incolloy |
| Tubes Diameter | 220mm Od Maximum, 30mm Od Minimum |
1060 Aluminium Fin Tube Suitable for Low Temperature Heat Exchange and Corrosion Sensitive Environments
Timex Metals is a great 1060 Aluminium Fin Tube Manufacturer which produces the best quality 1060 aluminium fin tubes. These aluminium fin tubes are highly utilised in heat exchangers, HVAC systems, and industrial cooling processes. Our 1060 Aluminium Fin Tubes are produced using high-end aluminium that has high thermal conductivity, corrosion resistance, and can withstand long-term performance. These fin tubes are designed to satisfy the international standards and are offered in different sizes, thicknesses, and fin types that will give a tailored solution to any industrial need. With the focus on precision manufacturing and strict quality inspections, Timex Metals ensures customers get products that improve efficiency and reduce the need to maintain the product.
1060 Aluminium Fin Tube – Material & Specification Table
| Fin Material | Fin Grade | Base Tube Material | Base Tube Grade | Tube OD (mm) | Wall Thickness (mm) | Fin Height (mm) | Fin Pitch (FPI) | Typical Service Temp (°C) | Approx. Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| Aluminium | AA1060 | Carbon Steel | ASTM A179 | 25.4 | 2.11 | 9 | 11 | 240 | 1.95 |
| Aluminium | AA1060 | Carbon Steel | ASTM A192 | 31.75 | 2.77 | 11 | 10 | 240 | 3.00 |
| Aluminium | AA1060 | Carbon Steel | ASTM A106 Gr B | 38.10 | 3.05 | 13 | 9 | 250 | 4.10 |
| Aluminium | AA1060 | Stainless Steel | ASTM A213 TP304 | 25.4 | 2.11 | 9 | 11 | 260 | 2.25 |
| Aluminium | AA1060 | Stainless Steel | ASTM A213 TP316 | 31.75 | 2.77 | 11 | 10 | 260 | 3.35 |
| Aluminium | AA1060 | Alloy Steel | ASTM A213 T11 | 38.10 | 3.40 | 14 | 9 | 280 | 4.85 |
- Application-Driven Usage: Air-cooled heat exchangers, ventilation systems, radiators, and low- to medium-temperature cooling applications with such conditions as the need of lightweight construction and great thermal responsiveness use 1060 Aluminium Fin Tubes. They are also composed of aluminium which dissipates heat faster than most of the ferrous materials hence can be utilized in energy efficient cooling systems.
- Material Behaviour: Manufacturing is also associated with quality The aluminium 1060 is at least 99.6 percent aluminium, which is very formable and uniform to the surface. This gives the ability to form fine fins with constant pitch and height, which has constant airflow patterns, and theoretical predictability of the thermal performance throughout the whole length of the tube.
- Grade Characteristics- Aluminium 1060: Being a commercially pure grade of aluminium, 1060 has high thermal conductivity, sufficient corrosion in atmospheric conditions, and high compatibility with mechanical finning processes. It is particularly appropriate when the main focus is not on weldability but the fin integrity and the heat transfer efficiency is important.
- Other Benefits of Performance: These 1060 Aluminium Fin Tubes are resistant to oxidation are easy to handle and to install as they are light in weight and work well even in a continuous mode. Their smooth surface prevents the dust sticking and enhances easy cleaning and maintenance in the air-handling and cooling systems.
Client Project Report of 1060 Aluminium Fin Tube
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| 1060 Aluminium Fin Tubes for Air Cooling Applications | 171 Pieces | Hosur |
| 1060 Aluminium Fin Tubes for Heat Exchanger Coils | 208 Pieces | Faridabad |
| 1060 Aluminium Fin Tubes for Industrial Ventilation | 163 Pieces | Bhopal |
| 1060 Aluminium Fin Tubes for Process Cooling Equipment | 196 Pieces | Vapi |
They are 1060 aluminium fin tubes, which are applied where thermal conductivity needs to be high, the weight needs to be low, and formability is needed to achieve good heat dissipation. The alloy purity is beneficial in providing a reliable operation under low-to-middle temperature cooling conditions and also retains resistance to corrosion under dry and slightly corrosive conditions. The height and diameter of the tube are chosen depending on the velocity of the airflow and available space. In the course of system evaluation, comparison between Integrally Finned Tubes is common practice in order to establish the most efficient mode of fin bonding to ensure the long run thermal stability and maintenance provisions.
Type of Sub-products

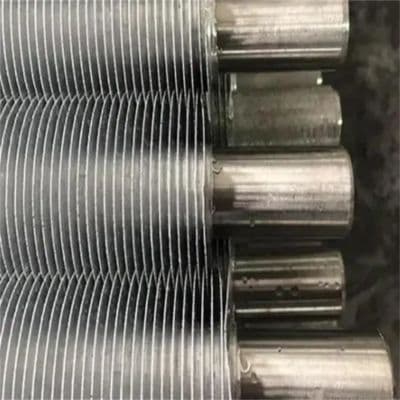

Spiral 1060 Aluminium Fin Tube Spiral 1060 Aluminium Fin Tube
This design features spiral wound fins around the tube, offering enhanced heat transfer and a higher rate of airflow, making it suitable for high performance cooling systems.
