| Fin Thickness | Minimum 0.8mm, Maximum 3 Mm |
|---|---|
| Fin Height | Minimum 0.25″(6.35 Mm), 1.5″(38 Mm) |
| Fin Density : | Maximum 287 Fins Per Meter, Minimum 46 Fins Per Meter |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Inconel, High Nickle & Incolloy |
| Tubes Diameter | 220mm Od Maximum, 30mm Od Minimum |

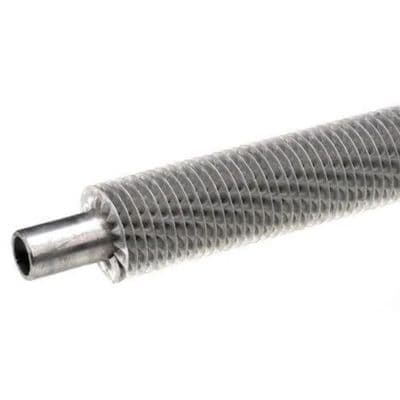

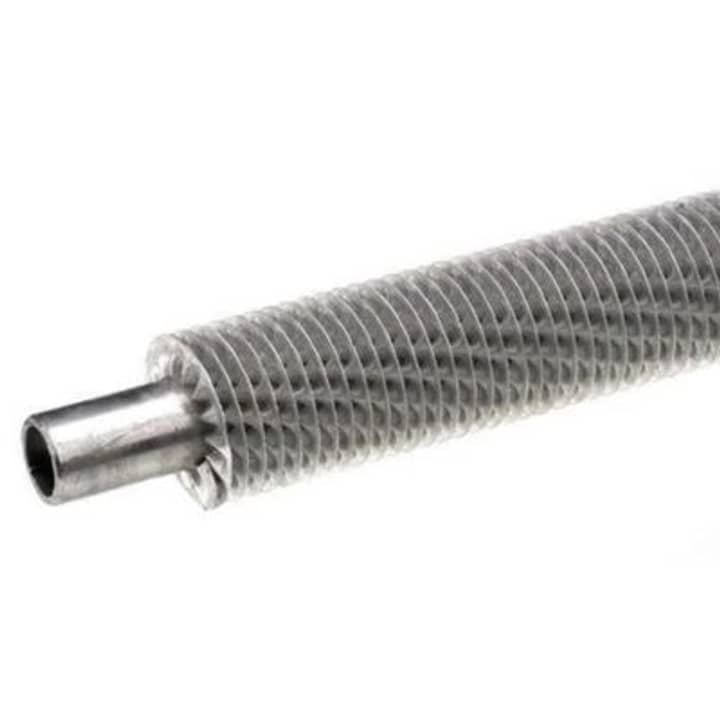

3003 Aluminium Fin Tube
Timex Metals is a reputed 3003 Aluminium Fin Tube Manufacturer, which is a high-performance tube used in applications where high efficiency of heat transfer is needed in several industries. These fin tubes are produced with high-grade aluminium alloy 3003, which has superior resistance to corrosion and a high thermal conductivity. These fin tubes are engineered to provide the best performance in heat exchangers, air coolers, and condensers, and are known to provide a higher level of durability and reliability even in the harsh thermal conditions. We are a manufacturer with high standards that distinguish us and make us a company of choice among our clients who need reliable and durable solutions.
| Fin Material | Fin Grade | Base Tube Material | Base Tube Grade | Tube OD (mm) | Wall Thickness (mm) | Fin Height (mm) | Fin Pitch (FPI) | Typical Service Temp (°C) | Approx. Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| Aluminium | AA3003 | Carbon Steel | ASTM A179 | 25.4 | 2.11 | 10 | 10 | 250 | 2.05 |
| Aluminium | AA3003 | Carbon Steel | ASTM A192 | 31.75 | 2.77 | 12 | 9 | 250 | 3.10 |
| Aluminium | AA3003 | Carbon Steel | ASTM A106 Gr B | 38.10 | 3.05 | 14 | 8 | 260 | 4.25 |
| Aluminium | AA3003 | Stainless Steel | ASTM A213 TP304 | 25.4 | 2.11 | 10 | 10 | 280 | 2.35 |
| Aluminium | AA3003 | Stainless Steel | ASTM A213 TP316 | 31.75 | 2.77 | 12 | 9 | 280 | 3.45 |
| Aluminium | AA3003 | Alloy Steel | ASTM A213 T11 | 38.10 | 3.40 | 15 | 8 | 300 | 4.95 |
3003 aluminium fin tubes are basically thermal conductor because of their good thermal conductivity, corrosion resistance and because they can be easily fin-formed. The alloy's content of manganese improves the strength of the alloy as compared to pure aluminium while still maintaining good workability, which, in turn, helps in keeping the fin geometry consistent over long lengths. While making a selection on a B2B portal, engineers compare the specifications of 3003 aluminium fin tube with those of 6061 Aluminium Fin Tube in order to comprehend the variance in mechanical strength, temperature tolerance, and the degree of harshness of the operating environment that the product can be used in. Having accurate information about material grade, fin dimensions, and weight per meter gives the users the opportunity to make correct structural load calculations and select a configuration that matches the actual working conditions instead of making generic assumptions.
Type of Sub-products

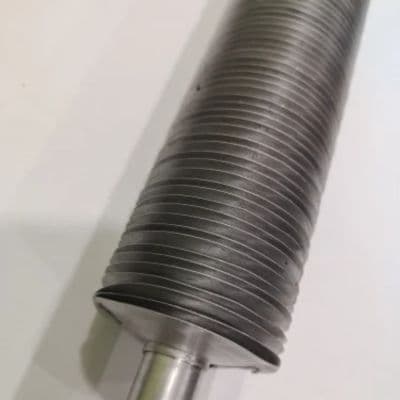

L 3003 Aluminium Fin Tube L 3003 Aluminium Fin Tube
This type of fin tube features fins shaped like the letter "L," offering excellent heat transfer and enhanced durability, making it suitable for compact heat exchanger applications.
