| Size range | 1000 Mm X 2000mm, 1220mm X 2440mm, 4' X 8', 1250mm X 2500mm, 1500mm X 3000mm To 6000mm, 2000mm X 4000mm To 6000mm |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet |

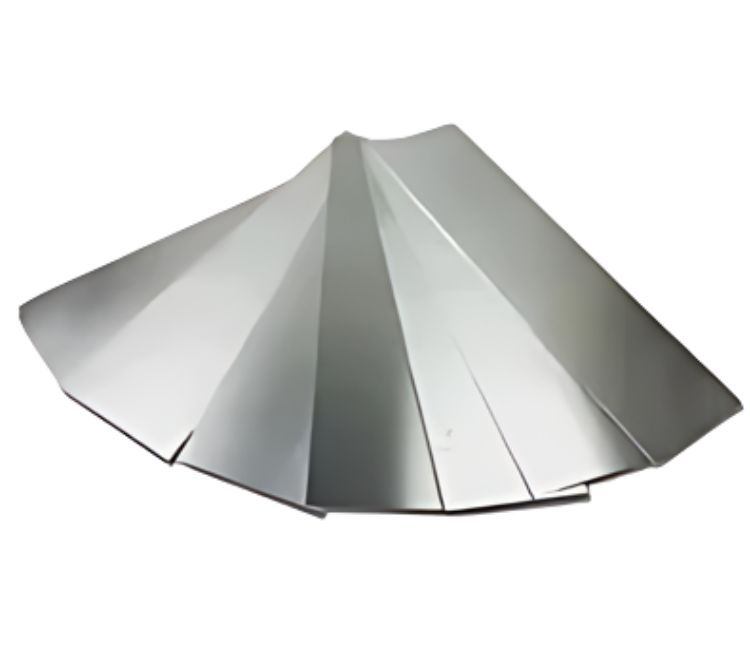

Aluminium Alloy 2024 Sheet Manufacturer in India Offering ASTM B209 Standard 2024 Sheets with High Fatigue Resistance
Material & Grades of Aluminium Alloys Sheet 2024
| Material | Grade / Standard | Temper | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Aluminium Alloy | 2024 | T3 / T351 / T6 | 0.8 – 25.0 | 1000 – 2000 | Aerospace structures |
| Aluminium Alloy | 2014 | T6 / T651 | 1.0 – 40.0 | 1000 – 2000 | Heavy engineering |
| Aluminium Alloy | 1100 | H14 / H24 | 0.5 – 10.0 | 1000 – 2000 | Cladding, insulation |
| Aluminium Alloy | 3003 | H12 / H14 | 0.5 – 12.0 | 1000 – 2000 | General fabrication |
| Aluminium Alloy | 6061 | T6 | 1.0 – 25.0 | 1000 – 2000 | Structural frames |
Key Product Features & Advantages
- High tensile and fatigue strength
- Excellent machinability for precision parts
- Lightweight with superior structural performance
- Suitable for aerospace and high-stress applications
- Available in standard and custom sizes
- Long service life with consistent performance
Aluminium 2024 Sheets Chemical Composition
Aluminium 2024 Sheets are corrosion resistant due to the presence of silicon, zinc, and other elements.
Aluminium 2024 Sheets Chemical Composition Aluminium Alloy Al (Min.) Cu Mn Mg Si Zn Other Elements 2024 90.7 - 94.7 3.8 - 4.9 1.2 - 1.8 1.2 - 1.8 0.50 (Max.) 0.25 (Max.) 0.05 (Max.) (each), 0.15 (Max.) (total)
Aluminium 2024 Sheets are corrosion resistant due to the presence of silicon, zinc, and other elements.
| Aluminium Alloy | Al (Min.) | Cu | Mn | Mg | Si | Zn | Other Elements |
|---|---|---|---|---|---|---|---|
| 2024 | 90.7 - 94.7 | 3.8 - 4.9 | 1.2 - 1.8 | 1.2 - 1.8 | 0.50 (Max.) | 0.25 (Max.) | 0.05 (Max.) (each), 0.15 (Max.) (total) |
High Quality Aluminium 2024 Sheets Mechanical Properties
Mechanical Properties of Aluminium 2024 Sheets are listed below to assist you understand the product's durability.
Aluminium 2024 Sheets Mechanical Properties Aluminium Alloy Temper Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Brinell Hardness (HBW) 2024 T3 470 - 500 325 - 420 3 - 10 120 - 140 2024 T351 470 - 505 340 - 440 3 - 10 120 - 140
Mechanical Properties of Aluminium 2024 Sheets are listed below to assist you understand the product's durability.
| Aluminium Alloy | Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Brinell Hardness (HBW) |
|---|---|---|---|---|---|
| 2024 | T3 | 470 - 500 | 325 - 420 | 3 - 10 | 120 - 140 |
| 2024 | T351 | 470 - 505 | 340 - 440 | 3 - 10 | 120 - 140 |
Aluminium 2024 Sheets Equivalent Grade
Our strict quality standards ensure every Aluminium 2024 Sheet offers high strength and good fatigue resistance, making us a trusted Aluminium 2024 Sheets Manufacturer in India.
Aluminium 2024 Sheets Equivalent Grade EN AA (ASTM) UNS ISO JIS GB BS EN AW-2024 AA 2024 A92024 AlCu4Mg1 A2024 2A43 HE9
Our strict quality standards ensure every Aluminium 2024 Sheet offers high strength and good fatigue resistance, making us a trusted Aluminium 2024 Sheets Manufacturer in India.
| EN | AA (ASTM) | UNS | ISO | JIS | GB | BS |
|---|---|---|---|---|---|---|
| EN AW-2024 | AA 2024 | A92024 | AlCu4Mg1 | A2024 | 2A43 | HE9 |
Type of Sub-products
Aluminium 2024 Plates Manufacturer In India Aluminium 2024 Plates Manufacturer In India
Aluminium 2024 Plates are high strength, heat treatable plates known for their excellent fatigue resistance, toughness, and lightweight properties. Widely used in aerospace, automotive, and structural applications, these plates offer superior machinability and durability, making them ideal for manufacturing aircraft components, vehicle parts, and industrial machinery.

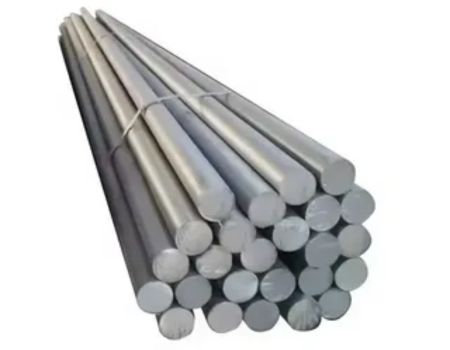

Aluminium Bar Manufacturer In India Aluminium Bar Manufacturer In India
Aluminium Bars are lightweight, corrosion resistant, and highly versatile metal bars widely used across industrial and construction applications. Known for their excellent strength to weight ratio, these bars are ideal for manufacturing structural components, frames, machinery parts, and fabrication projects. Their superior machinability and resistance to rust make them suitable for both indoor and outdoor applications.
