| Size | M6 to M64 (Metric) & 1/4" to 2 - 1/2" (Imperial) |
|---|---|
| Type | Bolt |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 50 mm to 2000 mm (Metric) & 2" to 80" (Imperial) |
| Material | Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze |

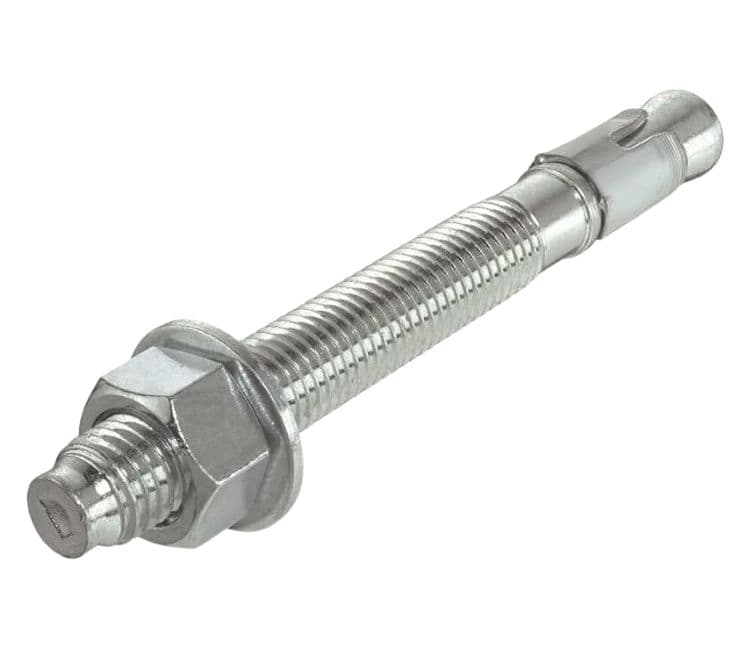

Anchor Bolts
Caliber Enterprise is a premier Anchor Bolts Manufacturer that offers quality fastening solutions in both structural and industrial work. Anchor bolts are meant to bond structural components to concrete foundations in such a way that they are stable and they can bear loads. These bolts are of different types like L-shaped bolts, J-shaped bolts and wedge anchor bolts that are applicable in installation depending on the requirements. Anchor bolts are known to be durable, resistant to corrosion as well as strong and are important in construction, installation of heavy equipment and infrastructure projects.
Material & Grades Table – Anchor Bolts
| Material | Grade / Standard | Bolt Size | Thread Pitch (mm) | Length (mm) | Approx. Weight (kg/m) |
|---|---|---|---|---|---|
| Carbon Steel | IS 2062 / Zinc Plated | M16 | 2.0 | 500 | ~2.10 |
| Alloy Steel | ASTM A193 Gr B7 | M20 | 2.5 | 600 | ~3.40 |
| Stainless Steel | AISI 304 | M16 | 2.0 | 500 | ~2.20 |
| Duplex Steel | UNS S32205 | M24 | 3.0 | 750 | ~5.60 |
| Copper Base Alloys | C36000 (Brass) | M16 | 2.0 | 500 | ~2.35 |
| Nickel Alloy | Inconel 625 | M20 | 2.5 | 600 | ~3.60 |
Type of Sub-products

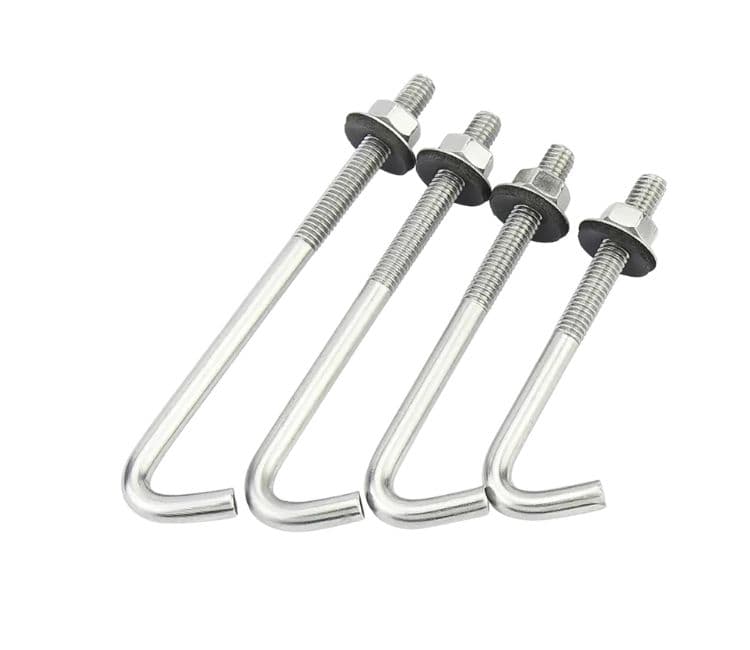

L Type Anchor Bolts L Type Anchor Bolts
Designed for concrete foundations, offering secure anchorage for structural steel and machinery.

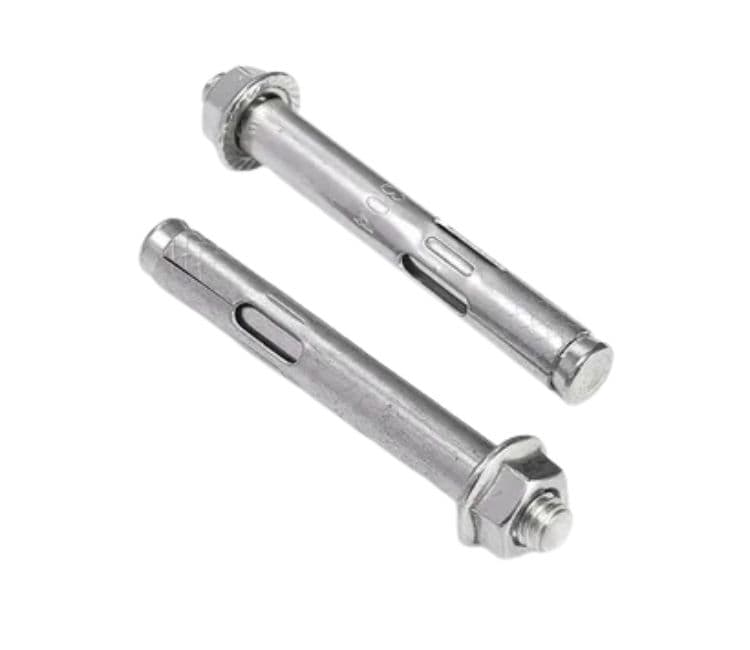

Sleeve Anchor Bolts Sleeve Anchor Bolts
Used for post installed fixings in solid concrete, ideal for medium to heavy duty loads.
