| Type of Forged Fitting | Elbow, Tee |
|---|---|
| Size | ½ Nb, 48nb. |
| Type | Seamless, Erw |
Bushing Forged Fitting
Sachiya Steel International is a reputed Bushing Forged Fitting Manufacturer specializing in providing a variety of precision-engineered fittings, which are in line with the standards of the world's industrial requirements. To provide an excellent quality of forged bushings, our forged bushings are produced out of high-quality stainless steel, carbon steel, alloy steel, and other materials to guarantee the durability of the product and corrosion resistance. These fittings aim to make a female threaded connection smaller, and they are suited to use in high-pressure applications in oil, gas, chemical, and petrochemical industries. Every fitting bushing is carefully evaluated in terms of quality assurance of leak-free operation and extended operational life.
These forged fittings are sought after in the global B2B marketplace because of their accuracy in threading and high quality of finishing. Among our sub-products that have been highly sought after is the End Cap Forged Fittings that has a hexagonal shaped head that can be installed and removed easily with the help of ordinary tools. It gives a close fit and is often used in the pipelines and pressure vessels where the connections need to be secure and stable. We have different sizes, pressure classes, and materials of our bushings so that they can be used in a variety of industrial applications.
Material Specification Table – Bushing Forged Fitting
| Material Category | ASTM / EN / DIN Standard | Grade / Designation | UNS No. | Chemical Composition (Key Elements) | Mechanical Strength (Min.) | Typical Service Application |
|---|---|---|---|---|---|---|
| Carbon Steel | ASTM A105 / ASME SA105 | A105 | K03504 | C ≤ 0.35%, Mn 0.6–1.05% | TS 485 MPa, YS 250 MPa | General piping, oil & gas |
| Low Temp Carbon Steel | ASTM A350 | LF2 (Cl.1 / Cl.2) | K03014 | C ≤ 0.30%, Ni ≤ 0.40% | TS 485 MPa, YS 250 MPa | Low-temperature service |
| High Temp Carbon Steel | ASTM A694 | F52 | K05252 | C ≤ 0.30%, Mn 1.0–1.7% | TS 520 MPa, YS 360 MPa | High-pressure pipelines |
| Stainless Steel (Austenitic) | ASTM A182 | F304 / F304L | S30400 / S30403 | Cr 18–20%, Ni 8–11% | TS 515 MPa, YS 205 MPa | Chemical & food industries |
| Stainless Steel (Mo-Bearing) | ASTM A182 | F316 / F316L | S31600 / S31603 | Cr 16–18%, Ni 10–14%, Mo 2–3% | TS 515 MPa, YS 205 MPa | Marine & corrosive service |
| Stainless Steel (Stabilized) | ASTM A182 | F321 | S32100 | Cr 17–19%, Ni 9–12%, Ti | TS 515 MPa, YS 205 MPa | High-temperature piping |
| Duplex Stainless Steel | ASTM A182 | F51 (2205) | S31803 / S32205 | Cr 21–23%, Ni 4.5–6.5% | TS 620 MPa, YS 450 MPa | Offshore & seawater |
| Super Duplex Stainless Steel | ASTM A182 | F53 | S32750 | Cr 24–26%, Ni 6–8% | TS 800 MPa, YS 550 MPa | Severe corrosion |
| Alloy Steel (Cr-Mo) | ASTM A182 | F11 | K11572 | Cr 1–1.5%, Mo 0.44–0.65% | TS 415 MPa, YS 205 MPa | Power plants |
Type of Sub-products

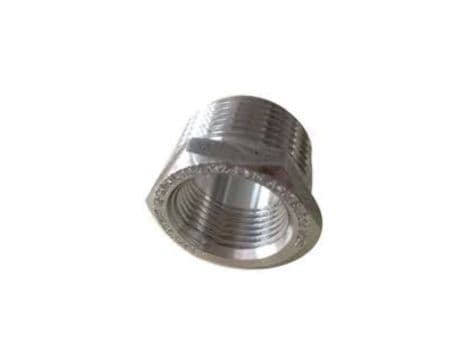

Hex Head Bushing Forged Fitting Hex Head Bushing Forged Fitting
The Hex Head Bushing is one of the most commonly used types of forged bushings. It features a hexagonal head that allows easy installation using a wrench. These bushings are used to connect pipes of different sizes by reducing the fitting size. They are designed for high pressure environments and are widely used in chemical, oil & gas, and hydraulic systems.
Square Head Bushing Forged Fitting Square Head Bushing Forged Fitting
The Square Head Bushing has a square shaped head that offers better grip during tightening and removal. It is ideal for applications where space is limited and frequent maintenance is required. Made from stainless steel, carbon steel, or alloy steel, these fittings ensure secure connections and excellent corrosion resistance.
