Buttweld Bends Factory Formed Pipe Bending Components Used To Change Flow Direction Manufacturer In India
| Standards | Ansi B 16.9 Astm A403 Asme Sa403, Api 590 605 Asme B16.9, Asme B16.25 |
|---|---|
| Dimensions | Ansi B16.9, Ansi B16.28, Mss Sp 43 Type A, Mss Sp 43 Type B, Jis B2312, Jis B2313 |
| Materials | Stainless Steel, Duplex Steel, Carbon Steel, Alloys Steel, Copper Nickel, Nickel, Monel, Inconel, Hastelloy, Titanium, Brass, Aluminium, Smo 254 |

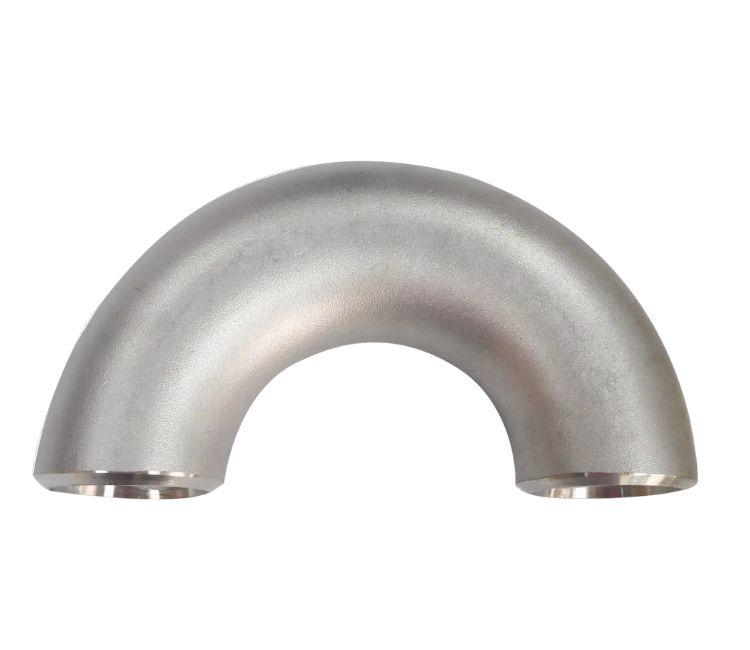

Buttweld Bends Supplied in Various Angles Radii and Wall Thicknesses for Piping Systems Supplier in India
Timex Metals is a leading Buttweld Bends Manufacturer, offering premium-quality bends that ensure precise angles and superior durability for various industrial applications. Our butt-weld bends are crafted using high-grade stainless steel, carbon steel, and alloy steel to meet international standards, providing excellent corrosion resistance, strength, and seamless welding capability. With a commitment to quality and timely delivery, we cater to diverse industries, including oil & gas, petrochemical, power plants, and construction, ensuring smooth and reliable piping systems.
The buttweld bends are designed to give smooth directional changes in the piping systems without altering the wall thickness and flow properties. The material and grade to be used should be chosen correctly to address design pressure, temperature and corrosion exposure. Material and grades table is organized to enable the engineers to certify the compliance with the piping standards and project requirements. This transparency assists proper procurement with a trusted B2B portal with supply of L' Fin Tube and other industrial heat transfer and piping products.
Material and Grades Table – Buttweld Bends
| Material / Grade | Standard Sizes (inch) | Weight per Meter (kg/m) | Technical Characteristics |
|---|---|---|---|
| Carbon Steel ASTM A234 WPB | 1/2" – 48" | 1.5 – 60.0 | Good weldability with high pressure-bearing capability |
| Stainless Steel SS 304/304L | 1/2" – 48" | 1.3 – 56.0 | Austenitic structure with reliable corrosion resistance |
| Stainless Steel SS 316/316L | 1/2" – 48" | 1.4 – 58.0 | Enhanced pitting resistance for aggressive environments |
| Alloy Steel ASTM A234 WP11 | 1/2" – 36" | 1.7 – 62.0 | Suitable for elevated temperature and pressure service |
| Duplex Stainless Steel 2205 | 1/2" – 24" | 1.6 – 57.0 | High strength with superior corrosion resistance |
- Directive in Directional Flow Management: Buttweld bends The purpose of the buttweld bends is to divert the flow of fluid in the piping system and into the smooth internal contours. Bends result in less turbulence, erosion, and pressure drop compared to sharp-angle fittings and therefore are applicable to high-velocity process lines and continuous-flow process lines.
- Process of Manufacturing and Radius Control: Several methods are used to manufacture bends; these include hot induction bending or cold bending, which do not alter the wall thickness, nor does it alter the curvature along the bend radius. The bending is controlled to achieve a low degree of ovality and uniform internal diameter which is important in applications where the flow is sensitive.
- Grades of Materials and Conformance to Standards: Buttweld bends are made under the ASME B16.49 or other corresponding standards of the Carbon Steel and the Stainless and Alloy Steel. The choice of materials is influenced by the pressure of operation, temperature range and corrosion contact in the piping system.
- Service Reliability and Performance Benefits: Because of their smooth or smoothly shaped construction, buttweld bends have greater fatigue resistance and long service life than mitered joints. They are usually employed in power stations, refineries and long distance pipelines where reliability, minimized maintenance and flow efficiency are important.
Client Project Report of Buttweld Bends
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Buttweld Bends for High-Flow Process Pipelines | 173 Pieces | Dahej |
| Buttweld Bends for Thermal Power Plant Lines | 209 Pieces | Singrauli |
| Buttweld Bends for Refinery Transfer Piping | 164 Pieces | Vadinar |
| Buttweld Bends for Industrial Utility Networks | 198 Pieces | Rourkela |
Buttweld bends are utilized to alter the flow direction in piping systems without causing discontinuity in the bore internal continuity and a low pressure decrease. Selection of the bends radius as well as the schedule has a direct relationship with flow turbulence, erosion rate and reliability in the long-term under cyclic load. Correct grading of materials is done to match operation temperature and pressure. In piping design and stress analysis, to maximize the use of space in piping layout, bends are often compared to Buttweld Elbow configuration to minimise the number of welds and flow behaviour based on geometries of the system.
Type of Sub-products

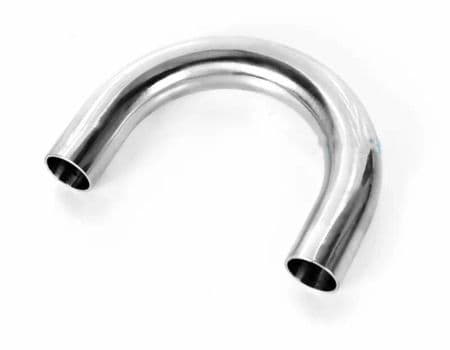

Long Radius Buttweld Bend Long Radius Buttweld Bend
It is bend with a bend radius 1.5x the pipe diameter, it offers smoother flow transitions and reduced pressure loss—ideal for high velocity fluid systems in energy and chemical plants.

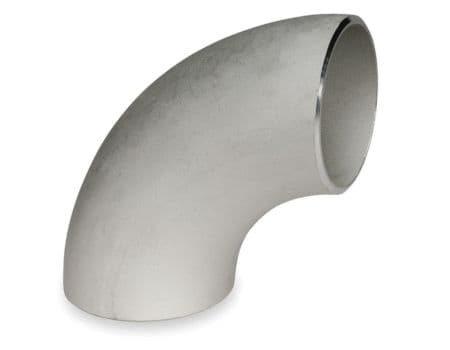

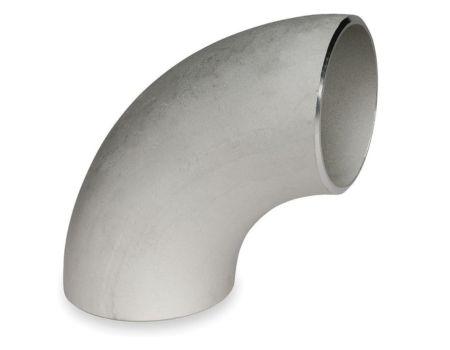

90 Degree Buttweld Bend 90 Degree Buttweld Bend
This bend changes pipe direction at a right angle and is widely used in pressurized and chemical transport lines where sharp turns are necessary without compromising flow.
