| Fin Thickness | Minimum 0.8mm, Maximum 3 Mm |
|---|---|
| Fin Height | Minimum 0.25″(6.35 Mm), 1.5″(38 Mm) |
| Fin Density : | Minimum 46 Fins Per Meter |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Inconel, High Nickle & Incolloy |
| Tubes Diameter | 30mm Od Minimum |

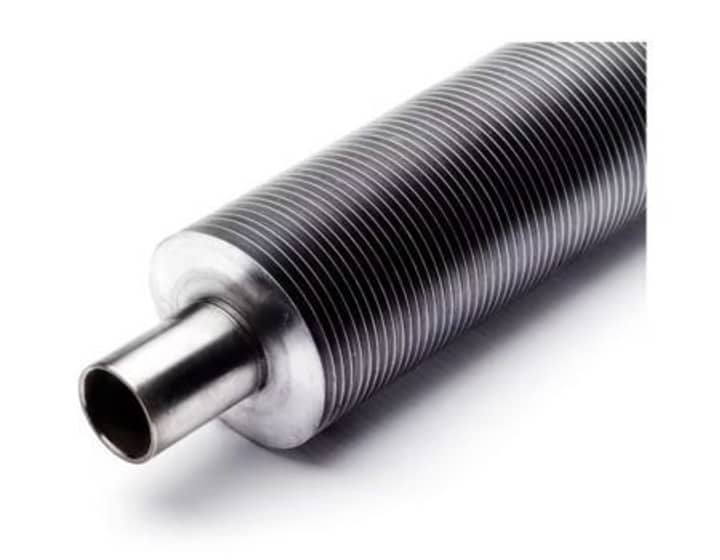

L' Fin Tube
Timex Metals is the leading L' Fin Tube manufacturer and provides high quality products which guarantee the performance and reliability of the products in various applications. A vast application of these tubes is seen in heat exchangers, power plants, chemical processing, and refineries where the nature of these tubes is very efficient in heat transfer and long life expectancy. L' Fin Tubes are a product of precision engineering and are produced to standards both national and international and therefore are applicable in a challenging environment where performance is of the essence.
L’ Fin Tube – Material, Grades & Weight Table
| Base Tube Material | Base Tube Grade | Fin Material | Tube OD (mm) | Wall Thickness (mm) | Fin Height (mm) | Fin Pitch (FPI) | Approx. Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| Carbon Steel | ASTM A179 | Aluminium AA 1100 | 25.4 (1") | 2.11 | 10 | 10 | 2.20 |
| Carbon Steel | ASTM A192 | Aluminium AA 1050 | 31.75 (1¼") | 2.77 | 12 | 9 | 3.40 |
| Carbon Steel | ASTM A106 Gr B | Aluminium AA 1100 | 38.10 (1½") | 3.05 | 12 | 8 | 4.60 |
| Stainless Steel | ASTM A213 TP304 | Aluminium AA 1050 | 25.4 (1") | 2.11 | 10 | 10 | 2.45 |
| Stainless Steel | ASTM A213 TP316 | Aluminium AA 1100 | 31.75 (1¼") | 2.77 | 12 | 9 | 3.70 |
| Copper | ASTM B111 | Copper | 19.05 (¾") | 1.65 | 8 | 12 | 2.10 |
L’ Fin Tubes are designed with mechanically wrapped fins to raise the external surface area and thus enhance the air-side heat transfer in controlled temperature environments up to 170°C. Generally, they are brought into play in cooling and heat recovery devices where the needs for material flexibility, lighter weight, and cost efficiency are met.On a B2B Platform, definite material grades and weight data make it easier for buyers to work out system load, compare configurations, and complete procurement with the right accuracy.If there is a need for a higher temperature capacity and a stronger fin bonding, KL Fin Tube is the most likely choice as a better alternative.
Type of Sub-products

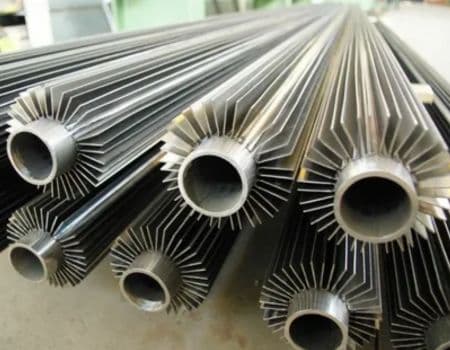

Standard L' Fin Tubes Standard L' Fin Tubes
These are made by wrapping the L shaped fin foot around the tube with strong mechanical bonding.

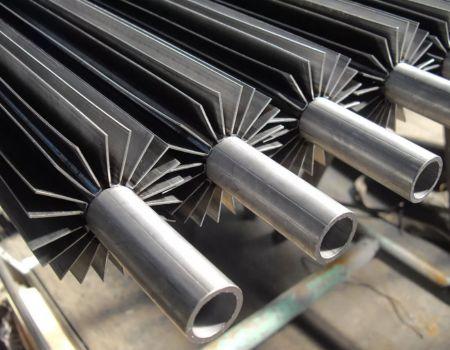

L' Fin Tubes With Protective Coating L' Fin Tubes With Protective Coating
This type includes an anti corrosion layer or epoxy coating over the base tube and fins.
