Carbon Steel Fin Tube Rigid Base Tube With Mechanically Bonded Fins For Durable Industrial Heat Handling Manufacturer In India

Carbon Steel Fin Tube Supplier In India
₹40 - ₹166

Minimum Order : 100 piece

Customization as per requirements

Specification Details
Fin ThicknessMinimum 0.8mm, Maximum 3 Mm
Fin Height1.5″(38 Mm), Minimum 0.25″(6.35 Mm)
Fin Density :Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter
MaterialAlloy Steel, Stainless Steel, Carbon Steel, Inconel, High Nickle & Incolloy
Tubes Diameter220mm Od Maximum, 30mm Od Minimum

Carbon Steel Fin Tube Supplier in India for Projects Requiring Strength Stability and Long Operating Life

Timex Metals is a reputable Carbon Steel Fin Tube Manufacturer, which provides high-quality and precision-engineered fin tubes to be used in the efficient method of heat transfer. The tubes find wide application in power generation, petrochemical, and HVAC systems industries because of their outstanding thermal conductivity and corrosion resistance. Being produced of carbon steel of superior quality, they offer high strength and durability in the condition of extreme temperature and pressure conditions. All products are scrutinised against the international quality standards to guarantee the product lasts long in performance and operating efficiency.


The use of carbon steel fin tubes is prevalent in the case of moderate to high operating temperatures, in cases when reliable heat transfer and mechanical strength are needed. The material provides a reasonable balance of thermal performance and cost, which are ideal in air-cooled systems, waste heat recovery unit and thermal equipment used in industry. The engineers of most projects examine this general group alongside the ASTM A179 Carbon Steel Fin Tube specification to evaluate the variations in the wall thickness control, pressure, and efficiency of heat transfer. In a B2B marketplace, the existence of consolidated tables showing readings of grades, fin geometry, and weight per meter allows users to look at options rather quickly, estimate structural loads properly, and choose the most suitable fin tube design against the actual operating conditions.


Carbon Steel Fin Tube – Material & Specification Table

MaterialGradeFin Construction TypeTube OD (mm)Wall Thickness (mm)Fin Height (mm)Fin Pitch (FPI)Typical Service Temp (°C)Approx. Weight (kg/m)
Carbon SteelASTM A106 Gr BHelical / Wrapped25.42.119104002.40
Carbon SteelASTM A106 Gr BHelical / Wrapped31.752.771194203.55
Carbon SteelASTM A192Embedded (G-Type)38.103.051384505.10
Carbon SteelASTM A210 Gr A1Helical / Wrapped50.803.401574508.20
Carbon SteelASTM A179Embedded (G-Type)31.752.771294503.85
  • Industrial equipment & Heat transfer: The carbon steel fin tubes are utilized mostly in the systems that have to have strong mechanical strength and steady heat dissipation during the long working periods. They are highly applicable in air-to-fluid and gas-to-liquid heat exchangers in terms of moderate to high thermal load without endangering the rigidity of the tubes.
  • Construction and Bonding: At Fin Construction: Fins are mounted on the base tube depending on the requirements of the application by high-frequency welding over the fin, mechanical embedding of the fin, or solid fin extrusion. All the methods are chosen to achieve good attachment of fins, good heat transfer between the tube and the fin, and stable fin attachment to the tube in vibrations and thermal cycles.
  • Flexibility of Material Characteristics Grades: Depending on pressure, temperature, and service medium, carbon steel fin tubes may be made with one of several grades such as ASTM A106, A179, A192, or higher grade EN standards. They are versatile in a variety of industrial sectors with these steels having good thermal conductivity, weldability and structural stability.
  • Cost Effectiveness & Strength in Operation: Carbon steel fin tubes have a moderate balance between performance and cost efficiency when compared to alloy or stainless. In controlled or slightly corrosive conditions they provide long service life, fabrication ease and simple maintenance which is paramount to power plants, refineries and process industries.

Client Project Report of Carbon Steel Fin Tube

Product SuppliedQuantityCities (India)
Carbon Steel Fin Tubes for Air Cooled Heat Exchangers162 PiecesPanipat
Carbon Steel Fin Tubes for Waste Heat Recovery Units198 PiecesBellary
Carbon Steel Fin Tubes for Petrochemical Cooling Systems207 PiecesVadinar
Carbon Steel Fin Tubes for Industrial Furnace Exhaust Cooling174 PiecesDurgapur
The choice of carbon steel fin tubes is made in case mechanical strength, cost-effectiveness, and external airflow erosion resistance are important selection criteria. Carbon steel is more reliable than other lighter materials in large heat exchanger banks in terms of vibration and thermal cycling. The balance between wall thickness and fin height is usually aimed at regulating the pressure drop and structural integrity in the long service durations. In weight sensitive or corrosion sensitive designs 6061 Aluminium Fin Tube possibilities have been considered to minimize mass and enhance corrosion resistance although carbon steel is still used where rugged operation in a harsh environment is required.

Type of Sub-products

  • Extruded Carbon Steel Fin Tube

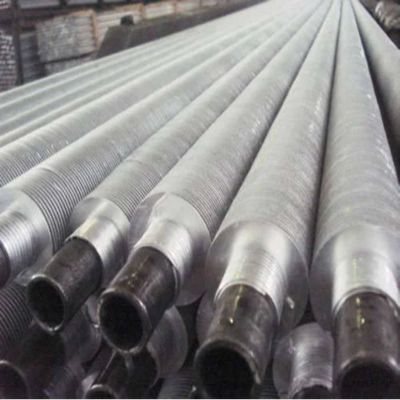

    Extruded Carbon Steel Fin Tube

    Extruded Carbon Steel Fin Tube

    Extruded fin tubes are made by mechanically forming the fins from the base tube, creating a durable and efficient structure for heat dissipation. This design is ideal for use in high temperature environments or where increased thermal performance is needed.
