| Standard | Astm A580, A555, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

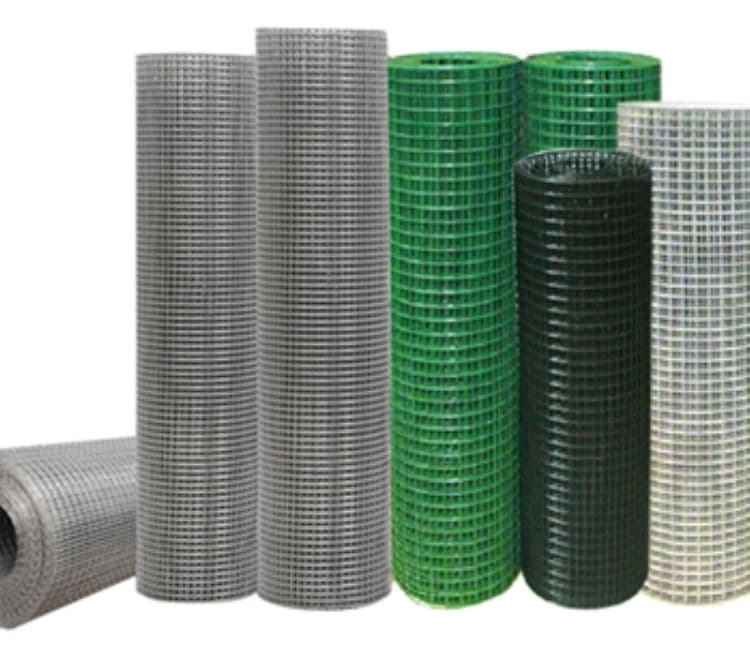

Compound Layers Mesh
Timex Metals is a reputable Compound Layers Mesh Manufacturer that provides high performance mesh solutions that are extensively applied in industrial and architectural works. These meshes are engineered in more than one layer offering more strength, durability, and resistance to corrosion. They are highly manufactured using very precise engineering and therefore they are reliable even in harsh environments like chemical plants, construction sites and filtration systems. The compound design of these meshes also provides better load carrying capacity thus making them a better choice to apply in critical situations.
Compound Layers Mesh – Material and Grades Table
| Material | Grade / Standard | Mesh Size (Micron) | Wire Diameter (mm) | Approx. Weight per Meter (kg/m²) |
|---|---|---|---|---|
| Stainless Steel | ASTM A240 TP304 | 50 | 0.10 | 1.2 |
| Stainless Steel | ASTM A240 TP304L | 100 | 0.12 | 1.6 |
| Stainless Steel | ASTM A240 TP316 | 150 | 0.15 | 2.1 |
| Stainless Steel | ASTM A240 TP316L | 200 | 0.18 | 2.8 |
| Nickel Alloy | ASTM B162 | 100 | 0.12 | 1.9 |
| Nickel Alloy | ASTM B168 | 250 | 0.20 | 3.4 |
Compound Layers Mesh finds its application in extreme filter, diffusion, and flow control systems, which run across chemical and process industries. In sophisticated thermal and fluid applications, the requirements are similar to those of Integrally Finned Tubes,where the material performance has a direct correlation with the efficiency.A comprehensive material and grade table aids the precise selection and dependable sourcing from a trusted B2B Marketplace, thus maintaining the quality and the operational reliability that are consistent.
Type of Sub-products
Expanded Metal Mesh Expanded Metal Mesh
Expanded Metal Mesh is a durable, versatile sheet product made by slitting and stretching metal plates into a mesh with diamond shaped openings. It is not woven or welded—the mesh is formed from a single solid sheet, which makes it stronger and more rigid.

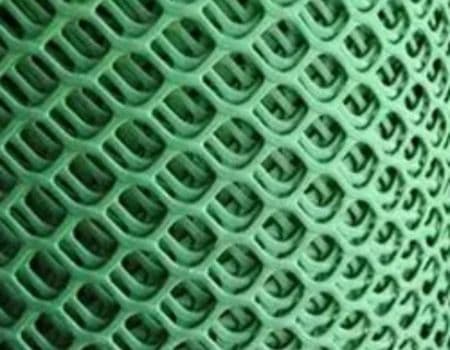

Frame Mounted Layered Mesh Panels Frame Mounted Layered Mesh Panels
Frame-Mounted Layered Mesh Panels are precision-fitted mesh units pre-tensioned and bonded to steel frames.
