Erw Pipes & Tubes Supplier – Astm A53 Gr A/b, Astm A178, Astm A214, Astm A249, Astm A269 Tp304/304l/316/316l, Astm A312 Tp304/316

Name: Erw Pipes & Tubes Supplier – Astm A53 Gr A/b, Astm A178, Astm A214, Astm A249, Astm A269 Tp304/304l/316/316l, Astm A312 Tp304/316
Brand: Manidhari Steel & Alloys
Availability: InStock
Rating: 4 (1 reviews)

Specification Details
Specifications	Astm, Asme, Din, Nfa, Jis
Thickness	4.0mm, 100mm
Pipes Size	1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes
Tubes Size	1/2″ Od, 8″ Od
Length:	Cut Length, Fix Length, Single Random, Double Random, Required Length
End	Plain End, Beveled End, Threaded

Instrumentation ERW Pipes & Tubes Supplier in India – ASTM A53, ASTM A178, ASTM A214, ASTM A249, ASTM A269 TP304/316/316L, ASTM A312

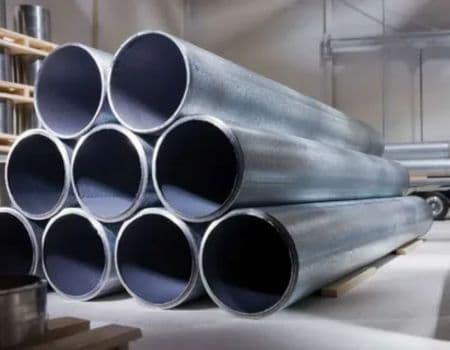

Manidhari Steel & Alloys is a trusted ERW Pipes & Tubes manufacturer in India, providing high-quality, precision-engineered pipes for a wide range of industrial applications. Manufactured using Electric Resistance Welding (ERW) technology, these pipes offer excellent strength, uniformity, and smooth internal surfaces. Their durability, cost-effectiveness, and superior mechanical properties make them highly suitable for industries such as oil and gas, construction, automotive, and structural engineering. With high tensile strength, corrosion resistance, and accurate dimensions, ERW pipes are ideal for fluid transportation, scaffolding, and general engineering purposes.

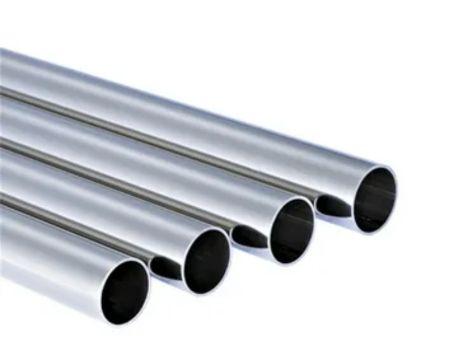

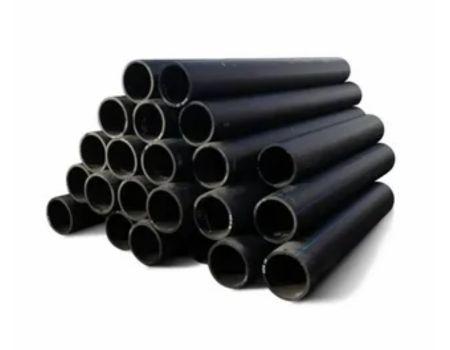

As a trusted ERW Pipes & Tubes supplier in India, the company delivers a broad selection of stainless steel, carbon steel, and alloy steel ERW pipes, Seamless Pipes & Tubes in multiple sizes, thicknesses, and finishes. Each pipe undergoes rigorous quality testing to ensure compliance with international standards and optimal performance under high-pressure and high-temperature conditions. With a strong commitment to precision engineering and stringent quality control, the company provides products that meet the highest industry standards and consistently fulfill customer expectations.

ERW Pipes Weight Chart in KG, MM, PDF

NB (Inch)	OD (MM)	Thickness (MM)	Weight (Kg/Mtr)
1/2"	21.3	2.77	1.27
3/4"	26.7	2.87	1.68
1"	33.4	3.38	2.50
1 1/4"	42.2	3.56	3.38
1 1/2"	48.3	3.68	4.05
2"	60.3	3.91	5.44
2 1/2"	73.0	5.16	8.63
3"	88.9	5.49	11.29
4"	114.3	6.02	16.07
5"	141.3	6.55	21.77
6"	168.3	7.11	28.26
8"	219.1	8.18	42.55
10"	273.0	9.27	60.33
12"	323.9	9.53	73.58

ERW Tubes Weight Chart in KG (OD Based – Round Tubes)

OD (MM)	Thickness (MM)	Weight (Kg/Mtr)
12	1.0	0.28
16	1.2	0.46
20	1.5	0.71
25	1.5	0.91
32	1.6	1.21
38	2.0	1.78
50	2.0	2.96
63	2.5	4.66
75	3.0	6.62
100	3.0	9.02

ERW Pipes & Tubes Grade Table

Material Type	Standard	Grade / Specification	Yield Strength (MPa)	Application
Carbon Steel	ASTM A53	Gr A	205	General Purpose
Carbon Steel	ASTM A53	Gr B	240	Structural / Industrial
Carbon Steel	IS 1239	Class A / B / C	210–275	Plumbing / Water
Carbon Steel	IS 3589	Fe 330 / Fe 410 / Fe 450	330–450	Water Transmission
Boiler Tubes	ASTM A178	Grade A / C	Varies	Heat Exchanger
Heat Exchanger	ASTM A214	Standard Grade	Varies	Condensers
Stainless Steel	ASTM A249	TP304 / 304L / 316 / 316L	205–290	Heat Exchanger
Stainless Steel	ASTM A269	TP304 / 304L / 316 / 316L	205–290	Instrumentation
Stainless Steel	ASTM A312	TP304 / TP316	205–290	Process Piping
Duplex Steel	ASTM A789	UNS S31803 (2205)	450	Corrosive Environments
Super Duplex	ASTM A789	UNS S32750 (2507)	550	Offshore / Marine
