| Size | 5 |
|---|---|
| Type | Bolt, Nut, Washer, Screw, Rivet, Threaded Rod, Studs, Custom Fasteners, Nails, Coated |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 10 |
| Material | Stainless Steel, Silicon Bronze, Monel, Phosphor Bronze, Inconel, Incoloy, Hastelloy, Nickel |

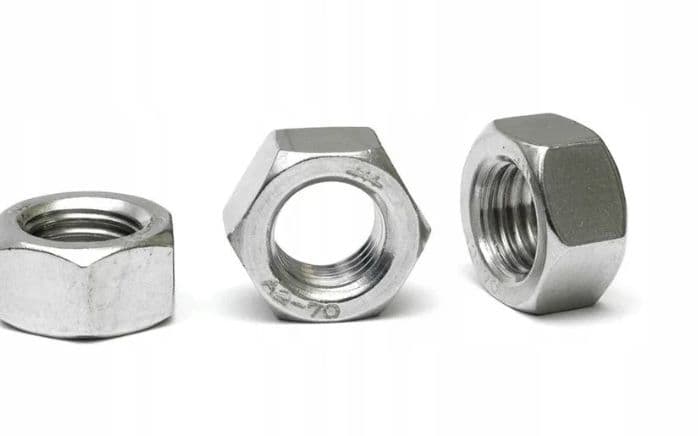

Industrial Hex Jam Nuts High Strength Material Manufacturer & Supplier Stainless Steel Carbon Steel Alloy Steel Grade 4 Grade 8 A2 A4 IS Standard
Jinnox Bolt sells high-end hex jam nuts, which are manufactured with extreme accuracy and reliability in industrial use. The Hex Jam Nuts are slimmer than the usual hex nuts; hence, when space is minimal at the time of locking, these are suitable. These nuts are designed to offer safe fastening in machines, automotive systems, and other industrial systems. They are a reputable Hex Jam Nuts manufacturer, and so they are able to guarantee their products to be as durable and performant as industry standards.
The hex jam nuts have a wide range of applications in vibration-critical areas. Standard nuts are generally used to stabilise them so that they can last longer. These nuts are manufactured using stainless steel, carbon steel and alloy steel to serve the B2B industry, with excellent corrosion resistance, wear resistance and also high temperatures.
- Hex Jam Nuts are offered in various grades to meet diverse industrial requirements.
- Common grades include Grade 4, Grade 8, and stainless steel A2 and A4.
- Each grade provides specific tensile strength, hardness, and mechanical performance.
- Choosing the right grade ensures the nut performs reliably in high-stress assemblies.
- Proper grade selection also guarantees functionality in harsh or severe environments.
They are based on precision and quality control of manufacturing. Due to proper threading and regular size, hex jam nuts make a reliable selection in industrial fastening. These nuts are small and can hold more weight with high efficiency which makes them offer long and safe assembly to businesses in different fields.
| Hex Jam Nuts: Dimensions (ANSI/ASME B18.2.2-1987) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Nominal or Basic Major Diameter of Thread Click on the size to shop products | Width Across Flats (F) | Width Across Corners (G) | Thickness of Hex Jam Nuts (H) | ||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | 0.2500 | 7/16 | .438 | .428 | .505 | .488 | 5/32 | 0.163 | 0.150 |
| 5/16 | 0.3125 | 1/2 | .500 | .489 | .577 | .557 | 3/16 | 0.195 | 0.180 |
| 3/8 | 0.3750 | 9/16 | .562 | .551 | .650 | .628 | 7/32 | 0.227 | 0.210 |
| 7/16 | 0.4375 | 11/16 | .688 | .675 | .794 | .768 | 1/4 | 0.260 | 0.240 |
| 1/2 | 0.5000 | 3/4 | .750 | .736 | .866 | .840 | 5/16 | 0.323 | 0.302 |
| 9/16 | 0.5625 | 7/8 | .875 | .861 | 1.010 | .982 | 5/16 | 0.324 | 0.301 |
| 5/8 | 0.6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 3/8 | 0.387 | 0.363 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 24/64 | 0.446 | 0.398 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 31/64 | 0.510 | 0.458 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 35/64 | .575 | 0.519 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 39/64 | .639 | .579 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 23/32 | .751 | .687 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 25/32 | .815 | .747 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 27/32 | .880 | .808 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 31/32 | 1.009 | .929 |
| 2 | 2.000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-3/32 | 1.138 | 1.050 |
| 2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-13/64 | 1.251 | 1.155 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-29/64 | 1.505 | 1.401 |
Clients Project of Hex Jam Nuts
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Hex Jam Nuts for the Oil and gas industry | 114 Pieces | Ahmedabad |
| Hex Jam Nuts supplied to the Pharmaceutical processing industry | 140 Pieces | Mumbai |
| Hex Jam Nuts supply for Piping | 160 Pieces | Surat |
| Hex Jam Nuts supplied to industry | 190 Pieces | Bengaluru |
Type of Sub-products

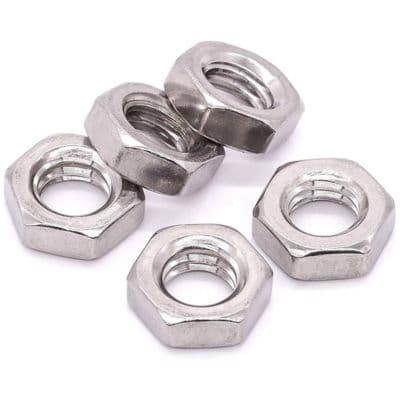

Stainless Steel Hex Jam Nuts Stainless Steel Hex Jam Nuts
Stainless steel hex jam nuts are thin, low profile nuts designed to lock against another nut to prevent loosening due to vibration or torque. Made from corrosion resistant stainless steel, they are ideal for harsh environments and high moisture applications.
