What are PVDF fittings used for?

PVDF fittings are used to connect pipes, hoses, and other components in systems that handle aggressive chemicals, acids, and high-temperature fluids. They are ideal for industries such as chemical processing, pharmaceuticals, and water treatment.

Why are PVDF fittings preferred in harsh environments?

PVDF fittings are preferred because they offer superior chemical resistance, high-temperature stability, and UV resistance, making them suitable for demanding applications in environments that other materials might degrade in.

How long do PVDF fittings last compared to other types of fittings?

PVDF fittings have a long lifespan due to their exceptional resistance to corrosion and wear. They are highly durable, even in challenging conditions involving harsh chemicals, high temperatures, and UV exposure, often outlasting fittings made from other materials like PVC or metal.

Pvdf Fittings For Industrial Applications High Quality Material Corrosion Resistant And Leak Proof For Chemical Process And Pharma Plants

Name: Pvdf Fittings For Industrial Applications High Quality Material Corrosion Resistant And Leak Proof For Chemical Process And Pharma Plants
Brand: D Chel Oil & Gas
Availability: InStock
Rating: 5 (7 reviews)

Pvdf Fittings Supplier In India — Pvdf Fittings For Industrial Applications High Quality Material Corrosion Resistant And Leak Proof For Chemical Process And Pharma Plants

₹36 - ₹147

Minimum Order : 50 piece

Customization as per requirements

Industrial Grade PVDF Pipe Fittings Durable Reliable and High Performance Manufacturer and Supplier for Bulk Projects in Chemical Pharma and Process Units

D Chel Oil and Gas offers PVDF fittings that can be used in harsh industrial fluid handling applications that have a requirement on both chemical resistance and service life. The B2B buyers use the PVDF fittings due to their use in applications related to acids, solvents and high-purity fluids since the material has good strength and thermal stability with low maintenance requirements during continuous operations.

Procurement-wise, when selecting a reputable PVDF fittings manufacturer, it implies a steady dimension pressure rating and a traceability of material. The industrial consumers are seeking fittings which can be easily attached to pre-existing piping systems without compromising leakproof joints and constant flow performance in chemical processing, water treatment processes and semiconductor systems.

Many industrial buyers prefer to purchase multiple polymer piping products from a single supplier to simplify purchasing and reduce logistics complexity.
Single source procurement helps in better coordination, faster delivery and easier quality control across all piping components.
Along with PVDF fittings buyers often require products from a PFA fittings supplier for high temperature and ultra clean process applications.
PFA components are commonly used where purity and thermal stability are critical such as pharma, chemical and electronics industries.
Corrosion resistant fittings are also selected for special process lines that handle aggressive fluids and variable operating conditions.
This mixed material sourcing approach supports flexible system design while maintaining safety performance and long service life.

On construction of structural piping and external installation projects, the buyers can also contract with an FRP fitting manufacturer to address the mechanical strength and outdoor requirements. Such combined sourcing strategy assists EPC contractors and operators of the plant to lower downtime in order to guarantee intersystem compatibility and consistency in quality standards throughout large-scale industrial projects.

PVDF 45 Deg Elbow

25	16	24	33	4.5	2	50	50	EMS45-25-16/PE
40	16	38	48	5	2	80	80	EMS45-40-16/PE
50	16	48	58	5	2	100	100	EMS45-50-16/PE
65	16	63	75	6	2	130	130	EMS45-65-16/PE
80	16	78	90	6	2	160	160	EMS45-80-16/PE
100	16	98	111	6.5	2	150	150	EMS45-100-16/PE
125	16	123	137	7	1.5	190	190	EMS45-125-16/PE
150	16	148	165	8.5	1.5	225	225	EMS45-150-16/PE
200	10	198	214	8	1.5	300	300	EMS45-200-10/PE
200	16	198	220	11	1.5	300	300	EMS45-200-16/PE
250	10	248	165	8.5	1.5	375	375	EMS45-250-10/PE
250	16	248	272	12	1.5	375	375	EMS45-250-16/PE
300	10	298	316	9	1.5	450	450	EMS45-300-10/PE
300	16	298	324	13	1.5	450	450	EMS45-300-16/PE

PVDF 90 Deg Elbow

Nom. (mm)	Pmax. (bar)	I.D. (mm)	O.D. (mm)	W.T. (mm)	R= Factor x I.D.	R (mm)	L (mm)	Article number
25	16	24	33	4.5	2	50	50	EMS90-25-16/PE
32	16	32	42	5	2	64	64	EMS90-32-16/PE
40	16	38	48	5	2	80	80	EMS90-40-16/PE
50	16	48	58	5	2	100	100	EMS90-50-16/PE
65	16	63	75	6	2	130	130	EMS90-65-16/PE
80	16	78	90	6	2	160	160	EMS90-80-16/PE
100	16	98	111	6.5	2	150	150	EMS90-100-16/PE
125	16	123	137	7	1.5	190	190	EMS90-125-16/PE
150	16	148	165	8.5	1.5	225	225	EMS90-150-16/PE
200	10	198	214	8	1.5	300	300	EMS90-200-10/PE
200	16	198	220	11	1.5	300	300	EMS90-200-16/PE
250	10	248	165	8.5	1.5	375	375	EMS90-250-10/PE
250	16	248	272	12	1.5	375	375	EMS90-250-16/PE
300	10	298	316	9	1.5	450	450	EMS90-300-10/PE
300	16	298	324	13	1.5	450	450	EMS90-300-16/PE

PVDF Reducers

DN1	DN2	Overall Length	Wall Thickness	Pmax	Article
(mm)	(mm)	(mm)	(mm)	(bar)	number
32	25	40	5	16	ROS-32-25-16/PE
40	25	60	5	16	ROS-40-25-16/PE
50	25	60	5	16	ROS-50-25-16/PE
80	25	130	5	16	ROS-80-25-16/PE
100	25	180	5	16	ROS-100-25-16/PE
40	32	20	5	16	ROS-40-32-16/PE
50	32	20	5	16	ROS-50-32-16/PE
80	32	90	5	16	ROS-80-32-16/PE
100	32	140	5	16	ROS-100-32-16/PE
50	40	20	5	16	ROS-50-40-16/PE
80	40	90	5	16	ROS-80-40-16/PE
100	40	140	5	16	ROS-100-40-16/PE
80	50	70	5	16	ROS-80-50-16/PE
100	50	120	5	16	ROS-100-50-16/PE
125	50	180	5	16	ROS-125-50-16/PE
150	50	240	5	16	ROS-150-50-16/PE
80	65	40	5	16	ROS-80-65-16/PE
100	65	90	5	16	ROS-100-65-16/PE
125	65	150	5	16	ROS-125-65-16/PE
150	65	210	5	16	ROS-150-65-16/PE
100	80	50	5	16	ROS-100-80-16/PE
125	80	110	5	16	ROS-125-80-16/PE
150	80	170	5	16	ROS-150-80-16/PE
200	80	290	6	16	ROS-200-80-16/PE
125	100	60	5	16	ROS-125-100-16/PE
150	100	120	5	16	ROS-150-100-16/PE
200	100	240	6	16	ROS-200-100-16/PE
150	125	60	5	16	ROS-150-125-16/PE
200	125	180	6	16	ROS-200-125-16/PE
200	150	120	6	16	ROS-200-150-16/PE
250	150	240	6	10	ROS -250-150-10/PE
300	150	360	6	10	ROS-300-150-10/PE
250	200	120	6	10	ROS-250-200-10/PE
300	200	240	6	10	ROS-300-200-10/PE
350	200	360	7	10	ROS-350-200-10/PE
400	200	480	7	10	ROS-400-200-10/PE
300	250	120	6	10	ROS-300-250-10/PE
350	250	240	7	10	ROS-350-250-10/PE
400	250	360	8	10	ROS-400-250-10/PE
350	300	120	7	10	ROS-350-300-10/PE
400	300	240	8	10	ROS-400-300-10/PE
400	350	120	8	10	ROS-400-350-10/PE

PVDF Couplings

DN	L	Pmax	L2	NPT/BSPP	Do	Di	Article
(mm)	(mm)	(bar)	(mm)	(inch)	(mm)	(mm)	number
150	200	10	57	6″ NPT	178	153	CTS-24/4-200
100	200	10	51	4″ NPT	127	102	CTS-16/4-200
75	200	10	45	3″ NPT	99	77	CTS-12/4-200
50	200	10	42	2″ NPT	73	51	CTS-8/4-200
50	150	10	42	2″ NPT	73	51	CTS-8/4-150
40	200	10	39	1 1/2″ NPT	61	39	CTS-6/4-200
40	150	10	39	1 1/2″ NPT	61	39	CTS-6/4-150
25	150	10	32	1″ NPT	48	26	CTS-4/4-150
20	150	10	26	3/4″ NPT	38	20	CTS-3/4-150
10	150	10	26	1/2″ NPT	32	13	CTS-2/4-150
10	150	10	20	3/8″ NPT	29	10	CTS-2/4-150
10	150	10	26	1/2″ BSPP	32	13	CTS-2/4-150
25	150	10	32	1″ BSPP	48	26	CTS-4/4-150

PVDF fittings

Code	Size	d₂	d₁	d₃	t₁	e
PPTEEQ020S	20	27.5	19.5	25.5	14.5	4
PPTEEQ025S	25	33.5	24.5	29.5	16	4.5
PPTEEQ032S	32	41.3	31.5	35	18	4.9
PPTEEQ040S	40	50.6	39.5	41.5	20.5	5.6
PPTEEQ050S	50	63.7	49.5	49.5	23.5	7.1
PPTEEQ063S	63	79	62.5	60	27.5	8.3
PPTEEQ075S	75	91.5	74.9	69.5	31	8.3
PPTEEQ090S	90	111.5	89.9	79	33	10.8
PPTEEQ110S	110	134.5	110	97.5	37	12.3

PVDF Fittings Clients Project

Product Supplied Quantity Cities (India)
PVDF Fittings for the Oil and gas industry 114 Pieces Bareilly, Uttar Pradesh
PVDF Fittings supplied to the Pharmaceutical processing industry 120 Pieces Mumbai, Maharashtra
Plates & Fittings supply for Piping 160 Pieces Srinagar, Jammu, and Kashmir
PVDF Fittings supplied to industry 180 Pieces Raipur, Chhattisgarh

Product Supplied	Quantity	Cities (India)
PVDF Fittings for the Oil and gas industry	114 Pieces	Bareilly, Uttar Pradesh
PVDF Fittings supplied to the Pharmaceutical processing industry	120 Pieces	Mumbai, Maharashtra
Plates & Fittings supply for Piping	160 Pieces	Srinagar, Jammu, and Kashmir
PVDF Fittings supplied to industry	180 Pieces	Raipur, Chhattisgarh

Type of Sub-products

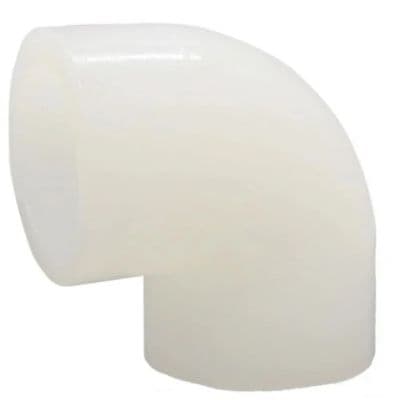

Pvdf Elbow Fittings
Pvdf Elbow Fittings
PVDF elbow fittings are used to change the direction of flow in piping systems. They are commonly used in chemical, pharmaceutical, and water treatment industries where high chemical resistance and leak free performance are crucial.
