| Standard | Sa555, Sa313, A313, A555, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |
Sintered Felt
Timex is a leading Sintered Felt Manufacturer, we specialized in the manufacturing of high-technology metallic filtration media which is bonded metal fibre that provide high porosity, even distribution of pores, and high strength. These products find a large application in chemical processing, power generation, oil and gas and pharmaceutical industries where high accuracy in filtration, high temperature capability, and extended service life are very important.
Material & Grades Table – Sintered Felt
| Material | Grade | Standard Thickness (mm) | Pore Size (µm) | Standard Sheet Size (mm) | Weight per Meter (kg/m²) | Typical Application |
|---|---|---|---|---|---|---|
| Stainless Steel Fiber | SS 304 | 0.5 – 3.0 | 1 – 50 | 500×500 / 1000×1000 | 2.5 – 8.0 | Liquid & gas filtration |
| Stainless Steel Fiber | SS 316L | 0.5 – 4.0 | 1 – 60 | 500×500 / 1000×1000 | 2.8 – 9.0 | Chemical & corrosive media |
| Stainless Steel Fiber | SS 310 | 1.0 – 5.0 | 5 – 100 | 500×500 / 1000×1000 | 3.5 – 10.5 | High-temperature filtration |
| Inconel Fiber | Inconel 600 | 1.0 – 4.0 | 5 – 80 | 500×500 / 1000×1000 | 4.0 – 11.0 | High heat & pressure systems |
| Hastelloy Fiber | Hastelloy X | 1.0 – 4.0 | 5 – 70 | 500×500 / 1000×1000 | 4.2 – 11.5 | Aggressive chemical filtration |
The products of Sintered Felt are applied in high-efficiency filtration, separation, and flow control.Sintered Mesh layers are frequently used along with these products in order to attain fine pore structure, mechanical strength, and constant permeability at pressure. In the selection of the material and grade of fiber to use when sourcing via a B2B Portal a detailed material/grade table is significant in the selection of the right fiber composition, pore size, and weight to suit the operating temperature, pressure and the compatibility with the media to ensure long service life and reliable filtration performance.
Type of Sub-products

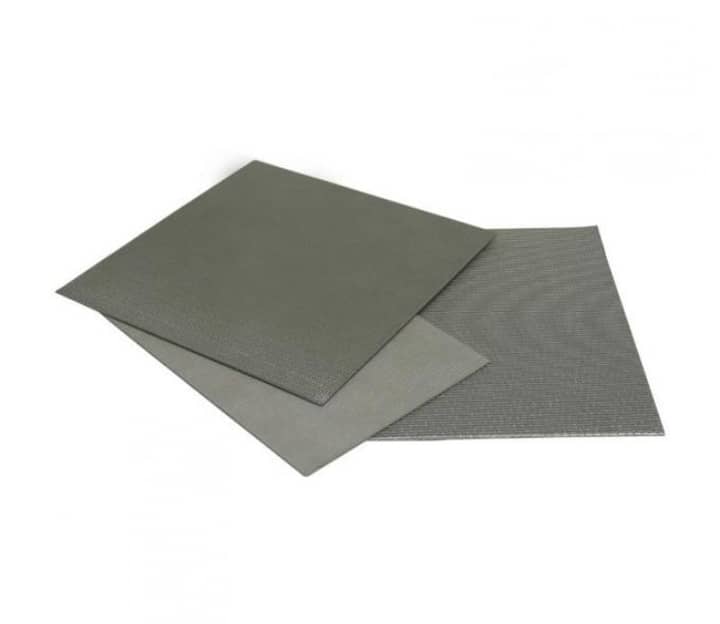

Flat Sintered Felt Sheets Flat Sintered Felt Sheets
Flat Sintered Felt Sheets are made by bonding stainless steel or alloy fibers through high-temperature sintering, forming a uniform porous structure. They provide consistent filtration, excellent permeability, and high mechanical strength.
Sintered Felt Filter Cartridges Sintered Felt Filter Cartridges
Sintered Felt Filter Cartridges are precision-engineered filtration elements made from sintered stainless steel fibers. They offer deep filtration with high dirt-holding capacity, excellent pressure resistance, and long service life. Ideal for hydraulic systems, gas filtration, and high-temperature industrial processes.
