Thermowell Flange

A thermowell flange serves as a robust connection point, integrating a thermowell – a protective tube – into industrial pipelines or vessels. Its core function is to establish a secure, leak-proof barrier, isolating the delicate temperature sensor (such as a thermocouple or RTD) from the often-harsh process environment. This isolation is crucial for accurate temperature measurement, safeguarding the sensor from aggressive chemicals, high pressures, abrasive materials, and rapid fluid flows. A significant advantage of using a flanged thermowell is the ability to easily remove, calibrate, or replace the temperature sensor without disrupting the ongoing process, thereby ensuring continuous operation and enhanced safety for personnel.

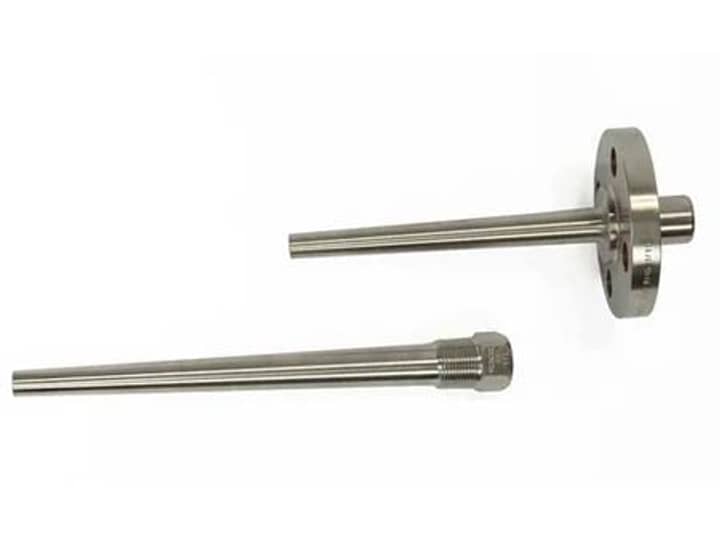

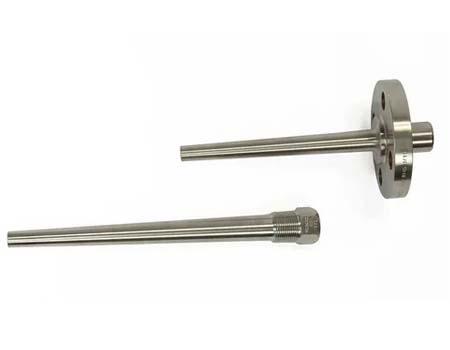

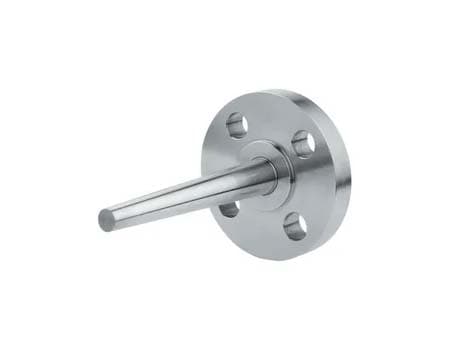

While the flange itself is the connection, thermowells paired with them commonly feature distinct designs for the portion extending into the process. These include: Straight: Characterized by a uniform diameter along its length, offering strong mechanical integrity suitable for lower-flow environments. Stepped: Begins with a larger diameter near the flange and tapers down to a smaller tip. This design often allows for quicker temperature response due to less mass at the sensing point while maintaining strength.

Choosing the appropriate thermowell and flange combination is vital for long-term performance. Key considerations include: Process Conditions: Thoroughly evaluate the process temperature, pressure, fluid velocity, and corrosive nature. These factors determine the optimal material for the thermowell and flange, as well as the required flange pressure rating. Material Compatibility: The selected materials must resist the process media to prevent corrosion and premature failure, ensuring longevity. Common materials include various stainless steel grades and specialized alloys.
