| Fin Thickness | Maximum 3 Mm, Minimum 0.8mm |
|---|---|
| Fin Height | Minimum 0.25″(6.35 Mm), 1.5″(38 Mm) |
| Fin Density : | Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Inconel, High Nickle & Incolloy |
| Tubes Diameter | 30mm Od Minimum, 220mm Od Maximum |

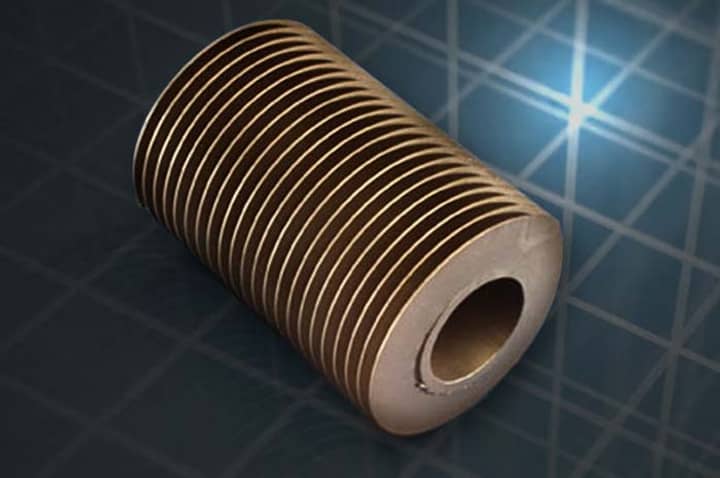

Welded Fin Tubes Supplier in Dubai | ASTM A213 / ASTM A179 Heat Transfer Welded Fin Tube Standards
Timex Metals is known as a trustworthy Welded Fin Tubes supplier in Dubai, catering to the demanding industrial heat exchange needs. Welded Fin Tubes are designed to provide outstanding heat transfer performance in high-temperature and high-pressure environments, such as boilers, oil refineries, and power stations. The fins are resistance-welded to the base tube, providing outstanding thermal efficiency and strength. With strict quality control and adherence to industry standards.
These tubes are in high demand with B2B industrial heat exchanger suppliers for EPC projects, OEM production, and large-scale energy plants. Welded Fin Tubes provide long service life and resistance to vibration and thermal loads, while Extruded Fin Tubes are also used in projects that require enhanced corrosion protection and uniform fin bonding.
Type of Sub-products

Helical Welded Fin Tubes Helical Welded Fin Tubes
Best for high temperature applications like boilers and economizers.

Longitudinal Welded Fin Tubes Longitudinal Welded Fin Tubes
Used in gas coolers, air preheaters, and waste heat recovery systems.

Serrated Welded Fin Tubes Serrated Welded Fin Tubes
Notched fins for improved heat dissipation and reduced fouling.
