| Standard | Astm A580, A313, A555, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

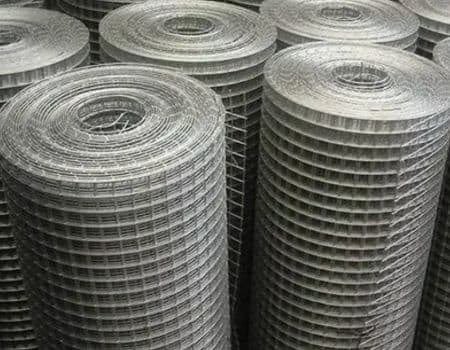

Welded Wire Mesh Supplier in Saudi Arabia Offering SS 304, SS 316 & SS 316L Grade Mesh
Bhansali Wire Mesh is the largest Welded Wire Mesh Supplier in Saudi Arabia offering fine-quality mesh products that are created with durability, strength and accuracy in terms of products. Welded Wire Mesh is made by welding the overlapping steel wires on each cross to form a grid structure which is rigid and uniform in shape. The structure is highly stable, and therefore the construction is applicable in construction reinforcing, fencing systems, industry safety barriers, and farming. It has got strong welded joints which give it better load-bearing capacity and long-life use in harsh conditions.
Most industrial purchasers tend to source metal products via reputable B2B marketplaces that can assist in maintaining the quality and supply of metal to infrastructural and engineering projects. Wire Mesh products are broadly utilised in industrial applications; the products are employed in filtration, screening, partitioning, and reinforcement. The main reason why Welded Wire Mesh is particularly popular is because of its high-level construction, exact grid alignment, and capability to resist mechanical load in different industrial settings.
Types of mesh used vary with regard to the requirements of filtration and screening as well as reinforcement. Even screening and sieving operations are usually done by Square Wire Mesh due to the equal spacing of the square openings. In the meantime, Dutch Wire Mesh has a highly woven structure and is used to carry out fine filtration and separation processes in chemical and industrial plants. Suppliers serve as a reliable Welded Wire Mesh Dealer In Saudi Arabia and are able to offer mesh in various wire diameters, mesh apertures, and grades of material depending on the requirements of construction, mining, and manufacturing industries.
Material & Grades of Welded Wire Mesh
Welded Wire Mesh is manufactured using a variety of materials to ensure high strength, corrosion resistance, and long-lasting performance. Selecting the appropriate material grade helps maintain structural stability and operational efficiency in industrial applications.
| Material | Grade / Standard | Specification | Type | Applications |
|---|---|---|---|---|
| Stainless Steel | SS 304 | ASTM A240 | Welded Wire Mesh | Industrial screening |
| Stainless Steel | SS 316 | ASTM A240 | Welded Wire Mesh | Chemical processing |
| Carbon Steel | ASTM A106 | ASTM | Welded Wire Mesh | Construction reinforcement |
| Galvanized Steel | IS Standard | IS | Welded Wire Mesh | Fencing systems |
| Mild Steel | IS 2062 | IS | Welded Wire Mesh | Structural support |
Key Features & Advantages
- Strong welded intersections for high structural stability
- Uniform mesh pattern for consistent performance
- Excellent corrosion and rust resistance
- Suitable for screening, filtration, and reinforcement
- Easy installation and maintenance
- Available in multiple mesh sizes and wire diameters
- Long service life in harsh environments
Chemical Composition (Example: Stainless Steel 304)
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 10.5 |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.0 max |
| Silicon (Si) | 1.0 max |
| Iron (Fe) | Balance |
Mechanical Properties (Example: SS 304 Welded Wire Mesh)
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa (min) |
| Yield Strength | 205 MPa (min) |
| Elongation | 40% (min) |
| Hardness | 201 HB (max) |
Equivalent Grade
| Standard | Grade |
|---|---|
| ASTM | A240 304 |
| UNS | S30400 |
| EN | 1.4301 |
| DIN | X5CrNi18-10 |
Type of Sub-products

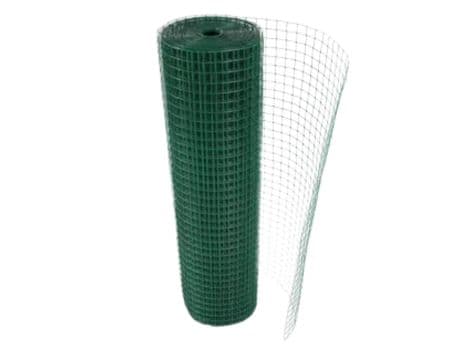

Pvc Coated Welded Wire Mesh Pvc Coated Welded Wire Mesh
This variant features a protective PVC coating over galvanized or mild steel wire mesh.
Stainless Steel Welded Wire Mesh Stainless Steel Welded Wire Mesh
Made entirely from stainless steel (grades like SS 304 or SS 316), this mesh is resistant to rust, chemicals, and high temperatures.
