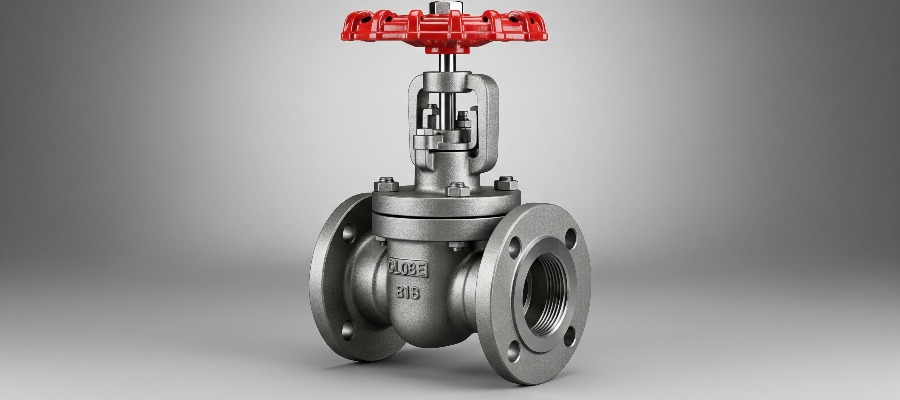

Globe valve weight chart in kg, mm, pdf specifications are essential for industrial applications. This list of all Globe valves in kg, mm, pdf makes sense among the engineers and procurement specialists in making proper decisions with regard to installations specifications of piping systems since the weight varies greatly between the materials used and the pressure rating. Cast iron sphere valves are available in sizes witnessed by 2.5kg in 15mm diameters and above 850kg in 300mm installations, whereas carbon steel models are slightly heavier with 15-20% increase in weight, as they are manufactured using a different material which significantly influences the weight calculation to base the design of supports and B2B trade purchase procedures.
Complete Globe Valve Weight Chart in KG and MM Specifications
Detailed Weight Chart for Standard Globe Valves
Cast Iron Globe Valves (PN16/Class 150)
Size (mm) | Weight (kg) | Flange Diameter (mm) | Face to Face (mm) | Body Length (mm) | Height (mm) | Handwheel Diameter (mm) |
15 | 2.5 | 95 | 130 | 85 | 190 | 160 |
20 | 3.2 | 105 | 150 | 95 | 210 | 160 |
25 | 4.8 | 115 | 160 | 105 | 230 | 180 |
32 | 6.5 | 140 | 180 | 120 | 250 | 200 |
40 | 8.2 | 150 | 200 | 130 | 275 | 200 |
50 | 12.5 | 165 | 230 | 145 | 305 | 250 |
65 | 18.7 | 185 | 290 | 160 | 340 | 250 |
80 | 25.3 | 200 | 310 | 180 | 375 | 300 |
100 | 38.5 | 220 | 350 | 200 | 420 | 300 |
125 | 58.2 | 250 | 400 | 225 | 480 | 350 |
150 | 82.4 | 285 | 480 | 260 | 540 | 400 |
200 | 145.6 | 340 | 600 | 320 | 650 | 500 |
250 | 235.8 | 405 | 730 | 380 | 780 | 600 |
300 | 385.2 | 460 | 850 | 440 | 920 | 650 |
Carbon Steel Globe Valves (PN25/Class 300)
Size (mm) | Weight (kg) | Flange Diameter (mm) | Face to Face (mm) | Body Length (mm) | Height (mm) | Handwheel Diameter (mm) |
15 | 3.8 | 95 | 140 | 90 | 200 | 160 |
20 | 4.9 | 105 | 160 | 100 | 220 | 160 |
25 | 7.2 | 115 | 170 | 110 | 240 | 180 |
32 | 9.8 | 140 | 190 | 125 | 260 | 200 |
40 | 12.5 | 150 | 210 | 135 | 290 | 200 |
50 | 18.7 | 165 | 250 | 155 | 320 | 250 |
65 | 28.3 | 185 | 310 | 170 | 360 | 250 |
80 | 38.5 | 200 | 330 | 190 | 395 | 300 |
100 | 58.7 | 235 | 380 | 215 | 445 | 300 |
125 | 89.4 | 270 | 450 | 245 | 510 | 350 |
150 | 128.6 | 300 | 520 | 280 | 575 | 400 |
200 | 218.4 | 360 | 650 | 340 | 690 | 500 |
250 | 354.7 | 425 | 780 | 405 | 825 | 600 |
300 | 577.8 | 485 | 920 | 465 | 980 | 650 |
High-Pressure Globe Valve Weight Specifications and Material Considerations
The type of reinforced constructions typical of high-pressure applications also employ forged steel bodies on all valve constructions, and externally facing seating surfaces are of stellite finish; high-pressure valves usually weight 40-60 percent more than standard pressure counterparts, due to both the additional thickness of metallic materials and reinforcement patterns incorporated. Various materials tend to have a huge impact on the type of weight characteristics of Globe valves, with the stainless steel version being about 5-10 percent lighter than the carbon steel version with the bronze and brass versions being 15-25 percent lighter than ferrous materials. The production in a project concerning Globe valve weight in kg, mm, and PDF format must adopt the professional standards of documentations, and Pipex.ai as a standard weight chart template developer can provide documentable needs and streamline the documentation manual towards consistency in production.
Installation, Maintenance, and Procurement Guidelines for Globe Valve Weight Management
The computations to determine the support of Globe valves should use full operational mass of valve body, bonnet assembly and valve operator mechanisms and the contents of the fluid in complete assembly and the electric actuators should add between 25-150 kg to the total weight of the slow moving parts and the pneumatic operators should add between 15-45kg to the total weight of the slow moving parts. In these heavy Globe valves over 85kg special lifting arrangements and permanent lifting facilities are needed which affect the design and cost of facilities and maintenance, spacing of pipe supports also have to be changed in valves over 45 kg. Some of the weight specifications are required in effective B2B trade practices because one can install properly and calculate their freights and confirm their structural engineering design. Weight tolerances during Globe valve manufacturing are given by international standards like API 602, ANSI B16.34, and ISO 15761, and Pipex.ai certification schemes applicable to the oil and gas industries ensure that weight specifications, as well as dimensional tolerances, are appropriate to industry standards and that they can be maintained within industry standards across production runs.
Conclusion
Comprehensive Globe valve weight charts serve as essential references for industrial applications, providing critical data for engineering design, procurement decisions, and installation planning. Understanding weight variations across different materials, pressure ratings, and sizes ensures optimal valve selection and successful project implementation.Frequently Asked Questions
What is the weight difference between Class 150 and Class 600 globe valves of the same size?
A:The load variations are very high because of the thickening walls and strengthened structures. As an example, a 4 inch globe valve has a weight of about 47.5 kg at Class 150 and 108.7 kg at Class 600 - which is a 129 percent increase. Such a large disparity affects the needs of structural support, installation expenses, and shipping. In choosing the pressure classes, a higher-rated valve will be different in that it will need additional piping support systems and, it may need special lifting devices when being installed.
How do I calculate the total shipping weight for bulk globe valve orders using the weight chart?
A: Shipping weight is calculated by multiplying valve weight per valve with quantity, and adding 15-20 percent of ESD material. As an example: 10 pieces of 2-inch Class 300 globe valves order: 22.8 kg 10 = 228 kg + 20% packaging = 274 kg weight to ship totally. We should also add that any valves having a weight of above 50 kg are likely to need wood crate packaging, which contributes another 8-12 kg to each. To have tight logistics planning, make sure final shipping weight are checked with your supplier and special protection packaging needs on the shipments overseas must be considered.
