Globe Valve Weight Chart in KG, MM, PDF

Globe Valve Weight Chart in KG, MM, PDF


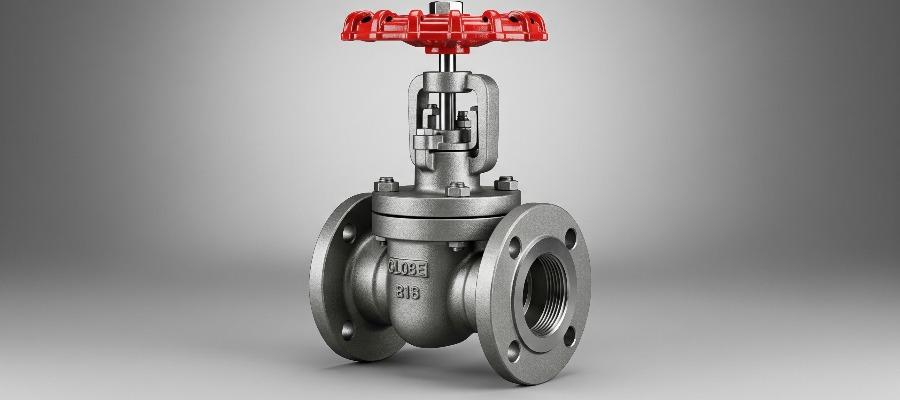

Globe valve weight chart in kg, mm, pdf specifications are essential for industrial applications. This list of all Globe valves in kg, mm, pdf makes sense among the engineers and procurement specialists in making proper decisions with regard to installations specifications of piping systems since the weight varies greatly between the materials used and the pressure rating. Cast iron sphere valves are available in sizes witnessed by 2.5kg in 15mm diameters and above 850kg in 300mm installations, whereas carbon steel models are slightly heavier with 15-20% increase in weight, as they are manufactured using a different material which significantly influences the weight calculation to base the design of supports and B2B trade purchase procedures.


Complete Globe Valve Weight Chart in KG and MM Specifications


Detailed Weight Chart for Standard Globe Valves

Cast Iron Globe Valves (PN16/Class 150)

Size (mm)

Weight (kg)

Flange Diameter (mm)

Face to Face (mm)

Body Length (mm)

Height (mm)

Handwheel Diameter (mm)

15

2.5

95

130

85

190

160

20

3.2

105

150

95

210

160

25

4.8

115

160

105

230

180

32

6.5

140

180

120

250

200

40

8.2

150

200

130

275

200

50

12.5

165

230

145

305

250

65

18.7

185

290

160

340

250

80

25.3

200

310

180

375

300

100

38.5

220

350

200

420

300

125

58.2

250

400

225

480

350

150

82.4

285

480

260

540

400

200

145.6

340

600

320

650

500

250

235.8

405

730

380

780

600

300

385.2

460

850

440

920

650


Carbon Steel Globe Valves (PN25/Class 300)

Size (mm)

Weight (kg)

Flange Diameter (mm)

Face to Face (mm)

Body Length (mm)

Height (mm)

Handwheel Diameter (mm)

15

3.8

95

140

90

200

160

20

4.9

105

160

100

220

160

25

7.2

115

170

110

240

180

32

9.8

140

190

125

260

200

40

12.5

150

210

135

290

200

50

18.7

165

250

155

320

250

65

28.3

185

310

170

360

250

80

38.5

200

330

190

395

300

100

58.7

235

380

215

445

300

125

89.4

270

450

245

510

350

150

128.6

300

520

280

575

400

200

218.4

360

650

340

690

500

250

354.7

425

780

405

825

600

300

577.8

485

920

465

980

650


High-Pressure Globe Valve Weight Specifications and Material Considerations

The type of reinforced constructions typical of high-pressure applications also employ forged steel bodies on all valve constructions, and externally facing seating surfaces are of stellite finish; high-pressure valves usually weight 40-60 percent more than standard pressure counterparts, due to both the additional thickness of metallic materials and reinforcement patterns incorporated. Various materials tend to have a huge impact on the type of weight characteristics of Globe valves, with the stainless steel version being about 5-10 percent lighter than the carbon steel version with the bronze and brass versions being 15-25 percent lighter than ferrous materials. The production in a project concerning Globe valve weight in kg, mm, and PDF format must adopt the professional standards of documentations, and Pipex.ai as a standard weight chart template developer can provide documentable needs and streamline the documentation manual towards consistency in production.


Installation, Maintenance, and Procurement Guidelines for Globe Valve Weight Management

The computations to determine the support of Globe valves should use full operational mass of valve body, bonnet assembly and valve operator mechanisms and the contents of the fluid in complete assembly and the electric actuators should add between 25-150 kg to the total weight of the slow moving parts and the pneumatic operators should add between 15-45kg to the total weight of the slow moving parts. In these heavy Globe valves over 85kg special lifting arrangements and permanent lifting facilities are needed which affect the design and cost of facilities and maintenance, spacing of pipe supports also have to be changed in valves over 45 kg. Some of the weight specifications are required in effective B2B trade practices because one can install properly and calculate their freights and confirm their structural engineering design. Weight tolerances during Globe valve manufacturing are given by international standards like API 602, ANSI B16.34, and ISO 15761, and Pipex.ai certification schemes applicable to the oil and gas industries ensure that weight specifications, as well as dimensional tolerances, are appropriate to industry standards and that they can be maintained within industry standards across production runs.


Conclusion

Comprehensive Globe valve weight charts serve as essential references for industrial applications, providing critical data for engineering design, procurement decisions, and installation planning. Understanding weight variations across different materials, pressure ratings, and sizes ensures optimal valve selection and successful project implementation.
