Buttwelded End Cap Manufacturer In India — Leak Proof Pipe Closure, Precision Weld Fit, Available In Cs / Ss / Alloy Grades
| Standards | Ansi B 16.9 Astm A403 Asme Sa403, Api 590 605 Asme B16.9, Asme B16.25 |
|---|---|
| Dimensions | Ansi B16.9, Ansi B16.28, Mss Sp 43 Type A, Mss Sp 43 Type B, Jis B2312, Jis B2313 |
| Materials | Stainless Steel, Duplex Steel, Carbon Steel, Alloys Steel, Copper Nickel, Nickel, Monel, Inconel, Hastelloy, Titanium, Brass, Aluminium, Smo 254 |

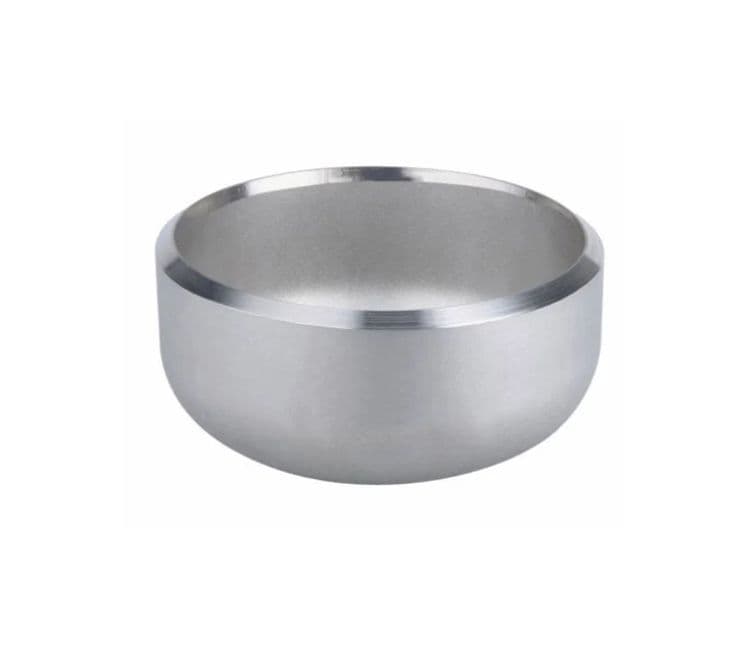

Buttwelded End Cap Manufacturer in India
New Era Pipes & Fittings is a reputable Buttwelded End Caps Manufacturer. Buttwelded end caps are important components to stop flow, avoid damage to pipe ends, and ensure safety in fluid or gas pressure systems. They are proven to provide strength, longevity, and reliability, making them one of the most common piping components used in oil and gas, chemical processing, power generation, and water treatment applications. We also supply Buttweld Pipe Nipple as part of our piping solutions.
Buttwelded end caps are available in a variety of sizes, wall thicknesses, and material grades through an established B2B industrial sectional and navigation platform. Their reliability to withstand pressure changes, resist corrosion, and provide long-term durability makes them a dependable and effective piping solution for industries requiring high-quality components for critical applications.
Technical Specification Table
| Specification Category | Details |
|---|---|
| Product Name | Buttwelded End Cap |
| Function | Closes end of piping system for permanent termination |
| Connection Type | Butt-weld (Beveled Ends) |
| Manufacturing Standard | ASME B16.9 / MSS SP-75 |
| Pipe Schedules | SCH 10 / 20 / 40 / 80 / 160 / XXS |
| Material Standards | ASTM / ASME SA |
| Available Grades | A234 WPB (CS), WP11/WP22 (Alloy), WP304/WP316 (SS) |
| Sizes | 1/2” to 72” (DN15–DN1800) |
| Weld Preparation | BE (Beveled Ends) as per ASME B16.25 |
| Surface Finish | Black / Pickled & Passivated / Sand Blasted |
| End Type | Long radius / Short radius options |
| Pressure Applications | Low, Medium & High Pressure Piping |
| Industry Use | Oil & Gas, Petrochemical, Power, Marine, Water Lines |
| Testing & Inspection | Visual, Hydro, PMI (on request), NDT (on request) |
| Certification | EN 10204 3.1 / 3.2 (on request) |
| Compliance | NACE MR0175 / ISO 15156 (for sour service materials) |
Type of Sub-products

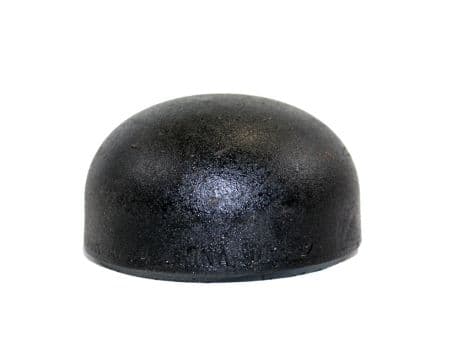

Carbon Steel End Cap Carbon Steel End Cap
A durable pipe fitting designed to seal the end of a pipeline. Made from high quality carbon steel, it provides a secure closure, prevents leakage, and withstands high pressure and temperature conditions in industrial piping systems.

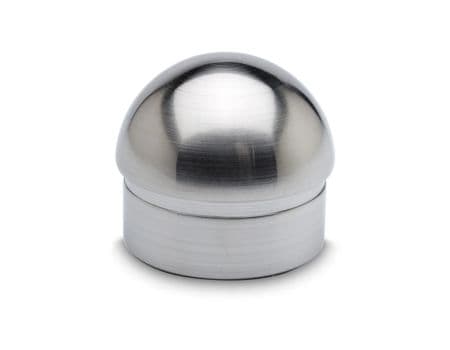

Dome End Cap Dome End Cap
A pipe fitting designed to seal the end of a pipeline with a rounded, dome-shaped closure. Its shape allows it to withstand high pressure and stress, providing superior strength and durability compared to flat end caps. Made from materials like carbon steel, stainless steel, or alloy steel, it ensures corrosion resistance and long-lasting performance in industrial piping systems.
