| Specifications | Astm, Asme, Din, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 1/4” Od, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Fix Length, Single Random, Double Random, Required Length |
| End | Plain End, Beveled End, Threaded |

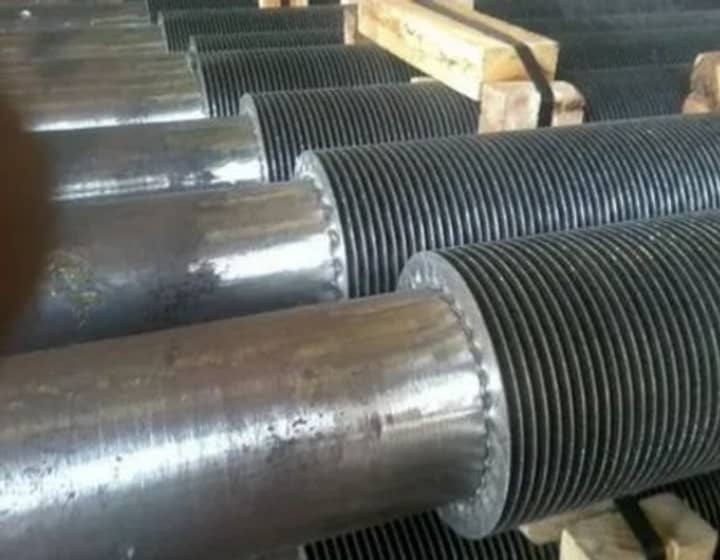

Helically Wound High Fin Tubes
Timex Metals is a prominent Helically Wound High Fin Tubes manufacturer, and it provides tubes that are engineered in a precise manner and are used in different industrial purposes to provide the maximum heat transfer efficiency. These tubes are developed by sophisticated helically wound fin technology that augments the surface area and also the thermal performance. Our Helically Wound High Fin Tubes come in a variety of diameters, lengths, and fin height applicable to any boiler, heat exchanger, condensers and other applications requiring the best in heat dissipation. Special quality checks are conducted on every tube to ensure durability, resistance to corrosion, and reliability of use in the long run.
Material, Grades & Chemical Composition – Helically Wound High Fin Tubes
| Material | Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Ni (%) | Mo (%) | Fe (%) | Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel | ASTM A179 | 0.06–0.18 | 0.27–0.63 | 0.25 max | 0.035 max | 0.035 max | — | — | — | Balance | — |
| Carbon Steel | ASTM A192 | 0.06–0.18 | 0.27–0.63 | 0.25 max | 0.035 max | 0.035 max | — | — | — | Balance | — |
| Stainless Steel | ASTM A213 TP304 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 18.0–20.0 | 8.0–11.0 | — | Balance | — |
| Stainless Steel | ASTM A213 TP316 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | Balance | — |
| Alloy Steel | ASTM A213 T11 | 0.05–0.15 | 0.30–0.60 | 0.50–1.00 | 0.025 max | 0.025 max | 1.00–1.50 | — | 0.44–0.65 | Balance | — |
Type of Sub-products
Carbon Steel Helically Wound High Fin Tubes Carbon Steel Helically Wound High Fin Tubes
These tubes are made using carbon steel as the base material and feature helically wound fins to maximize heat transfer.
Stainless Steel Helically Wound High Fin Tubes Stainless Steel Helically Wound High Fin Tubes
The helically wound fins ensure high thermal conductivity while maintaining structural integrity at elevated temperatures.
