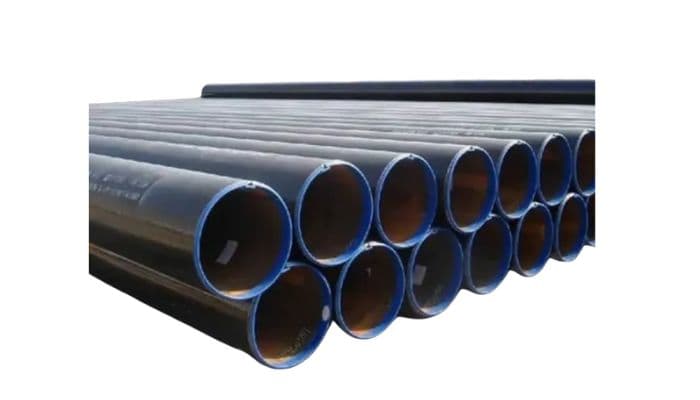

ERW (Electric Resistance Welded) pipes are widely used in various industrial sectors for their uniform wall thickness, smooth surface finish, and high strength. Whether for water transportation, structural applications, or oil and gas pipelines, ERW pipes are a go-to solution in modern engineering. One critical aspect in their application is understanding the ERW pipe weight chart in kg PDF, which plays a key role in logistics planning, structural design, and procurement.
Sample ERW Pipe Weight Chart
Here’s a simplified example of an ERW pipe weight chart for mild steel pipes:
Nominal Pipe Size (inches) | Outside Diameter (mm) | Wall Thickness (mm) | Weight (kg/m) |
1 | 33.4 | 3.2 | 2.41 |
2 | 60.3 | 3.65 | 5.44 |
3 | 88.9 | 5.0 | 10.90 |
4 | 114.3 | 6.0 | 16.85 |
6 | 168.3 | 7.1 | 29.37 |
8 | 219.1 | 8.0 | 43.87 |
