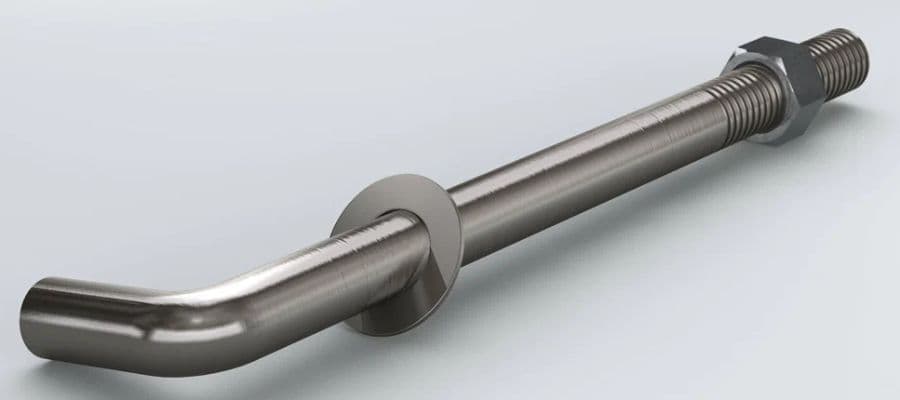

L Bolts manufactures are producers of heavy-duty anchoring fasteners that are used in concrete foundations, structural supports and industrial installations. These bolts have a threaded straight shank with right angle bend (L-shape) at one end, which would offer better anchorage and load resistance when installed into concrete. The L Bolts weight chart in KG, MM, PDF is a useful resource to civil engineers, construction contractors, fabricators, and procurement teams of proper project planning, foundation design, and estimating materials.
L bolts are usually provided together with nuts and washers, and they come in different load and environmental requirements in carbon steel, alloy stee,l and stainless steel. Correct measurements of dimensions and weight are useful in determining the cumulative material use, transportation loads, and structural safety factors.
The L Bolts Weight Chart gives good descriptions of the diameter and length of bolts, bend length, thread length, and the weight per unit. The types of L bolts are grouped according to the use (foundation bolts, anchor bolts, structural bolts), material grades, and also by ASTM, DIN, IS, and ISO standards. They are permanent in nature, have high pull-out resistance, are durable and therefore make them suitable in permanent anchoring in critical infrastructure projects.
L Bolts Weight Chart, L Bolts Weight per Piece, L Bolts Weight Chart in KG, L Bolts Weight Chart in MM, L Bolts Specifications PDF, L Bolts Weight Calculator
Weight Chart Tables
Chart 1: L Bolts Weight Chart – Metric Sizes
Bolt Size | Overall Length (mm) | Bend Length (mm) | Thread Length (mm) | Weight per Piece (kg) | Weight per 10 Pieces (kg) |
M12 | 200 | 40 | 60 | 0.30 | 3.00 |
M16 | 300 | 50 | 80 | 0.85 | 8.50 |
M20 | 400 | 60 | 100 | 1.80 | 18.00 |
M24 | 500 | 75 | 120 | 3.20 | 32.00 |
M30 | 600 | 90 | 150 | 6.10 | 61.00 |
These metric L bolts are widely used in foundation anchoring for machinery bases, steel columns, transmission towers, and infrastructure frameworks.
Chart 2: L Bolts Material Grades & Standards
Material Grade | Standard | Yield Strength (MPa) | Tensile Strength (MPa) | Typical Applications |
Mild Steel | IS 2062 | 250 | 410 | General construction |
ASTM A36 | ASTM | 250 | 400–550 | Structural foundations |
ASTM A193 B7 | ASTM | 720 | 860 | High-load anchoring |
ASTM A320 L7 | ASTM | 660 | 860 | Low-temperature service |
SS 304 | ASTM A276 | 205 | 515 | Corrosion resistance |
SS 316 | ASTM A276 | 205 | 515 | Marine & chemical areas |
Different material grades ensure compatibility with design loads, environmental exposure, and regulatory standards.
Chart 3: L Bolts Weight Chart – Foundation & Structural Use
Bolt Size | Length (mm) | Concrete Embedment (mm) | Nut Size | Weight per Piece (kg) |
M12 | 250 | 180 | M12 | 0.38 |
M16 | 350 | 250 | M16 | 1.05 |
M20 | 450 | 320 | M20 | 2.10 |
M24 | 550 | 400 | M24 | 3.70 |
M30 | 650 | 480 | M30 | 6.80 |
Foundation L bolts are extensively used to secure base plates, heavy equipment, silos, conveyors, and structural columns to concrete foundations.
L bolts offer excellent anchoring strength, resistance to vibration, and long-term structural stability. These L bolts weight charts in kg and mm assist in precise estimation, efficient procurement, and safe execution of civil, industrial, and infrastructure projects.
