304 Stainless Steel Fin Tube 304

₹78 - ₹135

Minimum Order : 50 piece

Customization as per requirements

304 Stainless Steel Fin Tube 304 – Specification

Specification Details
Fin ThicknessMinimum 0.8mm, Maximum 3 Mm
Fin HeightMinimum 0.25″(6.35 Mm), 1.5″(38 Mm)
Fin Density :Minimum 46 Fins Per Meter, Maximum 287 Fins Per Meter
MaterialCarbon Steel, Stainless Steel, Alloy Steel
Tubes Diameter30mm Od Minimum, 220mm Od Maximum

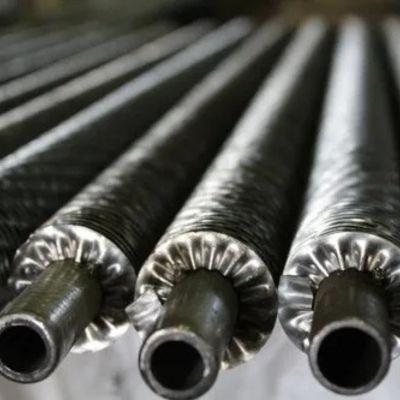

304 Stainless Steel Fin Tube

Timex Metals is one of the largest 304 Stainless Steel Fin Tube Manufacturers, offering high-quality finned tubes that are engineered to have maximum heat transfer and long life usage. We have a 304 stainless steel fin tube that has been produced under precision engineering and advanced technology, and so on, having excellent corrosion resistance, durability, and reliability in use across the industry. They are perfect with the heat exchangers, HVAC systems, and other thermal transfer equipment, and can be used in extreme conditions, producing a regular performance. We are also committed to quality, which is why we provide customized solutions to each client according to their needs, and it is one of the reasons why we become a reliable partner of the company, which aims at achieving excellence in using stainless steel products.


Fin MaterialFin GradeBase Tube MaterialBase Tube GradeTube OD (mm)Wall Thickness (mm)Fin Height (mm)Fin Pitch (FPI)Max Service Temp (°C)Approx. Weight (kg/m)
Stainless SteelAISI 304Stainless SteelASTM A213 TP30425.42.119105202.75
Stainless SteelAISI 304Stainless SteelASTM A213 TP30431.752.771195204.00
Stainless SteelAISI 304Stainless SteelASTM A213 TP30438.103.051385305.55
Stainless SteelAISI 304Stainless SteelASTM A213 TP30450.803.401575408.60
Stainless SteelAISI 304Stainless SteelASTM A213 TP30463.503.7617655011.90
Fin tubes are commonly used with 304 stainless steel, where trades off is between resistance to corrosion, thermal stability, and cost or price. The austenitic structure is easy to resist oxidation and scaling and can be used in moderately high temperature heat transfer on the air-side without damage to the surface integrity. These specifications are also examined in most system evaluations in conjunction with 321 Stainless Steel Fin Tube choices to comprehend the advantages of titanium stabilization when there is a high level of thermal cycling. In terms of B2B Lead generation, providing definite data on the grade of material, fin geometry, temperature, and weight per meter will assist the engineers and purchasers in swiftly determining the appropriateness, contrasting options, and proceeding with a firm technical decision.



Type of Sub-products

  • Straight Fin Tube.jpg

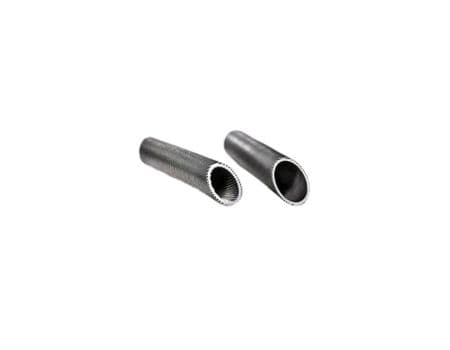

    Straight Fin Tube

    Tubes with linear fins welded or extruded along the length, providing increased heat transfer in compact spaces.

  • High Fin Density Tube.jpg

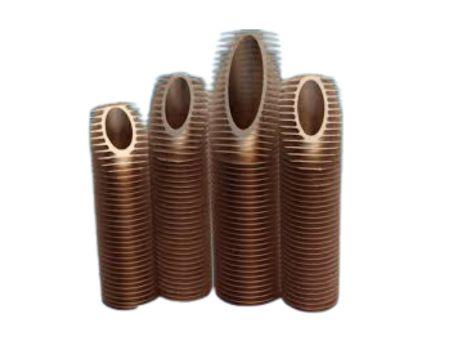

    High Fin Density Tube

    Tubes with a higher number of fins per unit length, designed for maximum heat transfer efficiency in limited space.

Frequently Asked Questions

What are 304 stainless steel fin tubes used for?

304 stainless steel fin tubes are primarily used in heat exchangers, HVAC systems, refrigeration units, and industrial cooling systems. They are designed to enhance thermal conductivity, improve heat transfer efficiency, and provide durability in demanding environments.

Why choose 304 stainless steel fin tubes over other materials?

304 stainless steel offers excellent corrosion resistance, especially in environments with moisture, chemicals, or high temperatures. It also provides strong mechanical properties and ensures longevity, making it ideal for industries such as chemical processing, food processing, and HVAC applications.

What advantages do 304 stainless steel fin tubes offer?

The key advantages of 304 stainless steel fin tubes include superior corrosion resistance, high thermal conductivity, long-lasting performance, and durability in harsh conditions. They can handle high temperatures and maintain their integrity over time, ensuring efficient heat transfer.
