Alloy Steel F22 Flanges Manufacturer | Astm A182 F22 Asme B16.5 Flange

Name: Alloy Steel F22 Flanges Manufacturer | Astm A182 F22 Asme B16.5 Flange
Brand: Nitech Stainless Inc
Availability: InStock
Rating: 5 (20 reviews)

Specification Details

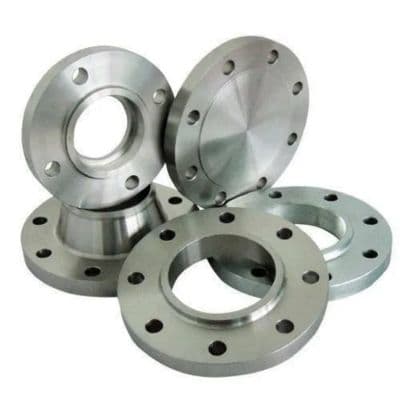

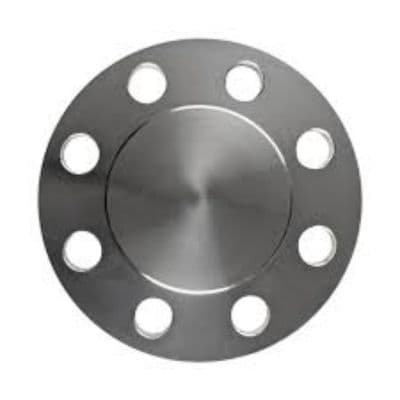

Flanges Types	Slip On, Lap Joint, Weld Neck, Long Weld Neck, Threaded, Blind, Companion
Class	150 Lbs, Pn 6, 10, 300 Lbs, 16, 25, 600 Lbs, 40, 900 Lbs, 64, 100, 1500 Lbs, 160, 2500 Lbs Asa 150, Asa 300
Size	1/2″ (15 Nb), 48″ (1200nb) Dn10~dn5000
Type	Raised Face (rf), Large Male Female (lmf), Small Tongue, Flat Face (ff), Groove, Small Male Female (smf), Ring Type Joint (rtj), Lap Joint Face (ljf), Large Tongue & Groove

Alloy Steel F22 Flanges Manufacturer | ASME B16.47 ASTM A182 F22 Carbon Steel Flanges

Nitech Stainless Inc. is reputed as a reliable Alloy Steel F22 Flanges manufacturer, which manufactures high-performance flanges used in critical piping and pressure vessel work. Alloy Steel F22 Flanges come in chromium-molybdenum alloy steel that provides excellent mechanical strength, better creep resistance and high-performance at high temperature. They are installed in the flanges that are used in refineries, petrochemical plants, power generation plants, and industrial processing systems where the high pressure and temperature systems are prevalent. Alloy Steel F22 Flanges are constructed to offer secure, leak free pipe connections and come in various build options (weld neck, slip-on, blind, threaded, and socket weld) to suit various industry needs.

Alloy Steel F22 Flanges are manufactured to meet ASTM, ASME, ANSI, and DIN standards to assure excellent dimensional accuracy, durability, and long service life in demanding applications. These products are usually distributed by a reputable b2b platform that caters to EPC contractors, fabrication firms as well as industrial purchasers throughout the globe. Alloy Steel F91 Flanges are also commonly used in piping systems that are high-temperature and high pressure due to the extra strength and the thermal stability. Flanges of Alloy Steel F22 are widely employed in steam lines, boilers, heat exchangers, pressure vessels, oil and gas pipelines, as well as chemical processing equipment where reliable service and integrity are needed.

Material & Grades Table – Alloy Steel F22 Flanges

Material	Grade	Standard	OD (mm)	Thickness (mm)	Weight (kg/m)
Alloy Steel	F22	ASTM A182	15 – 1200	10 – 150	As per size
Alloy Steel	F22 CL1	ASTM A182	15 – 1200	10 – 150	As per size
Alloy Steel	F22 CL3	ASTM A182	15 – 1200	10 – 150	As per size
Alloy Steel	F22	ASME SA182	15 – 1200	10 – 150	As per size
Alloy Steel	Cr-Mo F22	ANSI B16.5	15 – 1200	10 – 150	As per size
Alloy Steel	F22 Forged	DIN Standard	15 – 1200	10 – 150	As per size

The table above indicates some of the common grades, standards, and dimensional specifications of Alloy Steel F22 Flanges that are used in high temperature and high pressure applications. They are designed to give high strength, creep strength, and corrosion-resistant properties, thus being used in steam systems, refineries, petrochemical plants, power generation facilities, pressure vessels, and key industrial piping networks where high strength, creep resistance, and corrosion resistance are needed.
