Technical Specifications and Dimensional Standards of PFA Pipes

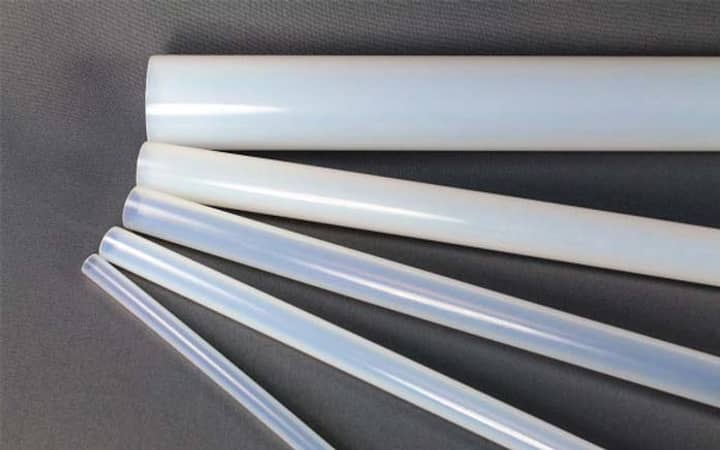

D Chel Oil and Gas offers high-performance PFA pipes; this type of pipe is widely used in industrial settings requiring high levels of purity, the ability to resist temperatures, and also the ability to resist chemical reactions. reactions. Being a reliable PFA pipe manufacturer, the pipes are made under the high-quality fluoropolymer technology that provides proper internal surfaces and superb flow properties, as well as a long life cycle. PFA pipes are commonly utilized in the chemical processing, pharmaceuticals, and electronics sectors, as they are capable of handling aggressive chemicals without being contaminated or degraded.
PFA pipes offer a broader scope of operating temperature and are the best in terms of permeation resistance compared to other plastic piping solutions like PVDF pipes, which are used in high-purity and high-temperature processes. Their strength is mechanical even when subjected to constant thermal stress, and they are very flexible, thus aiding in easy installation in the complex piping systems. They are also non-reactive and therefore cannot scale and accumulate, hence low maintenance costs in the long run.
To industrial buyers and project contractors, sourcing PFA pipes with the help of a certified B2B platform is a guarantee of a verified supplier, unity in the quality of materials, and the possibility of purchasing in large quantities. The systems make it easier to compare vendors and do technical specification and logistics planning to ensure businesses fulfill project deadlines effectively. As process industries are on the increase, PFA pipes remain a favorable option for fluid handling systems that are safe, durable, and contamination free.
PFA Fractional Size Chart
| O.D (in) | I.D. (in) | Wall (in) | Nominal O.D. (in) | O.D. Tolerance (in) | Wall Tolerance (in) | Working Pressure* PSIG(bar) | Burst Pressure+ PSIB(bar) | Minimum Bend Radius(in) |
| 1/8 | 1/16 | 0.031 | 0.125 | +/- 0.004 | +/- 0.003 | 480 (33) | 2400(165) | 1/2 |
| 5/32 | 3/32 | 0.031 | 0.157 | +/- 0.005 | +/- 0.003 | 376 (26) | 1882(129) | 1/2 |
| 3/16 | 1/8 | 0.031 | 0.188 | +/- 0.005 | +/- 0.003 | 308 (21) | 1538 (106) | 1/2 |
| 3/16 | 1/16 | 0.062 | 0.188 | +/- 0.005 | +/- 0.003 | 640 (44) | 3200 (220) | 1/2 |
| 1/4 | 3/16 | 0.031 | 0.25 | +/- 0.005 | +/- 0.003 | 224 (15) | 1120 (77) | 1 |
| 1/4 | 1/8 | 0.062 | 0.25 | +/- 0.005 | +/- 0.003 | 480 (33) | 2400 (166) | 1/2 |
| 5/16 | 1/4 | 0.031 | 0.313 | +/- 0.005 | +/- 0.003 | 176 (12) | 878 (60) | 3/4 |
| 5/16 | 3/16 | 0.062 | 0.313 | +/- 0.005 | +/- 0.003 | 376 (26) | 1882 (130) | 1/2 |
| 3/8 | 5/16 | 0.031 | 0.375 | +/- 0.005 | +/- 0.003 | 144 (9.9) | 721 (50) | 2-1/2 |
| 3/8 | 1/4 | 0.062 | 0.375 | +/- 0.005 | +/- 0.003 | 380 (21) | 1538 (106) | 1 |
| 7/16 | 3/8 | 0.031 | 0.438 | +/- 0.005 | +/- 0.003 | 122 (8.4) | 612 (42) | 8 |
| 7/16 | 5/16 | 0.062 | 0.438 | +/- 0.005 | +/- 0.003 | 259 (18) | 1297 (89) | 12 |
| 1/2 | 7/16 | 0.031 | 0.5 | +/- 0.006 | +/- 0.003 | 106 (7.3) | 531 (37) | 4 |
| 1/2 | 3/8 | 0.062 | 0.5 | +/- 0.006 | +/- 0.003 | 224 (15) | 1120 (77) | 2 |
| 9/16 | 1/2 | 0.031 | 0.562 | +/- 0.006 | +/- 0.003 | 94 (6.5) | 469 (32) | 4-1/2 |
| 5/8 | 9/16 | 0.031 | 0.625 | +/- 0.006 | +/- 0.003 | 84 (5.8) | 420 (29) | 5-1/2 |
| 5/8 | 1/2 | 0.062 | 0.625 | +/- 0.006 | +/- 0.003 | 176 (12) | 878 (60) | 3 |
| 11/16 | 5/8 | 0.031 | 0.688 | +/- 0.006 | +/- 0.003 | 76 (5.2) | 380 (26) | 4 |
| 3/4 | 11/16 | 0.031 | 0.75 | +/- 0.006 | +/- 0.003 | 69 (4.8) | 347 (24) | 8 |
| 3/4 | 5/8 | 0.062 | 0.75 | +/- 0.006 | +/- 0.003 | 144 (9.9) | 721 (50) | 6 |
| 7/8 | 3/4 | 0.062 | 0.875 | +/- 0.007 | +/- 0.003 | 122 (8.4) | 612 (42) | 12 |
| 1 | 7/8 | 0.062 | 1 | +/- 0.010 | +/- 0.003 | 106 (7.3) | 531 (37) | 16 |
| 1.1 | 1 | 0.04 | 1.1 | +/- 0.010 | +/- 0.004 | 76 (5.2) | 380 (26) | |
| 1-1/8 | 1 | 0.062 | 1.125 | +/- 0.015 | +/- 0.003 | 94 (6.5) | 469 (32) | |
| 1-1/4 | 1-1/8 | 0.062 | 1.25 | +/- 0.015 | +/- 0.004 | 84 (5.8) | 420 (29) | |
| 1-3/8 | 1-1/4 | 0.04 | 1.375 | +/- 0.015 | +/- 0.004 | 76 (5.2) | 380 (26) |
PFA Metric Sizes
| O.D. (mm) | I.D. (mm) | O.D./I.D. Tolerance (mm) | O.D. (in) | I.D. (in) | O.D./I.D. Tolerance (in) | Working Pressure* PSIG(bar) | Burst Pressure+ PSIG(bar) | Minimum Bend Radius(in) |
| 4 | 2 | +/- 0.11 | 0.157 | 0.078 | +/- 0.004 | 480 (33) | 2400 (166) | 1/2 |
| 5 | 3 | +/- 0.11 | 0.197 | 0.118 | +/- 0.004 | 376 (26) | 1882 (130) | 1/2 |
| 6 | 4 | +/- 0.13 | 0.236 | 0.157 | +/- 0.005 | 308 (21) | 1538 (106) | 1/2 |
| 7 | 5 | +/- 0.13 | 0.276 | 0.197 | +/- 0.005 | 259 (18) | 1297 (89) | 1-3/4 |
| 8 | 6 | +/- 0.13 | 0.315 | 0.236 | +/- 0.005 | 224 (15) | 1120 (77) | 1-3/4 |
| 9 | 7 | +/- 0.13 | 0.354 | 0.276 | +/- 0.005 | 197 (14) | 985 (68) | 2-1/2 |
| 10 | 8 | +/- 0.13 | 0.393 | 0.315 | +/- 0.005 | 176 (12) | 878 (60) | 2-1/2 |
| 12 | 10 | +/- 0.15 | 0.472 | 0.393 | +/- 0.006 | 144 (9.9) | 721 (50) | 3-1/2 |
| 14 | 12 | +/- 0.15 | 0.551 | 0.472 | +/- 0.006 | 122 (8.4) | 612 (42) | 4 |
| 16 | 14 | +/- 0.15 | 0.63 | 0.551 | +/- 0.006 | 106 (7.3) | 531 (37 ) | 5-1/2 |
PFA Pipes Clients Project
Product Supplied Quantity Cities (India) PFA Pipes for the Oil and gas industry 124 Pieces Bareilly, Uttar Pradesh PFA Pipes supplied to the Pharmaceutical processing industry 150 Pieces Mumbai, Maharashtra PFA Pipes supply for Piping 160 Pieces Srinagar, Jammu, and Kashmir PFA Pipes supplied to industry 190 Pieces Raipur, Chhattisgarh
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| PFA Pipes for the Oil and gas industry | 124 Pieces | Bareilly, Uttar Pradesh |
| PFA Pipes supplied to the Pharmaceutical processing industry | 150 Pieces | Mumbai, Maharashtra |
| PFA Pipes supply for Piping | 160 Pieces | Srinagar, Jammu, and Kashmir |
| PFA Pipes supplied to industry | 190 Pieces | Raipur, Chhattisgarh |
Type of Sub-products
Pfa Tubes Pfa Tubes
PFA (Perfluoroalkoxy) tubes are high performance fluoropolymer tubes designed to offer exceptional chemical resistance, high temperature stability, and excellent mechanical properties. Made from Perfluoroalkoxy resin, these tubes are ideal for industries that require a reliable material for transporting aggressive chemicals, high purity fluids, and gases in demanding environments.
Pfa Pipes & Tubes Pfa Pipes & Tubes
PFA (Perfluoroalkoxy) pipes and tubes are high performance fluoropolymer products engineered to provide exceptional chemical resistance, high temperature stability, and mechanical strength in the most demanding environments. These pipes and tubes are designed to meet the needs of industries that require a safe, reliable, and durable solution for transporting aggressive chemicals, high purity fluids, and gases.
Corrugated Pfa Pipes Corrugated Pfa Pipes
Corrugated PFA pipes have a flexible, spiral wound construction that allows for easy handling, bending, and installation. They are designed for applications requiring flexibility and movement within the system.
