What are PTFE fittings used for?

PTFE fittings are used to connect pipes, tubes, and other components in systems that require resistance to extreme temperatures, chemicals, and high-pressure conditions. They are commonly used in industries like pharmaceuticals, chemicals, food processing, and electronics.

Why should I use PTFE fittings instead of other materials?

PTFE fittings offer superior chemical resistance, high-temperature stability, and non-stick properties, making them ideal for applications where other materials may degrade. Their low friction and durable nature also reduce the risk of leakage and system failures in

What types of PTFE fittings are available?

PTFE fittings come in various forms such as elbows, tees, reducers, flanges, unions, and custom fittings. They are designed to meet the needs of specific systems, ensuring secure and leak-proof connections in chemical and high-pressure environments.

Ptfe Fittings For Heavy Duty Industrial Use High Chemical Resistance Long Term Reliability Manufacturer And Supplier For Bulk Project And Oem Requirements

Name: Ptfe Fittings For Heavy Duty Industrial Use High Chemical Resistance Long Term Reliability Manufacturer And Supplier For Bulk Project And Oem Requirements
Brand: D Chel Oil & Gas
Availability: InStock
Rating: 5 (7 reviews)

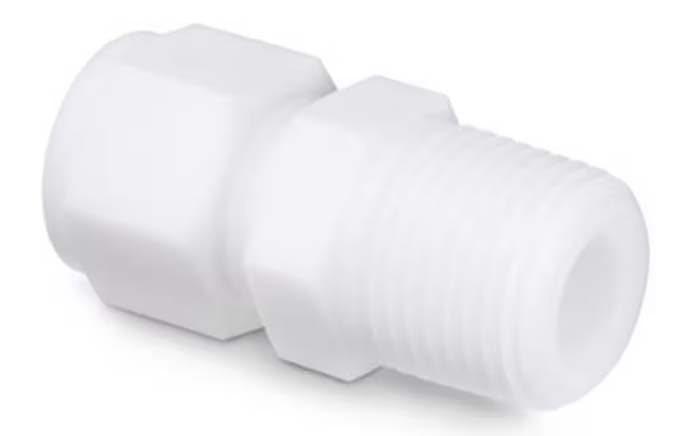

Top Quality Ptfe Fittings Supplier In India

₹67 - ₹153

Minimum Order : 50 piece

Customization as per requirements

Specification Details
Density	2.1 G/cm³, 2.3 G/cm³
Temperature Range	200°c, +260°c
Dielectric Strength	50 Kv/mm, 120 Kv/mm

Industrial Grade PTFE Pipe Fittings Designed for Safe Fluid Transfer in Chemical Pharma and Process Plants with Consistent Quality and Supply Capacity

D Chel Oil and Gas will be a household name in the industrial supply market, where they have high-performance PTFE fittings that can be used in the arduous chemical, petrochemical and fluid handling conditions. The high level of chemical resistance, non-reactive behaviour, and capability of functioning under heavy pressures and high temperatures are the main characteristics of PTFE fittings which make them a favourite among the community. These characteristics render them applicable in the corrosive conditions wherein the metal or traditional plastic fittings strike out, which guarantees them a long service and uninterrupted functionality of the system.

Since the company is a PTFE fittings manufacturer as a B2B company, the emphasis is on providing low-tolerance devices that are of high industrial quality. The PTFE fittings have great sealing power, low friction and need minimum maintenance, which contributes to the limitation of operation time. The high mechanical strength and the lightweight nature of their design make them suitable to be used in pipelines, processing units and other specialised industry assemblies.

PTFE fittings are commonly combined with products from a PVDF fittings supplier in complex industrial systems to meet both chemical compatibility and structural stability requirements.
This combination is widely used in industries where purity and safety are critical, such as pharmaceuticals, water treatment, and specialty chemicals.
PTFE components complement PVDF systems by offering superior resistance to aggressive chemical media.
The use of PTFE fittings alongside PVDF systems also ensures reliable performance under high-temperature operating conditions.

PTFE fittings are also effective with the solutions that an FRP fitting manufacturer puts forward to the large industrial applications on the infrastructure. PTFE fittings are used together with FRP piping systems to enhance the overall resistance to corrosion and increase the lifespan of equipment. This synergy helps in the effective transfer of fluids in harsh working environments, and hence PTFE fittings are a necessary component in modern industrial and process engineering application.

PTFE 45 Deg Elbow

25	16	24	33	4.5	2	50	50	EMS45-25-16/PE
40	16	38	48	5	2	80	80	EMS45-40-16/PE
50	16	48	58	5	2	100	100	EMS45-50-16/PE
65	16	63	75	6	2	130	130	EMS45-65-16/PE
80	16	78	90	6	2	160	160	EMS45-80-16/PE
100	16	98	111	6.5	2	150	150	EMS45-100-16/PE
125	16	123	137	7	1.5	190	190	EMS45-125-16/PE
150	16	148	165	8.5	1.5	225	225	EMS45-150-16/PE
200	10	198	214	8	1.5	300	300	EMS45-200-10/PE
200	16	198	220	11	1.5	300	300	EMS45-200-16/PE
250	10	248	165	8.5	1.5	375	375	EMS45-250-10/PE
250	16	248	272	12	1.5	375	375	EMS45-250-16/PE
300	10	298	316	9	1.5	450	450	EMS45-300-10/PE
300	16	298	324	13	1.5	450	450	EMS45-300-16/PE

PTFE 90 Deg Elbow

Nom. (mm)	Pmax. (bar)	I.D. (mm)	O.D. (mm)	W.T. (mm)	R= Factor x I.D.	R (mm)	L (mm)	Article number
25	16	24	33	4.5	2	50	50	EMS90-25-16/PE
32	16	32	42	5	2	64	64	EMS90-32-16/PE
40	16	38	48	5	2	80	80	EMS90-40-16/PE
50	16	48	58	5	2	100	100	EMS90-50-16/PE
65	16	63	75	6	2	130	130	EMS90-65-16/PE
80	16	78	90	6	2	160	160	EMS90-80-16/PE
100	16	98	111	6.5	2	150	150	EMS90-100-16/PE
125	16	123	137	7	1.5	190	190	EMS90-125-16/PE
150	16	148	165	8.5	1.5	225	225	EMS90-150-16/PE
200	10	198	214	8	1.5	300	300	EMS90-200-10/PE
200	16	198	220	11	1.5	300	300	EMS90-200-16/PE
250	10	248	165	8.5	1.5	375	375	EMS90-250-10/PE
250	16	248	272	12	1.5	375	375	EMS90-250-16/PE
300	10	298	316	9	1.5	450	450	EMS90-300-10/PE
300	16	298	324	13	1.5	450	450	EMS90-300-16/PE

PTFE Reducers

DN1	DN2	Overall Length	Wall Thickness	Pmax	Article
(mm)	(mm)	(mm)	(mm)	(bar)	number
32	25	40	5	16	ROS-32-25-16/PE
40	25	60	5	16	ROS-40-25-16/PE
50	25	60	5	16	ROS-50-25-16/PE
80	25	130	5	16	ROS-80-25-16/PE
100	25	180	5	16	ROS-100-25-16/PE
40	32	20	5	16	ROS-40-32-16/PE
50	32	20	5	16	ROS-50-32-16/PE
80	32	90	5	16	ROS-80-32-16/PE
100	32	140	5	16	ROS-100-32-16/PE
50	40	20	5	16	ROS-50-40-16/PE
80	40	90	5	16	ROS-80-40-16/PE
100	40	140	5	16	ROS-100-40-16/PE
80	50	70	5	16	ROS-80-50-16/PE
100	50	120	5	16	ROS-100-50-16/PE
125	50	180	5	16	ROS-125-50-16/PE
150	50	240	5	16	ROS-150-50-16/PE
80	65	40	5	16	ROS-80-65-16/PE
100	65	90	5	16	ROS-100-65-16/PE
125	65	150	5	16	ROS-125-65-16/PE
150	65	210	5	16	ROS-150-65-16/PE
100	80	50	5	16	ROS-100-80-16/PE
125	80	110	5	16	ROS-125-80-16/PE
150	80	170	5	16	ROS-150-80-16/PE
200	80	290	6	16	ROS-200-80-16/PE
125	100	60	5	16	ROS-125-100-16/PE
150	100	120	5	16	ROS-150-100-16/PE
200	100	240	6	16	ROS-200-100-16/PE
150	125	60	5	16	ROS-150-125-16/PE
200	125	180	6	16	ROS-200-125-16/PE
200	150	120	6	16	ROS-200-150-16/PE
250	150	240	6	10	ROS -250-150-10/PE
300	150	360	6	10	ROS-300-150-10/PE
250	200	120	6	10	ROS-250-200-10/PE
300	200	240	6	10	ROS-300-200-10/PE
350	200	360	7	10	ROS-350-200-10/PE
400	200	480	7	10	ROS-400-200-10/PE
300	250	120	6	10	ROS-300-250-10/PE
350	250	240	7	10	ROS-350-250-10/PE
400	250	360	8	10	ROS-400-250-10/PE
350	300	120	7	10	ROS-350-300-10/PE
400	300	240	8	10	ROS-400-300-10/PE
400	350	120	8	10	ROS-400-350-10/PE

PTFE Couplings

DN	L	Pmax	L2	NPT/BSPP	Do	Di	Article
(mm)	(mm)	(bar)	(mm)	(inch)	(mm)	(mm)	number
150	200	10	57	6″ NPT	178	153	CTS-24/4-200
100	200	10	51	4″ NPT	127	102	CTS-16/4-200
75	200	10	45	3″ NPT	99	77	CTS-12/4-200
50	200	10	42	2″ NPT	73	51	CTS-8/4-200
50	150	10	42	2″ NPT	73	51	CTS-8/4-150
40	200	10	39	1 1/2″ NPT	61	39	CTS-6/4-200
40	150	10	39	1 1/2″ NPT	61	39	CTS-6/4-150
25	150	10	32	1″ NPT	48	26	CTS-4/4-150
20	150	10	26	3/4″ NPT	38	20	CTS-3/4-150
10	150	10	26	1/2″ NPT	32	13	CTS-2/4-150
10	150	10	20	3/8″ NPT	29	10	CTS-2/4-150
10	150	10	26	1/2″ BSPP	32	13	CTS-2/4-150
25	150	10	32	1″ BSPP	48	26	CTS-4/4-150

PTFE Fitting Clients Project

Product Supplied Quantity Cities (India)
PTFE Fittings for Oil and gas industry 114 Pieces Bareilly, Uttar Pradesh
PTFE Fittings supplied to the Pharmaceutical processing industry 140 Pieces Mumbai, Maharashtra
PTFE Fittings supply for Piping 160 Pieces Srinagar, Jammu, and Kashmir
PTFE Fittings supplied to industry 180 Pieces Raipur, Chhattisgarh

Product Supplied	Quantity	Cities (India)
PTFE Fittings for Oil and gas industry	114 Pieces	Bareilly, Uttar Pradesh
PTFE Fittings supplied to the Pharmaceutical processing industry	140 Pieces	Mumbai, Maharashtra
PTFE Fittings supply for Piping	160 Pieces	Srinagar, Jammu, and Kashmir
PTFE Fittings supplied to industry	180 Pieces	Raipur, Chhattisgarh

Type of Sub-products

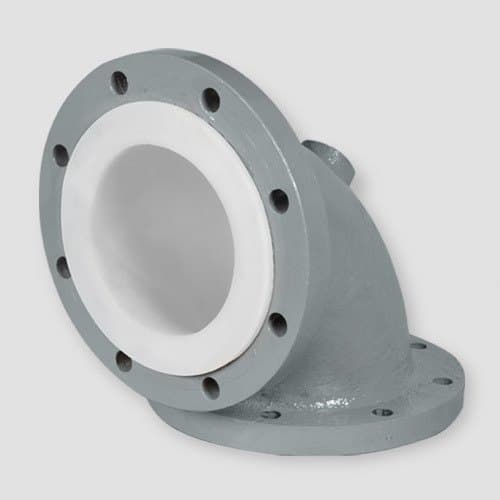

Ptfe Elbows
Ptfe Elbows
These fittings allow for changes in direction in piping systems, typically at 90 degree or 45 degree angles. PTFE elbows are used to connect pipes that need to turn corners while maintaining the material’s resistance to chemicals and high temperatures.

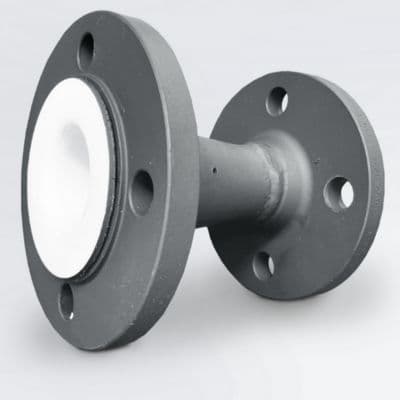

Ptfe Reducers
Ptfe Reducers
PTFE reducers are used to connect pipes or tubes of different sizes. These fittings help reduce the pipe diameter in a smooth, leak proof manner, ensuring a consistent flow of material.

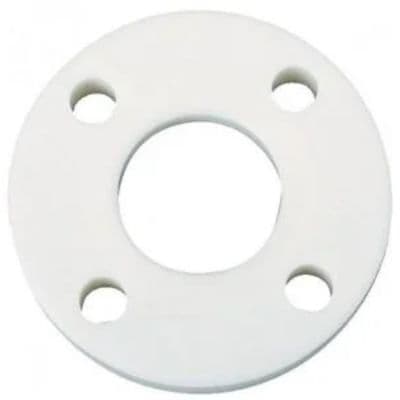

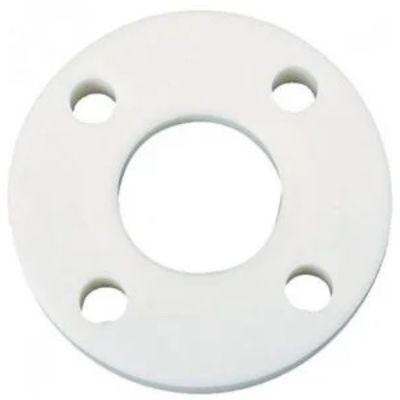

Ptfe Flanges
Ptfe Flanges
PTFE flanges are used to join two sections of piping or to mount components. These flanges provide a high level of sealing to prevent leaks and maintain integrity under high pressure and high temperature conditions.
