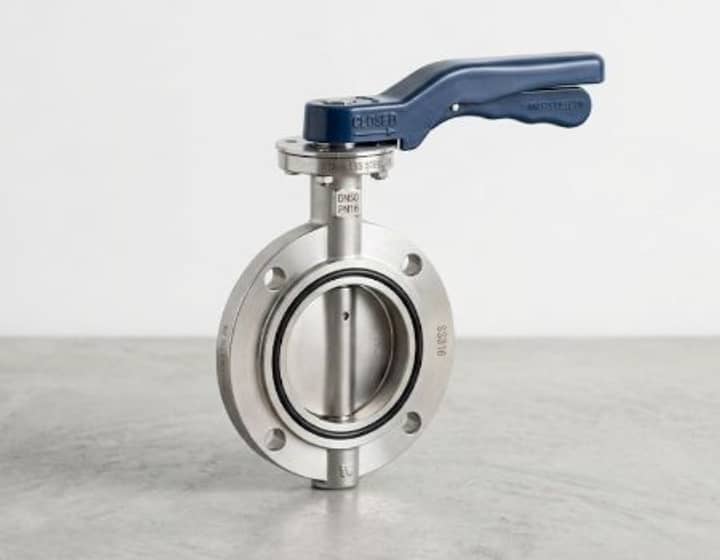

Stainless Steel Wafer Valve Supplier In Dubai | Astm A351 Cf8, Cf8m & Cf3m Stainless Steel Valves

Stainless Steel Wafer Valve Supplier In Dubai | Astm A351 Cf8, Cf8m & Cf3m Stainless Steel Valves

Specification Details
Size range4 2, 1/2" 36"
Pressure RatingAnsi Class 150, 300, 600, 900, 1500, 2500 / Pn 10, Pn 16, Pn 25, Pn 40, Pn 63, Pn 100
Trim MaterialStainless Steel, Hastelloy, Inconel

Stainless Steel Wafer Valve Supplier in Dubai | API 609, ASME B16.34 & BS 5155 Standard Valves

Ridhiman Alloys is a leading Stainless Steel Wafer Valve Supplier In Dubai that provides high-quality industrial valve solutions to the petrochemical plants, oil and gas industries, marine systems, food processing plant, pharmaceutical plants, and water treatment uses. These valves are produced with high quality stainless steel materials so that they have high corrosion resistance, reliable sealing efficiency, and high durability of operation in harsh industry conditions. Stainless Steel Wafer Valves are designed to be compactly installed, provide an efficient flow control and leak-free shut-off operation in high-pressure and high-temperature piping systems. Their high-tech accuracy of construction, accuracy of dimensions, and high mechanical power make it fit in the critical industrial use that needs high reliability in service and long life of operation.

Stainless Steel Wafer Valves can be procured by the industrial buyers in a reliable B2B Marketplace, making it easy to procure the required volume of the products, customized to the dimension, and with reliable support of the industrial supply. These valves come in lug type, double flange, resilient seated, metal seated and high-performance types that can be used in various industrial piping and engineering needs. They are designed to achieve high sealing efficiency, easy operational control, and reliable pressure-handling operation, and thus find wide application in refinery pipelines, offshore drilling systems, industrial automation plants, HVAC systems, and chemical processing industries that have high requirements of reliable and efficient solutions to valve operations.Stainless steel wafer valves are highly resistant to corrosion, have high sealing capacity, and are reliable in terms of operation reliability in harsh industrial piping systems. Their suitability to robust Ball Valve solutions add to efficiency in the flow management, safety in operations, and long-term performance of both important industrial and engineering projects.

Material & Grades of Stainless Steel Wafer Valves

MaterialGrade / StandardSpecificationTypeApplications
Stainless SteelASTM A351 CF8API 609Wafer Butterfly ValveGeneral Industrial Piping
Stainless SteelASTM A351 CF8MAPI 609Wafer Butterfly ValveChemical & Marine Applications
Stainless SteelASTM A351 CF3API 609Low Carbon Wafer ValveFood & Pharmaceutical Industries
Stainless SteelASTM A351 CF3MAPI 609Corrosion Resistant Wafer ValveOil & Gas Processing

Key Features & Advantages

  • Excellent Corrosion Resistance
  • High Pressure Resistance
  • Leak-Proof Performance
  • Compact Wafer Design
  • Long Service Life

Chemical Composition (Example: ASTM A351 CF8M Wafer Valve)

ElementPercentage (%)
Chromium (Cr)18.0 – 21.0
Nickel (Ni)9.0 – 12.0
Molybdenum (Mo)2.0 – 3.0
Carbon (C)≤0.08
Iron (Fe)Balance

Mechanical Properties (Example: ASTM A351 CF8M Wafer Valve)

PropertyValue
Tensile Strength485 MPa (Min)
Yield Strength205 MPa (Min)
Elongation30% (Min)
Hardness≤223 HB

Equivalent Grade

StandardGrade
ASTMA351 CF8 / CF8M / CF3 / CF3M
APIAPI 609
EN1.4308 / 1.4408 / 1.4306 / 1.4409
UNSJ92600 / J92900 / J92500 / J92800



Type of Sub-products

Frequently Asked Questions

Can Stainless Steel Wafer Valves be customized?

What sizes and pressure ratings are available?

What types of Stainless Steel Wafer Valves are available?
