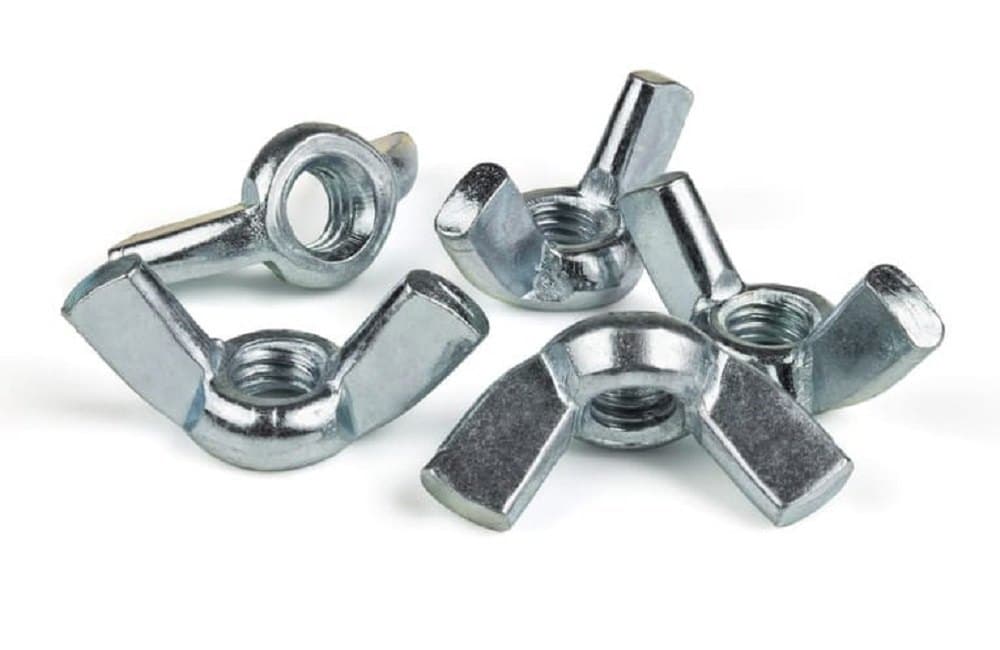

Wing Nuts, Easy Hand Tightening Design, Reliable Holding Quality, Equipment & Maintenance Use, Manufacturer In India
| Size | M3 to M100 |
|---|---|
| Type | Bolt, Threaded Rod, Nut, Studs, Coated, Nails, Custom Fasteners |
| Standard | Din, Iso, Jis, Gb, Is, Astm, Bs |
| Length | 1/8″, 4″ |
| Material | Stainless Steel, Phosphor Bronze, Monel, Inconel, Incoloy, Hastelloy, Silicon Bronze, Nickel |
Wing Nuts for Tool Free Assembly Reusable Fastening Solution Supplier in India
Caliber Enterprise supported by industry experience and specialization in functional fastening solutions is a credible Wing Nuts Manufacturer with products that are fast and efficient to manufacture by manual fastening in industrial and mechanical operations. Wing nuts are also common in the assembly of machines, equipments and during their maintenance when there is need to make adjustments without the use of tools. These nuts are made of hardy materials that guarantee reliability in strength, resistance to corrosion and even performance in harsh conditions. PEEK Nuts also make an effective substitute to be used in applications which need lightweight building, chemical resistance and electrical insulation.
Through the ergonomic nature of wing nuts, tightening and loosening can easily be done by hand and hence it is ideal in repetitive work, and where adjustments need to be made on-site where speed and convenience are mostly important. The secure grip makes sure they do not fall over and they do not spend a lot of time during maintenance operations. Cage Nuts are commonly used in installations which require strong threaded connections in square mounting holes, such as in installations of panels, enclosures and rack systems. These solutions in fasteners are combined to contribute to flexibility, installation ease, and durability in performance throughout the span of industry and commercial usage.
Material Grade & Specification Table
| Material | Standard | Thread Size | Type | Wing Span (mm) | Thickness (mm) | Surface Finish | Approx. Weight (kg/100 pcs) |
|---|---|---|---|---|---|---|---|
| Carbon Steel | DIN 315 Form A | M4 | German Type | 22 | 4 | Zinc Plated | 0.9 |
| Carbon Steel | DIN 315 Form A | M6 | German Type | 30 | 6 | Zinc Plated | 2.4 |
| Stainless Steel | DIN 315 A2 | M5 | Rounded Wing | 26 | 5 | Plain | 1.6 |
| Stainless Steel | DIN 315 A2 | M8 | Rounded Wing | 36 | 8 | Plain | 5.1 |
| Brass | DIN 315 | M6 | Flat Wing | 30 | 6 | Natural | 2.7 |
| Nylon (PA6) | DIN 315 | M6 | Insulated Wing | 32 | 6 | Black | 1.1 |
- Where They are Best--They are used in those arrangements where tightening and loosening are often necessary by human hands, as in inspection covers, adjustable brackets, jigs and removable panels.
- Form & Quality Control: It is produced with symmetrical wings and controlled thread depth to allow comfortable grip, equal distribution of loads, and being able to hold without the need of spanners and tools.
- Available Grades: It is typically available in Mild Steel, Stainless steel 202/304, and Brass which is produced in accordance to DIN 315 and ISO standards depending on the needs of the application.
- Additional Value: Ideal in those low-to-middle load situations where speed of assembly, accessibility and repeat usage are more important than high-torque operation.
Wing Nuts Clients Project
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Wing Nuts for Temporary Fixtures | 167 Pieces | Indore |
| Wing Nuts for Electrical Panel Mounting | 193 Pieces | Nashik |
| Wing Nuts for Tool-Free Assembly Systems | 181 Pieces | Rajkot |
| Wing Nuts for Maintenance & Service Use | 206 Pieces | Tiruppur |
Type of Sub-products

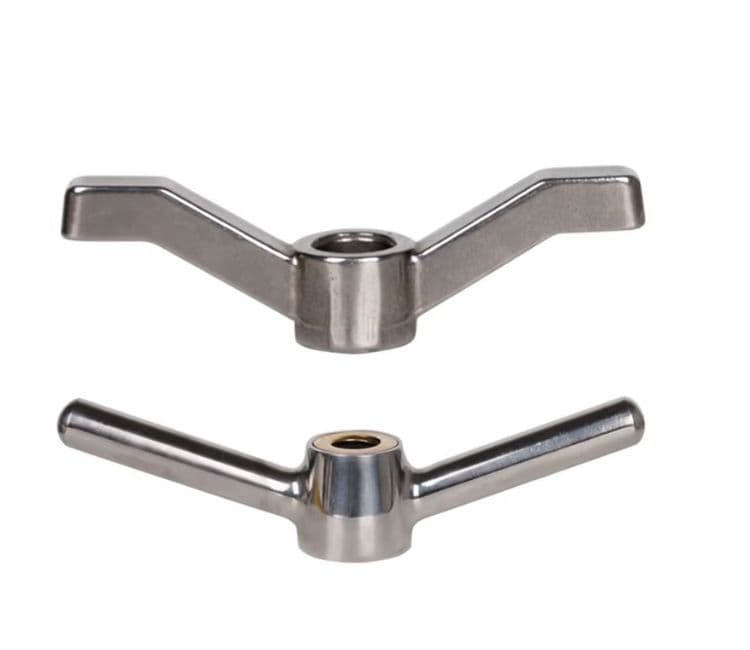

Heavy Duty Wing Nuts Heavy Duty Wing Nuts
Heavy Duty Wing Nuts are strong, hand-operable fasteners with wing-shaped projections for easy tightening and loosening without tools, designed for heavy-duty applications in machinery, industrial equipment, and construction where quick adjustments are needed.

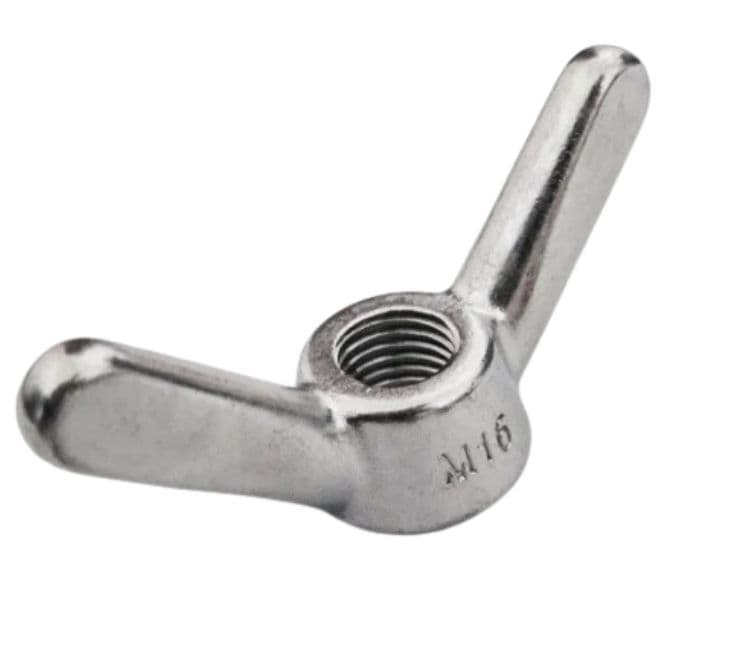

Stainless Steel Wing Nuts Stainless Steel Wing Nuts
Stainless Steel Wing Nuts are corrosion-resistant fasteners with wing-shaped projections for easy hand tightening and loosening, offering durability and strength, widely used in machinery, automotive, marine, and industrial applications requiring tool-free adjustments.
