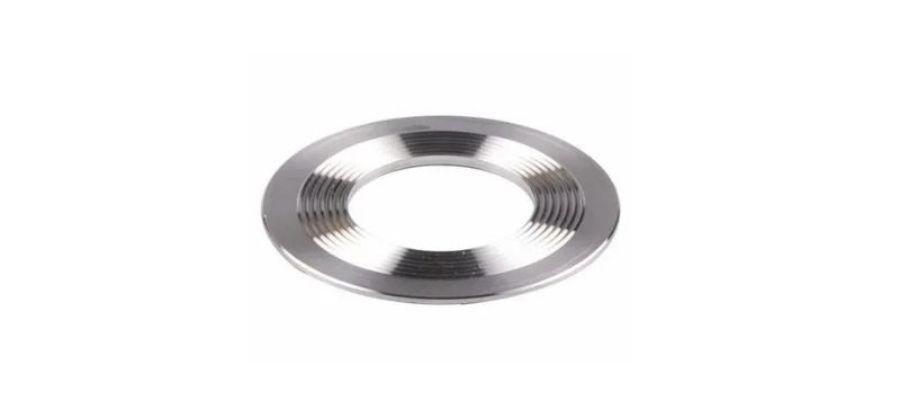

As an outer ring spiral wound gasket manufacturer, we are considered as a frontrunner in the global gasket business. Working with the Gasket Inner Diameter (in mm), Gasket Outer Diameter (in mm), Thickness (in mm) and Material Density (in g/cm 3 ), customers will easily create the Spiral Wound Gasket with Outer Ring weight Chart in MM, KG, PDF formats. We are also the specialists in the production of a diverse variety of sealing products, such as metallic gaskets, ring joint gaskets, and industrial sealing products that comply with the international standards of performance and reliability.
Our Spiral Wound Gasket with Outer Ring Weight Chart enables the customer to come up with the accurate weight estimates by simply inputting the dimension and material specifications of the gasket they need into our calculation tool. The chart provides prompt, precise, and dependable data on weights of various gasket sizes and materials which helps engineers, fabricators, and procurement departments make their choices and be sure of getting the appropriate fit to their projects.
Spiral Wound Gasket with Outer Ring Weight Chart, Spiral Wound Gasket with Outer Ring Per Foot, Weight Of Spiral Wound Gasket with Outer Ring Per Meter, Spiral Wound Gasket with Outer Ring Weight Chart Pdf.
Spiral Wound Gasket with Outer Ring Weight Chart
316/FG/CS (weights in grams) | ||||||
DN | 150 | 300 | 600 | 900 | 1500 | 2500 |
1/2 | 31 | 40 | 40 | 62 | 62 | 78 |
3/4 | 41 | 61 | 61 | 70 | 70 | 87 |
1 | 51 | 69 | 69 | 87 | 87 | 106 |
1/4 | 51 | 79 | 79 | 98 | 98 | 155 |
1 1/2 | 79 | 100 | 100 | 113 | 113 | 190 |
2 | 100 | 121 | 121 | 291 | 291 | 293 |
2 1/2 | 139 | 169 | 169 | 367 | 367 | 387 |
3 | 115 | 200 | 100 | 304 | 375 | 500 |
4 | 239 | 269 | 269 | 444 | 500 | 682 |
5 | 200 | 365 | 578 | 635 | 705 | 955 |
6 | 220 | 485 | 661 | 882 | 851 | 1175 |
8 | 320 | 630 | 835 | 1420 | 1240 | 1715 |
10 | 445 | 770 | 1380 | 1926 | 1926 | 2606 |
12 | 800 | 975 | 1695 | 2669 | 2764 | 3363 |
14 | 1025 | 1628 | 1714 | 2336 | 3462 | III |
16 | 1355 | 1720 | 2435 | 2569 | 4106 | III |
18 | 1030 | 1887 | 2465 | 2985 | 4638 | III |
20 | 1350 | 2215 | 3190 | 3444 | 5031 | III |
24 | 1450 | 3370 | 3485 | 5000 | 7173 |
|
Spiral Wound Gasket with Inner and Outer Ring weight chart
316/FG/316/CS (weights in grams) | |||||||
DN | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
1/2 | 0,034 | 0,045 | 0,045 | 0,045 | 0.063 | 0,063 | 0,077 |
3/4 | 0,047 | 0,065 | 0,067 | 0,067 | 0,073 | 0,074 | 0.089 |
1 | 0,05 | 0,08 | 0,076 | 0,076 | 0,92 | 0,095 | 0.11 |
1/4 | 0,072 | 0,089 | 0,089 | 0.088 | 0,122 | 0,122 | 0,164 |
1/2 | 0.1 | 0,12 | 0,177 | 0,177 | 0,132 | 0,132 | 0,201 |
2 | 0.13 | 0.155 | 0,154 | 0,154 | 0,293 | 0,293 | 0,308 |
2 1/2 | 0,181 | 0,208 | 0,208 | 0,208 | 0,385 | 0,385 | 0,403 |
3 | 0,2 | 0,26 | 0,267 | 0,267 | 0,367 | 0,403 | 0,539 |
4 | 0.33 | 0.35 | 0,349 | 0,45 | 0,532 | 0,569 | 0,757 |
5 | 0,355 | 0,485 | 0,478 | 0,693 | 0,744 | 0,813 | 1,038 |
6 | 0,4 | 0.635 | 0,619 | 0,781 | 0,987 | 0,965 | 1,312 |
8 | 0.52 | 0.801 | 0,838 | 1 | 1,493 | 1,418 | 1,846 |
10 | 0,722 | 0,98 | 1,055 | 1,573 | 2,135 | 2,135 | 2,757 |
12 | 1,12 | 1,287 | 1,346 | 1,9 | 2,708 | 3,082 | 3,591 |
14 | 1,35 | 1,893 | 1,912 | 2,069 | 2,79 | 3,831 | // |
16 | 1,73 | 2,177 | 2,256 | 2,8 | 3,152 | 4,573 | // |
18 | 1,66 | 2,561 | 2,665 | 3,05 | 3,755 | 5,238 | // |
20 | 1.95 | 2,947 | 2,993 | 3,766 | 4,3 | 5,709 | // |
24 | 2,5 | 3,919 | 4,007 | 4,585 | 5,87 | 7,948 | // |
Spiral Wound Gasket with Inner and Outer Ring weight chart – SS Outer ring
316/FG/316/316 (weights in grams) | ||||||
DN | 150 | 300 | 600 | 900 | 1500 | 2500 |
1/2 | 35 | 49 | 49 | 66 | 66 | 82 |
3/4 | 49 | 70 | 70 | 78 | 78 | 92 |
1 | 50 | 80 | 76 | 95 | 95 | 110 |
1 1/4 | 71 | 89 | 89 | 108 | 108 | 165 |
1 1/2 | 85 | 112 | 112 | 130 | 130 | 202 |
2 | 128 | 153 | 153 | 290 | 290 | 310 |
2 1/2 | 190 | 210 | 210 | 386 | 386 | 407 |
3 | 195 | 250 | 250 | 360 | 360 | 555 |
4 | 315 | 340 | 420 | 525 | 525 | 525 |
5 | 335 | 500 | 685 | 742 | 800 | 1050 |
6 | 390 | 615 | 670 | 978 | 941 | 1325 |
8 | 450 | 760 | 950 | 1420 | 1400 | 1870 |
10 | 670 | 890 | 1300 | 1880 | 1930 | 2600 |
12 | 1080 | 1208 | 1710 | 2727 | 3140 | 3665 |
14 | 1255 | 1860 | 1980 | 2790 | 4000 | III |
16 | 1590 | 2085 | 2665 | 3145 | 4675 | /// |
18 | 1340 | 2350 | 2840 | 3640 | 5290 | III |
20 | 1620 | 2720 | 3585 | 4185 | 5760 | /// |
24 | 2060 | 3635 | 3735 | 4380 | 5900 | /// |
For engineers, maintenance teams, and procurement professionals who require accurate data for material estimation and equipment compatibility, it is essential to understand the Spiral Wound Gasket with Outer Ring Weight Chart in mm and kg. Knowing the approximate weight based on gasket dimensions and material composition ensures improved project planning, cost efficiency, and sealing reliability - whether the gaskets are used in high-pressure pipelines, heat exchangers, or critical flange connections.
