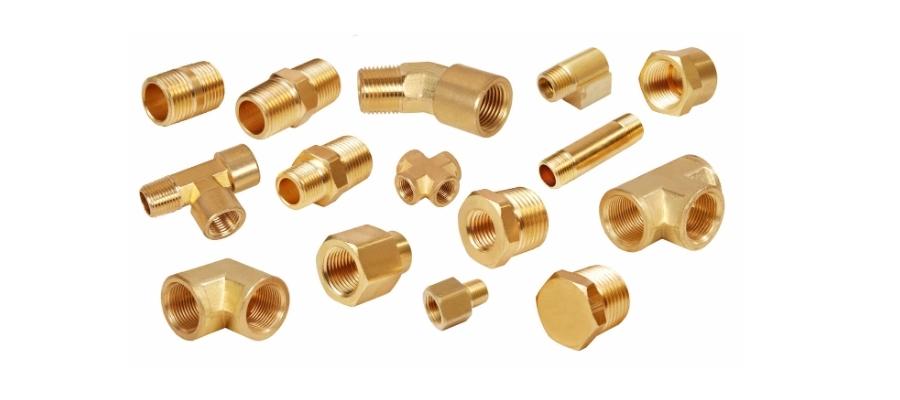

The Brass Pipe Fittings manufacturers produces the brass components of different sizes and shapes in large quantities to satisfy the needs of the plumbing and industrial requirements. The Brass Pipe Fittings Weight Chart in KG, MM, PDF is a reference guide that should be used by plumbers, contractors, and engineers in their planning of projects and purchasing of materials. In addition to standard brass fittings, manufacturers also provide Brass Fittings to join together dissimilar sizes of pipes and Brass pipes to join and extend pipes. The knowledge of weight specifications assists in proper estimation of material, cost of transportation and load evaluation of the structure.
The Brass Pipe Fittings weight chart gives a detailed information about fitting dimension, thread, and weight per piece of various types and size. There are brass fittings which are grouped according to the method of connection (threaded, compression and push-fit) as well as the nominal sizes in both millimeters and inches and designs dependent on the application. Copper-zinc alloy composition has a good resistance to corrosion, high temperature, and long life performance, thus, such fittings are the best in use in water supply systems, gas distribution networks, heating installations, and industrial piping systems where reliability is a major consideration.
Brass Pipe Fittings Weight Chart, Brass Pipe Fittings Per Foot, Brass Pipe Fittings Weight Chart in KG, Brass Pipe Fittings Weight Chart in MM, Brass Pipe Fittings Weight Per Piece, Brass Pipe Fittings Weight Calculator, Brass Pipe Fittings Specifications PDF
Weight Chart Tables
Chart 1: Brass Elbow & Tee Fittings Weight Chart
Fitting Type | Size (mm) | Size (inches) | Thread Type | Weight per Piece (kg) | Weight per 10 Pieces (kg) |
Elbow 90° | 15 | 1/2" | BSP | 0.045 | 0.45 |
Elbow 90° | 20 | 3/4" | BSP | 0.085 | 0.85 |
Elbow 90° | 25 | 1" | BSP | 0.120 | 1.20 |
Elbow 90° | 32 | 1-1/4" | BSP | 0.180 | 1.80 |
Elbow 45° | 15 | 1/2" | BSP | 0.040 | 0.40 |
Elbow 45° | 20 | 3/4" | BSP | 0.075 | 0.75 |
Tee Equal | 15 | 1/2" | BSP | 0.065 | 0.65 |
Tee Equal | 20 | 3/4" | BSP | 0.125 | 1.25 |
Tee Equal | 25 | 1" | BSP | 0.180 | 1.80 |
Tee Equal | 32 | 1-1/4" | BSP | 0.260 | 2.60 |
Elbow and tee fittings are the most commonly used components in plumbing systems for directional changes and branch connections. These weight specifications assist in calculating total material requirements and shipping logistics for construction projects.
Chart 2: Brass Fitting Material Grades & Standards
Material Grade | Copper % | Zinc % | Lead % | Standard | Tensile Strength (MPa) |
CuZn39Pb3 | 58-60 | 37-40 | 2.5-3.5 | IS 1879 | 340-420 |
CZ132 | 58-60 | Remainder | <0.3 | BS 143 | 320-400 |
C83600 | 83-86 | 6-8 | 4-6 | ASTM B62 | 240-310 |
CW617N | 57-60 | 37-40 | <0.3 | EN 12165 | 360-450 |
Ms58 | 57-59 | 39-42 | 2-3 | DIN 1709 | 330-410 |
Different material grades ensure compliance with international standards and specific application requirements for strength, corrosion resistance, and safety in potable water systems.
Chart 3: Brass Compression & Union Fittings Weight Chart
Fitting Type | Size (mm) | Size (inches) | Wall Thickness (mm) | Weight per Piece (kg) | Length (mm) |
Compression Straight | 15 | 1/2" | 2.0 | 0.045 | 50 |
Compression Straight | 22 | 3/4" | 2.0 | 0.085 | 55 |
Compression Straight | 28 | 1" | 2.0 | 0.120 | 60 |
Compression Elbow | 15 | 1/2" | 2.0 | 0.050 | 45 |
Compression Elbow | 22 | 3/4" | 2.0 | 0.095 | 50 |
Compression Tee | 15 | 1/2" | 2.0 | 0.065 | 55 |
Compression Tee | 22 | 3/4" | 2.0 | 0.125 | 60 |
Union Female | 15 | 1/2" | 2.5 | 0.070 | 52 |
Union Female | 20 | 3/4" | 2.5 | 0.110 | 58 |
Union Male | 15 | 1/2" | 2.5 | 0.065 | 50 |
Compression and union fittings allow easy installation with no need to solder and are easily disassembled when required. These integrative Brass Pipe Fittings weight charts give precise information regarding the material procurement, cost estimation and project planning in residential, commercial, and industrial plumbing.
