| Size range | 1000 Mm X 2000mm, 1250mm X 2500mm, 2000mm X 4000mm To 6000mm, 1220mm X 2440mm, 1500mm X 3000mm To 6000mm, 4' X 8' |
|---|---|
| Range | 5mm, 150mm |
| Thickness | 4.0mm, 100mm |
| Specialize | Shim Sheet, Perforated Sheet |

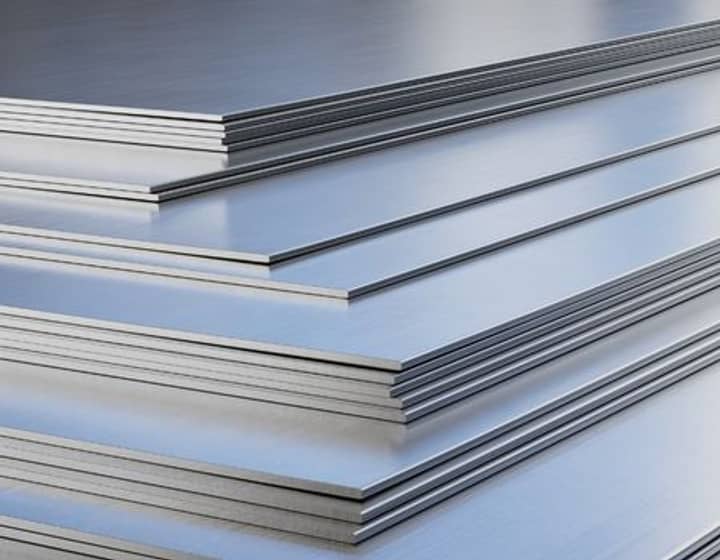

800ht Incoloy Sheet Manufacturer in india Delivering Export-Quality Sheets Conforming to ASTM, ASME & EN Standards
United Stainless LLP is one of the biggest 800HT Incoloy Sheet Manufacturers in India that provide high-performance nickel-iron-chromium alloy sheets designed to perform exceptionally in the high-temperature setting, in regards to oxidation, carburization, and creep resistance. 800HT Incoloy Sheet is utilized in heat treatment furnaces, petrochemical reactors, and thermal processing equipments wherein it is necessary to have high-performing nickel-iron-chromium alloy sheets. Its manageable chemistry and grain structure guarantee stable operation on constant high temperature load.
These sheets are presented as a trusted source of B2B marketplace in various thicknesses and surface finishes to make them useful in harsh industry. The product line also consists of Incoloy Sheet of general heat resistance, 800 Incoloy Sheet of balanced mechanical strength and 800H Incoloy Sheet of increased creep rupture in pressure vessels and furnace components.
800HT Incoloy Sheet is developed to be used in harsh thermal environments, offers a high level of metallurgical stability, oxidation and mechanical integrity. Being a reliable 800HT Incoloy Sheet Sheet Supplier In India, these sheets are applicable in reformer tubes, radiant heaters and parts of high temperatures in use in structures that demand high performance and long life.
Material & Grades of 800HT Incoloy Sheet
The grade of the material requires is selected to support excellent performance at high-temperature and high-pressure conditions through strict control of chemicals to enhance strength, corrosion, and structural stability in the long run.
| Material | Grade / Standard | UNS No. | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Incoloy Alloy | 800HT | N08811 | 1.0 – 40.0 | 1000 – 2000 | Furnace components |
| Incoloy Alloy | 800H | N08810 | 1.0 – 35.0 | 1000 – 2000 | Pressure vessels |
| Incoloy Alloy | 800 | N08800 | 0.5 – 50.0 | 1000 – 2000 | Heat exchangers |
| Incoloy Alloy | 825 | N08825 | 0.8 – 30.0 | 1000 – 2000 | Chemical processing |
Key Features & Benefits
- Superior creep and rupture strength at high temperatures
- Excellent oxidation and carburization resistance
- Stable grain structure for long-term service
- Good weldability and formability
- Suitable for furnaces, reactors, and thermal plants
- Available in standard and customized sizes
Incoloy 800 / 800H / 800HT Sheet & Plates Equivalent Grades :
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 - X8NiCrAlTi32-21 XH32T
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Chemical Composition of Incoloy Alloy 800 / 800H / 800HT Sheet & Plate
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
Type of Sub-products

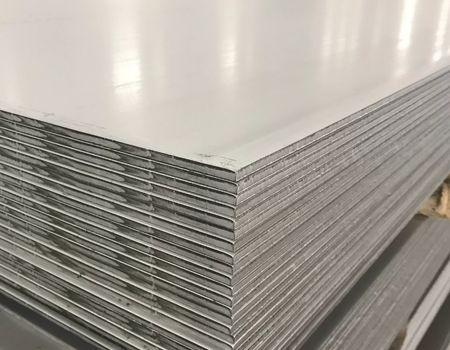

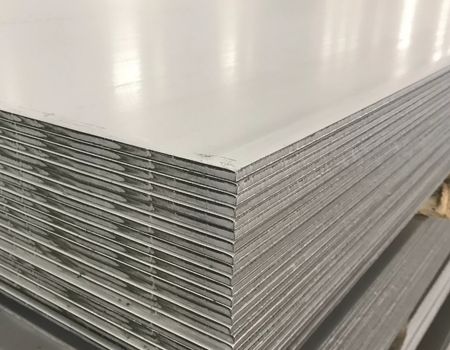

Hot Rolled 800ht Incoloy Sheets Hot Rolled 800ht Incoloy Sheets
Hot rolled 800HT Incoloy sheets are produced by rolling the metal at high temperatures, resulting in a rougher surface finish and slightly less precise dimensions. These sheets are commonly used in applications where high strength and heat resistance are critical, such as furnace parts and heat exchangers.

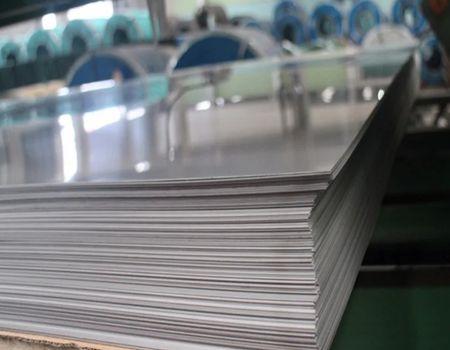

Cold Rolled 800ht Incoloy Sheets Cold Rolled 800ht Incoloy Sheets
Cold rolled 800HT Incoloy sheets undergo further processing at room temperature, enhancing surface finish and dimensional accuracy. They are ideal for precise applications requiring smooth surfaces, including aerospace components and chemical processing equipment.
