What are the different types of nuts used in industries?

Industries commonly use hex nuts, lock nuts, flange nuts, wing nuts and dome nuts depending on load, accessibility and vibration resistance. Lock nuts are ideal where vibration or movement may loosen other types. Each nut type has a specific use and material selection is based on application needs such as corrosion resistance or tensile strength.

How are nuts tested before dispatch?

Nuts undergo thread tolerance inspection, proof load testing, dimensional checks and surface finish verification. We also perform random torque checks and salt spray tests for coated products. All batches come with quality certificates and third-party inspections can be arranged on request.

Do you provide custom sizes or finishes for nuts?

Yes, we manufacture nuts in custom diameters, thread types (metric, UNC/UNF) and heights based on client specifications. Finishes such as zinc plating, hot-dip galvanizing, black oxide and PTFE coating are available. Custom packaging, labeling and rapid logistics support are also offered for bulk industrial orders.

Nuts Internally Threaded Fastening Components Used To Lock And Secure Bolted Joints Manufacturer In India

Name: Nuts Internally Threaded Fastening Components Used To Lock And Secure Bolted Joints Manufacturer In India
Brand: Timex Metals
Availability: InStock
Rating: 4 (1 reviews)

$0.88 - $1.88

Minimum Order : 150 piece

Customization as per requirements

Specification Details
Size	20*20
Type	Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners
Standard	Din, Iso, Jis, Gb, Is, Bs, Astm
Length	100mm
Material	Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze

Nuts Available in Different Thread Sizes Profiles and Thickness Options for Industrial Assembly Requirements

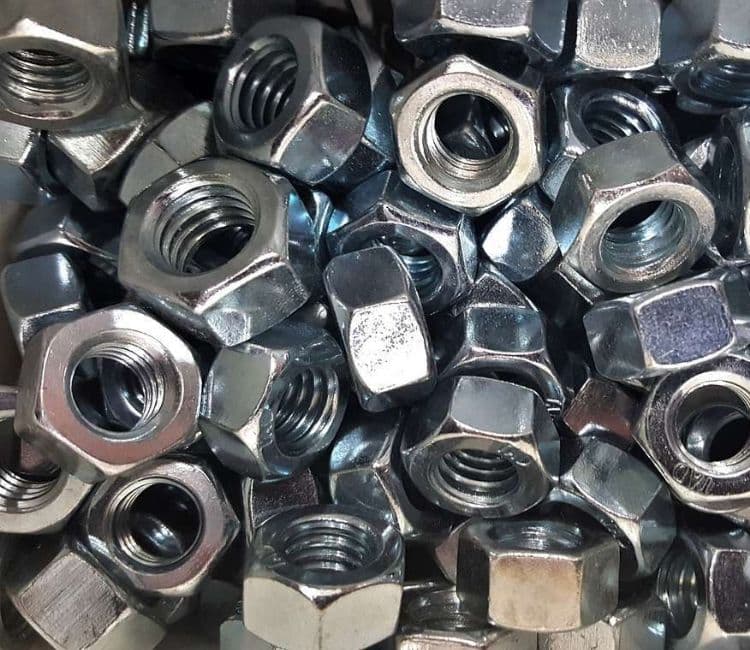

Timex Metals is a reputable and established Nuts Manufacturer that is known to enjoy mass production of diverse and precise fastening products used in industry. Our nuts are made out of high-quality raw material in order to be strong, durable, and not corrode. We produce varieties of nuts, such as hex nuts, lock nuts, and flange nuts, among others, that can be used in construction, the automobile industry, marine, and engineering industries. Our high-level production facilities and quality result in a high level of compliance with the national and international requirements, which makes us a good option when a consumer wants to buy a quality fastener.

Structural steelwork, machinery, pressure equipment, and piping In structural steelwork, pressure equipment, and CAD pipeline In structural steelwork, machinery, pressure equipment, and piping, threaded assemblies are secured using nuts where high reliability in load retention is necessary. The grade of material used, proof load, and height of the nut are all directly related to the joint integrity and vibration resistance, and the choice of such fasteners is never made without consulting the Bolts to ensure that they are compatible in terms of mechanical strength. On the sites devoted to B2B Leads, the definite specification tables assist the buyer in a rapid comparative overview of the grades, execute the correct calculation of the material amounts, and choose the correct fastening solutions that suits project and service terms.

Nuts – Material & Specification Table

Material	Grade / Standard	Nut Type	Size (mm)	Thread Type	Height (mm)	Surface Finish	Proof Load	Approx. Weight (kg/1000 pcs)
Carbon Steel	ASTM A307	Hex Nut	M8	Metric	6.5	Zinc Plated	307 MPa	2.3
Carbon Steel	IS 1364	Heavy Hex Nut	M16	Metric	13	Black	Class 8	11.8
Alloy Steel	ASTM A194 2H	Heavy Hex Nut	M20	UNC	16	Plain	High Temp	22.5
Stainless Steel	A2-70	Hex Nut	M12	Metric	10	Plain	700 MPa	7.1
Stainless Steel	A4-80	Hex Nut	M24	Metric	19	Plain	800 MPa	38.6

Joint Control & Mechanical Insight

Function in the Preload Control and Retention of the Load: Nuts are essential elements that hold clamping forces in the bolting joints by transforming torque exerted into tension under control. Fitness of the selection of the joints at zero load, vibration, and thermal enlargement is guaranteed by the proper choice of the nut in particularly the assemblies of the structural, piping, and machinery.

Thread Accuracy/ Manufacturing Behaviour: Nuts are made by hot forging or cold forming then precision threaded so that they will fit freely with mating bolts without galling or weight being concentrated in a few threads. Regular thread geometry aids in distributing the stress evenly around the joint thereby minimizing chances of loosening or fatigue failure.

The Material Grades and Strength Compatibility: Nuts can be manufactured in Carbon Steel, Alloy Steel and Stainless Steel of grade ASTM A194, A563 and SS 304/316. The grades of the bolts are determined to correspond to the grade of the grade so that there is normal strength and no thread strip-off and the integrity of the joints under operating conditions.

Service and Environmental Conditions Performance: Nuts can be provided with surface finishes such as black, zinc plated or galvanized depending on the requirements of applications to enhance corrosion resistance. In high-frequency of vibration-prone or high-load conditions, variants are often locked and heavy hex designs are often employed to increase reliability and decrease the maintenance rate.

Client Project Report of Nuts

Product Supplied	Quantity	Cities (India)
Nuts for Structural Steel Fastening	166 Pieces	Jamshedpur
Nuts for Heavy Equipment Assembly	203 Pieces	Ranipet
Nuts for Piping and Flanged Joint Systems	179 Pieces	Ankleshwar
Nuts for Maintenance & Plant Shutdown Operations	195 Pieces	Neyveli

Nuts are also important in the distribution of loads and the integrity of joints in that they provide a disregarded clamping force when used together with threaded fasteners. The choice of material and grade has an effect on tensile strength, loosening resistance and reliability in the long term when subjected to vibration or thermal gradient cycling. The kind and shape of threading should be the same as the bolt or Screws so that the load does not spread unequally. When the specification is done properly, the behavior of tightening is repeatable and the behavior is also stable between assembly, and maintenance cycles.

Type of Sub-products

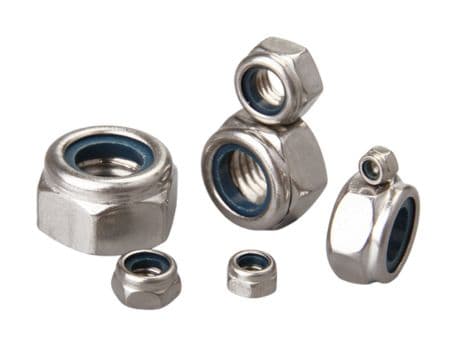

Lock Nuts
Lock Nuts
Designed with additional features like nylon inserts or distorted threads to prevent loosening due to vibration.
