Pvdf Fittings For Industrial Applications High Quality Material Corrosion Resistant And Leak Proof For Chemical Process And Pharma Plants
Industrial Grade PVDF Pipe Fittings Durable Reliable and High Performance Manufacturer and Supplier for Bulk Projects in Chemical Pharma and Process Units
D Chel Oil and Gas offers PVDF fittings that can be used in harsh industrial fluid handling applications that have a requirement on both chemical resistance and service life. The B2B buyers use the PVDF fittings due to their use in applications related to acids, solvents and high-purity fluids since the material has good strength and thermal stability with low maintenance requirements during continuous operations.
Procurement-wise, when selecting a reputable PVDF fittings manufacturer, it implies a steady dimension pressure rating and a traceability of material. The industrial consumers are seeking fittings which can be easily attached to pre-existing piping systems without compromising leakproof joints and constant flow performance in chemical processing, water treatment processes and semiconductor systems.
- Many industrial buyers prefer to purchase multiple polymer piping products from a single supplier to simplify purchasing and reduce logistics complexity.
- Single source procurement helps in better coordination, faster delivery and easier quality control across all piping components.
- Along with PVDF fittings buyers often require products from a PFA fittings supplier for high temperature and ultra clean process applications.
- PFA components are commonly used where purity and thermal stability are critical such as pharma, chemical and electronics industries.
- Corrosion resistant fittings are also selected for special process lines that handle aggressive fluids and variable operating conditions.
- This mixed material sourcing approach supports flexible system design while maintaining safety performance and long service life.
On construction of structural piping and external installation projects, the buyers can also contract with an FRP fitting manufacturer to address the mechanical strength and outdoor requirements. Such combined sourcing strategy assists EPC contractors and operators of the plant to lower downtime in order to guarantee intersystem compatibility and consistency in quality standards throughout large-scale industrial projects.
PVDF 45 Deg Elbow
| 25 | 16 | 24 | 33 | 4.5 | 2 | 50 | 50 | EMS45-25-16/PE |
| 40 | 16 | 38 | 48 | 5 | 2 | 80 | 80 | EMS45-40-16/PE |
| 50 | 16 | 48 | 58 | 5 | 2 | 100 | 100 | EMS45-50-16/PE |
| 65 | 16 | 63 | 75 | 6 | 2 | 130 | 130 | EMS45-65-16/PE |
| 80 | 16 | 78 | 90 | 6 | 2 | 160 | 160 | EMS45-80-16/PE |
| 100 | 16 | 98 | 111 | 6.5 | 2 | 150 | 150 | EMS45-100-16/PE |
| 125 | 16 | 123 | 137 | 7 | 1.5 | 190 | 190 | EMS45-125-16/PE |
| 150 | 16 | 148 | 165 | 8.5 | 1.5 | 225 | 225 | EMS45-150-16/PE |
| 200 | 10 | 198 | 214 | 8 | 1.5 | 300 | 300 | EMS45-200-10/PE |
| 200 | 16 | 198 | 220 | 11 | 1.5 | 300 | 300 | EMS45-200-16/PE |
| 250 | 10 | 248 | 165 | 8.5 | 1.5 | 375 | 375 | EMS45-250-10/PE |
| 250 | 16 | 248 | 272 | 12 | 1.5 | 375 | 375 | EMS45-250-16/PE |
| 300 | 10 | 298 | 316 | 9 | 1.5 | 450 | 450 | EMS45-300-10/PE |
| 300 | 16 | 298 | 324 | 13 | 1.5 | 450 | 450 | EMS45-300-16/PE |
PVDF 90 Deg Elbow
| Nom. (mm) | Pmax. (bar) | I.D. (mm) | O.D. (mm) | W.T. (mm) | R= Factor x I.D. | R (mm) | L (mm) | Article number | Amount |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 16 | 24 | 33 | 4.5 | 2 | 50 | 50 | EMS90-25-16/PE | |
| 32 | 16 | 32 | 42 | 5 | 2 | 64 | 64 | EMS90-32-16/PE | |
| 40 | 16 | 38 | 48 | 5 | 2 | 80 | 80 | EMS90-40-16/PE | |
| 50 | 16 | 48 | 58 | 5 | 2 | 100 | 100 | EMS90-50-16/PE | |
| 65 | 16 | 63 | 75 | 6 | 2 | 130 | 130 | EMS90-65-16/PE | |
| 80 | 16 | 78 | 90 | 6 | 2 | 160 | 160 | EMS90-80-16/PE | |
| 100 | 16 | 98 | 111 | 6.5 | 2 | 150 | 150 | EMS90-100-16/PE | |
| 125 | 16 | 123 | 137 | 7 | 1.5 | 190 | 190 | EMS90-125-16/PE | |
| 150 | 16 | 148 | 165 | 8.5 | 1.5 | 225 | 225 | EMS90-150-16/PE | |
| 200 | 10 | 198 | 214 | 8 | 1.5 | 300 | 300 | EMS90-200-10/PE | |
| 200 | 16 | 198 | 220 | 11 | 1.5 | 300 | 300 | EMS90-200-16/PE | |
| 250 | 10 | 248 | 165 | 8.5 | 1.5 | 375 | 375 | EMS90-250-10/PE | |
| 250 | 16 | 248 | 272 | 12 | 1.5 | 375 | 375 | EMS90-250-16/PE | |
| 300 | 10 | 298 | 316 | 9 | 1.5 | 450 | 450 | EMS90-300-10/PE | |
| 300 | 16 | 298 | 324 | 13 | 1.5 | 450 | 450 | EMS90-300-16/PE |
PVDF Reducers
| DN1 | DN2 | Overall Length | Wall Thickness | Pmax | Article | Amount |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (bar) | number | |
| 32 | 25 | 40 | 5 | 16 | ROS-32-25-16/PE | |
| 40 | 25 | 60 | 5 | 16 | ROS-40-25-16/PE | |
| 50 | 25 | 60 | 5 | 16 | ROS-50-25-16/PE | |
| 80 | 25 | 130 | 5 | 16 | ROS-80-25-16/PE | |
| 100 | 25 | 180 | 5 | 16 | ROS-100-25-16/PE | |
| 40 | 32 | 20 | 5 | 16 | ROS-40-32-16/PE | |
| 50 | 32 | 20 | 5 | 16 | ROS-50-32-16/PE | |
| 80 | 32 | 90 | 5 | 16 | ROS-80-32-16/PE | |
| 100 | 32 | 140 | 5 | 16 | ROS-100-32-16/PE | |
| 50 | 40 | 20 | 5 | 16 | ROS-50-40-16/PE | |
| 80 | 40 | 90 | 5 | 16 | ROS-80-40-16/PE | |
| 100 | 40 | 140 | 5 | 16 | ROS-100-40-16/PE | |
| 80 | 50 | 70 | 5 | 16 | ROS-80-50-16/PE | |
| 100 | 50 | 120 | 5 | 16 | ROS-100-50-16/PE | |
| 125 | 50 | 180 | 5 | 16 | ROS-125-50-16/PE | |
| 150 | 50 | 240 | 5 | 16 | ROS-150-50-16/PE | |
| 80 | 65 | 40 | 5 | 16 | ROS-80-65-16/PE | |
| 100 | 65 | 90 | 5 | 16 | ROS-100-65-16/PE | |
| 125 | 65 | 150 | 5 | 16 | ROS-125-65-16/PE | |
| 150 | 65 | 210 | 5 | 16 | ROS-150-65-16/PE | |
| 100 | 80 | 50 | 5 | 16 | ROS-100-80-16/PE | |
| 125 | 80 | 110 | 5 | 16 | ROS-125-80-16/PE | |
| 150 | 80 | 170 | 5 | 16 | ROS-150-80-16/PE | |
| 200 | 80 | 290 | 6 | 16 | ROS-200-80-16/PE | |
| 125 | 100 | 60 | 5 | 16 | ROS-125-100-16/PE | |
| 150 | 100 | 120 | 5 | 16 | ROS-150-100-16/PE | |
| 200 | 100 | 240 | 6 | 16 | ROS-200-100-16/PE | |
| 150 | 125 | 60 | 5 | 16 | ROS-150-125-16/PE | |
| 200 | 125 | 180 | 6 | 16 | ROS-200-125-16/PE | |
| 200 | 150 | 120 | 6 | 16 | ROS-200-150-16/PE | |
| 250 | 150 | 240 | 6 | 10 | ROS -250-150-10/PE | |
| 300 | 150 | 360 | 6 | 10 | ROS-300-150-10/PE | |
| 250 | 200 | 120 | 6 | 10 | ROS-250-200-10/PE | |
| 300 | 200 | 240 | 6 | 10 | ROS-300-200-10/PE | |
| 350 | 200 | 360 | 7 | 10 | ROS-350-200-10/PE | |
| 400 | 200 | 480 | 7 | 10 | ROS-400-200-10/PE | |
| 300 | 250 | 120 | 6 | 10 | ROS-300-250-10/PE | |
| 350 | 250 | 240 | 7 | 10 | ROS-350-250-10/PE | |
| 400 | 250 | 360 | 8 | 10 | ROS-400-250-10/PE | |
| 350 | 300 | 120 | 7 | 10 | ROS-350-300-10/PE | |
| 400 | 300 | 240 | 8 | 10 | ROS-400-300-10/PE | |
| 400 | 350 | 120 | 8 | 10 | ROS-400-350-10/PE |
PVDF Couplings
| DN | L | Pmax | L2 | NPT/BSPP | Do | Di | Article | Amount |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (bar) | (mm) | (inch) | (mm) | (mm) | number | |
| 150 | 200 | 10 | 57 | 6″ NPT | 178 | 153 | CTS-24/4-200 | |
| 100 | 200 | 10 | 51 | 4″ NPT | 127 | 102 | CTS-16/4-200 | |
| 75 | 200 | 10 | 45 | 3″ NPT | 99 | 77 | CTS-12/4-200 | |
| 50 | 200 | 10 | 42 | 2″ NPT | 73 | 51 | CTS-8/4-200 | |
| 50 | 150 | 10 | 42 | 2″ NPT | 73 | 51 | CTS-8/4-150 | |
| 40 | 200 | 10 | 39 | 1 1/2″ NPT | 61 | 39 | CTS-6/4-200 | |
| 40 | 150 | 10 | 39 | 1 1/2″ NPT | 61 | 39 | CTS-6/4-150 | |
| 25 | 150 | 10 | 32 | 1″ NPT | 48 | 26 | CTS-4/4-150 | |
| 20 | 150 | 10 | 26 | 3/4″ NPT | 38 | 20 | CTS-3/4-150 | |
| 10 | 150 | 10 | 26 | 1/2″ NPT | 32 | 13 | CTS-2/4-150 | |
| 10 | 150 | 10 | 20 | 3/8″ NPT | 29 | 10 | CTS-2/4-150 | |
| 10 | 150 | 10 | 26 | 1/2″ BSPP | 32 | 13 | CTS-2/4-150 | |
| 25 | 150 | 10 | 32 | 1″ BSPP | 48 | 26 | CTS-4/4-150 |

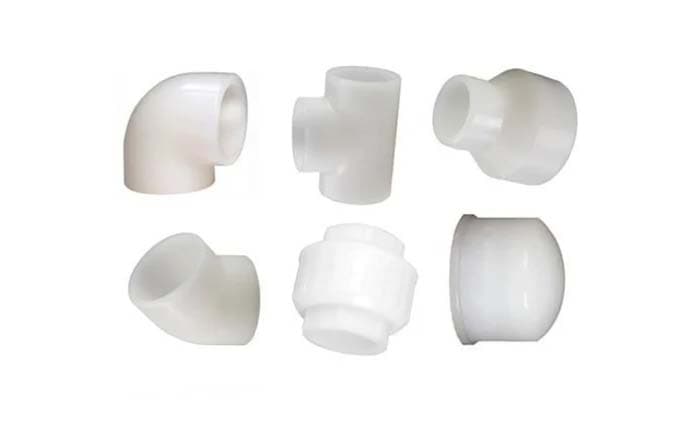

PVDF fittings
| Code | Size | d2 | d1 | d3 | t1 | e |
| PPTEEQ020S | 20 | 27.5 | 19.5 | 25.5 | 14.5 | 4 |
| PPTEEQ025S | 25 | 33.5 | 24.5 | 29.5 | 16 | 4.5 |
| PPTEEQ032S | 32 | 41.3 | 31.5 | 35 | 18 | 4.9 |
| PPTEEQ040S | 40 | 50.6 | 39.5 | 41.5 | 20.5 | 5.6 |
| PPTEEQ050S | 50 | 63.7 | 49.5 | 49.5 | 23.5 | 7.1 |
| PPTEEQ063S | 63 | 79 | 62.5 | 60 | 27.5 | 8.3 |
| PPTEEQ075S | 75 | 91.5 | 74.9 | 69.5 | 31 | 8.3 |
| PPTEEQ090S | 90 | 111.5 | 89.9 | 79 | 33 | 10.8 |
| PPTEEQ110S | 110 | 134.5 | 110 | 97.5 | 37 | 12.3 |
PVDF Fittings Clients Project
Product Supplied Quantity Cities (India) PVDF Fittings for the Oil and gas industry 114 Pieces Bareilly, Uttar Pradesh PVDF Fittings supplied to the Pharmaceutical processing industry 120 Pieces Mumbai, Maharashtra Plates & Fittings supply for Piping 160 Pieces Srinagar, Jammu, and Kashmir PVDF Fittings supplied to industry 180 Pieces Raipur, Chhattisgarh
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| PVDF Fittings for the Oil and gas industry | 114 Pieces | Bareilly, Uttar Pradesh |
| PVDF Fittings supplied to the Pharmaceutical processing industry | 120 Pieces | Mumbai, Maharashtra |
| Plates & Fittings supply for Piping | 160 Pieces | Srinagar, Jammu, and Kashmir |
| PVDF Fittings supplied to industry | 180 Pieces | Raipur, Chhattisgarh |
Type of Sub-products

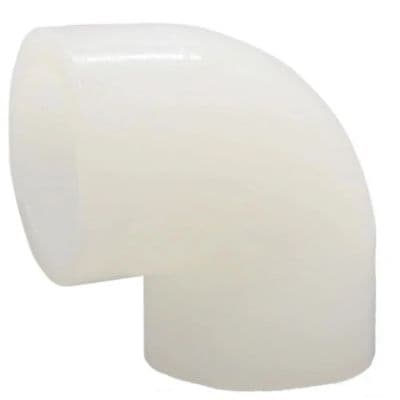

Pvdf Elbow Fittings Pvdf Elbow Fittings
PVDF elbow fittings are used to change the direction of flow in piping systems. They are commonly used in chemical, pharmaceutical, and water treatment industries where high chemical resistance and leak free performance are crucial.
