Stainless Steel 17 7 Ph Flange, Precipitation Hardening Grade, High Strength With Dimensional Stability, Critical Piping Connections, Manufacturer In India

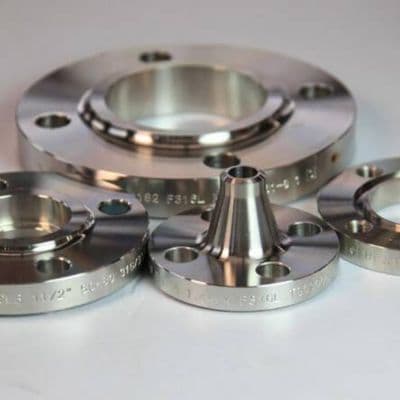

Stainless Steel 17 7 Ph Flanges Supplier In India
$0.91 - $1.89

Minimum Order : 200 piece

Customization as per requirements

Specification Details
Flanges TypesSlip On, Companion, Weld Neck, Lap Joint, Long Weld Neck, Threaded, Blind
Class2500 Lbs Asa 150, 150 Lbs, 100, 300 Lbs, 600 Lbs, Asa 300, 160, 900 Lbs, Pn 6, 1500 Lbs, 10, 16, 25, 40, 64
Size1/2″ (15 Nb)
TypeRaised Face (rf), Lap Joint Face (ljf), Small Male Female (smf), Groove, Flat Face (ff), Large Male Female (lmf), Large Tongue & Groove, Ring Type Joint (rtj), Small Tongue

Stainless Steel 17-7 PH Flange for Aerospace Equipment Chemical Processing Supplier in India

Metalica Forging Inc which is reputed to provide high-performance alloy-based piping components in demanding industrial applications is a trusted Stainless steel 17-7 PH Flanges Manufacturer providing flanges that are designed with high strength, good fatigue resistance, and dimensional stability. The precipitation-hardening alloys are Stainless Steel 17-7 PH flanges which offer excellent mechanical properties and are corrosive resistant hence they are used in aerospace, chemical processing, generation and high-pressure application. These flanges retain their strength in different temperatures and stress levels. Stainless Steel 321 Flanges are also widely applied in the heat-intensive service environment where it is necessary to have an enhanced oxidation resistance and thermal stability.

The stainless steel 17-7 PH flanges are made so that they can be used in systems where mechanical strength and corrosion resistance has to be weighed. They come in various sizes and pressure rating with varying surface finishes in order to fulfill the varying engineering demands. Stainless Steel 904L Flanges are also favored in very corrosive environments that have acids, chlorides or vicious chemicals because they are better resistant to pitting and crevice corrosion. Combined, these flange solutions can contribute to the stability of long-term operation, stable connection of pipes, and stable work of the most important installations of industry.

Stainless Steel 202 Flanges – Material & Grade Table

MaterialGradeStandardPressure ClassSize RangeFacing TypeTemperature LimitTypical Application
Stainless Steel202ASME B16.5Class 150–600½″ – 24″RF / FFUp to 400°CWater lines, low-corrosion piping
Stainless Steel202EN 1092-1PN10–PN40DN15 – DN600RFUp to 400°CStructural & utility systems
Stainless Steel202ASME B16.47Class 150–30026″ – 48″RFUp to 350°CLarge-diameter pipelines
Stainless Steel202IS / ANSIClass 150–300½″ – 24″FFUp to 350°CIndustrial process lines
  • Applications: chosen in assemblies subject to cyclic loads, vibration as well as high service temperature such as aerospace fittings, control units and specialized machine gear.
    • Quality of Performance: The precipitation-hardening structure offers good performance in terms of strength, dimensional stability, and fatigue resistance at the same time offering good corrosion behavior as compared to the normal martensitic grades.
    • Grade Specification: Grade S17700 is manufactured in Stainless Steel 17-7 PH and normally in TH 1050, RH 950, or CH 900 conditions to achieve particular mechanical properties.
    • Other Characteristics: Maintains shape and sealing integrity under load, and is therefore appropriate when compact flange design is needed, where strength to weight ratio is important, and when there is a demand to have frequent assembly cycles.

    Client Project Report Of Stainless Steel 202 Flanges

  • Product SuppliedQuantityCities (India)
    SS 17-7 PH Flanges for Aerospace Tooling168 PiecesBengaluru
    SS 17-7 PH Flanges for High-Load Mechanical Units207 PiecesPune
    SS 17-7 PH Flanges for Process Equipment181 PiecesVadodara
    SS 17-7 PH Flanges for Precision Assemblies194 PiecesChennai

    • Stainless Steel 202 is a type of flange applied in cases where moderate levels of corrosion resistance and high levels of mechanical strength are needed at a controlled level of cost. The appropriate choice of the pressure class and facing type provides the stability of the joints and reliable sealing of the joints during use. Stainless Steel 304LN Flanges may be considered as an option when designing flanges that require higher corrosion resistance and inclusion of nitrogen strengthened grades. On the B2B marketplace, consistent tables that discuss grade, size range, and service limits would assist the buyers to compare the flange options correctly and choose the connection to use in long-term piping performance.

    Type of Sub-products

    • Stainless Steel 17 7ph Weld Neck Flanges

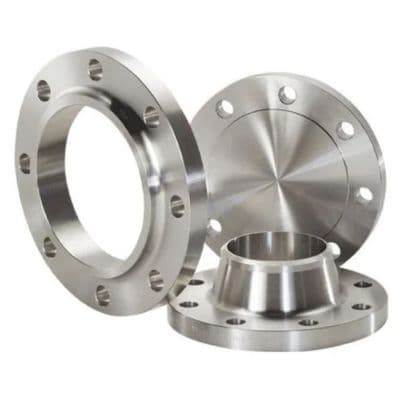

      Stainless Steel 17 7ph Weld Neck Flanges

      Stainless Steel 17 7ph Weld Neck Flanges

      Stainless Steel 17-7 PH Weld Neck Flanges are high-strength, corrosion-resistant flanges designed for reliable performance in high-pressure and high-temperature applications.

    • Stainless Steel 17 7ph Threaded Flanges

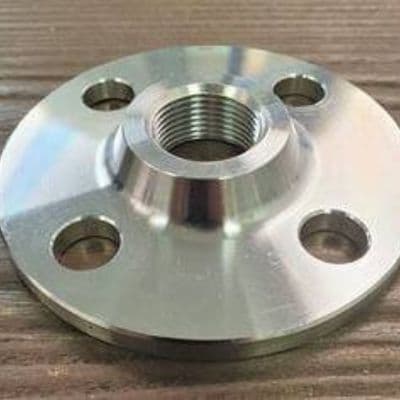

      Stainless Steel 17 7ph Threaded Flanges

      Stainless Steel 17 7ph Threaded Flanges

      Stainless Steel 17-7 PH threaded flanges offer high strength, corrosion resistance, and easy installation, ideal for high-pressure applications without welding.

    • Stainless Steel 17 7ph Socket Weld Flanges

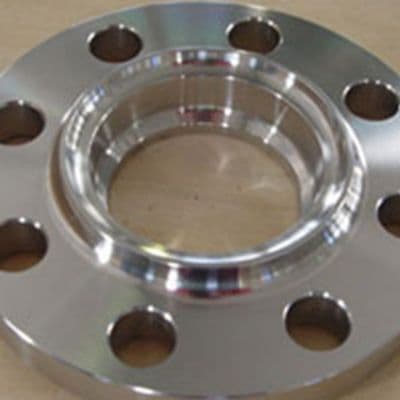

      Stainless Steel 17 7ph Socket Weld Flanges

      Stainless Steel 17 7ph Socket Weld Flanges

      Stainless Steel 17-7 PH Socket Weld Flanges are designed for high-pressure applications, offering excellent strength, corrosion resistance, and secure pipe connections.
