| Standard | Astm A580, A313, A555, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

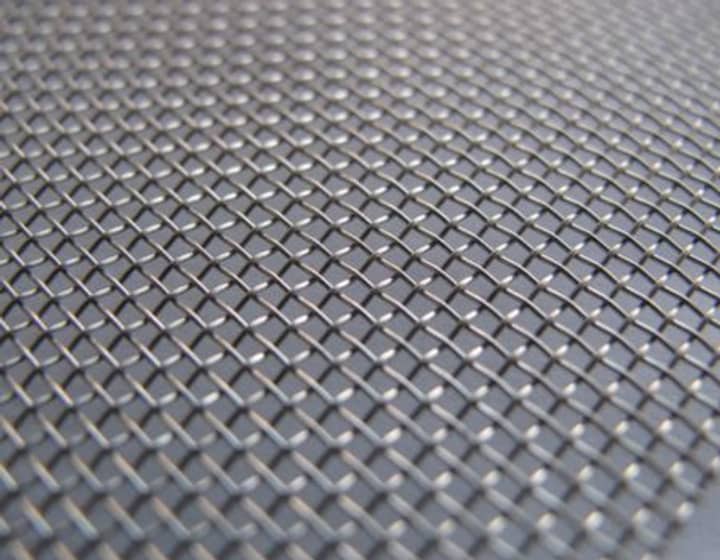

Super Duplex Wire Mesh
Timex Metals produces high quality Super Duplex Wire Mesh Manufacturer, which is developed to provide superior strength, durability and withstanding high temperature and extreme environment. This wire mesh is produced with high grade super duplex stainless steel, which is recognized to have excellent resistance of corrosion against chloride-induced stress cracking as well as pitting. It is a combination of the best in mechanical strength and toughness, and is highly applicable in the marine, chemical and oil and gas sectors where high performance and reliability are essential.
Mesh & Wire Details – Super Duplex Wire Mesh
| Mesh / Inch | Aperture (mm) | SWG | Wire Diameter (mm) | Open Area (%) | Approx. Weight (kg/m²) |
|---|---|---|---|---|---|
| 3 | 7.25 | 18 | 1.219 | 70 | 2.5 |
| 4 | 4.72 | 16 | 1.63 | 58 | 5.0 |
| 5 | 4.36 | 22 | 0.711 | 76 | 1.3 |
| 6 | 3.52 | 22 | 0.711 | 63 | 1.6 |
| 10 | 2.03 | 24 | 0.559 | 64 | 0.9 |
| 20 | 0.84 | 30 | 0.315 | 45 | 0.6 |
Super Duplex Wire Mesh finds its extensive application in filtration, chemical processing, marine, and desalination systems, etc. where it is necessary to maintain high strength and corrosion resistance even at temperatures of up to 300°C. On a B2B Platform, comprehensive mesh, wire, and chemical composition tables assist buyers in determining the right configuration for load, flow rate, and corrosive environments. Such parameters become extremely important while selecting Square Wire Mesh for accurate screening and stable service over a prolonged period.
Type of Sub-products
Super Duplex Woven Wire Mesh Super Duplex Woven Wire Mesh
Super Duplex woven wire mesh is manufactured by interlacing wires in a crisscross pattern, offering excellent strength, flexibility, and resistance to corrosion. It is widely used in filtration, sieving, and screening applications across marine, chemical, and offshore industries. The uniform weave ensures consistent pore size and reliable performance.
Super Duplex Welded Wire Mesh Super Duplex Welded Wire Mesh
Super Duplex welded wire mesh is created by welding intersecting wires at fixed intervals, forming a strong and rigid grid. Known for its high tensile strength and durability, it is ideal for heavy duty applications such as fencing, security enclosures, and reinforcement in corrosive environments. The welding process ensures structural stability and long service life.
