U Bolts Manufacturer In India Ss 304, 304l, 316, 316l, Carbon Steel, Alloy Steel, Duplex (2205) & Super Duplex (2507)

Name: U Bolts Manufacturer In India Ss 304, 304l, 316, 316l, Carbon Steel, Alloy Steel, Duplex (2205) & Super Duplex (2507)
Brand: Ananka Group
Availability: InStock
Rating: 5 (500 reviews)

Specification Details
Size	M6 to M24
Type	Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners
Standard	Din, Iso, Jis, Gb, Is, Bs, Astm
Length	3mm to 200mm
Material	Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze

U Bolts Supplier in India - Stainless Steel (304, 304L, 316, 316L), Carbon Steel, Alloy Steel & Duplex

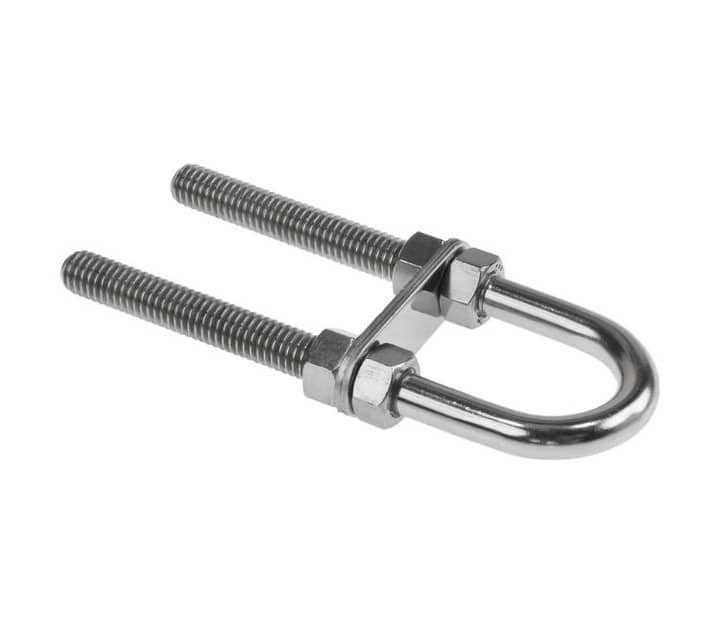

Ananka Group is a U Bolts Manufacturer offering high-quality fasteners made from stainless steel, galvanized steel, carbon steel, and alloy steel. These U-shaped bolts with threaded ends are designed to secure pipes, tubes, and round objects to structural components. Manufactured in accordance with ASTM, BS, and IS standards, U bolts provide excellent holding strength and corrosion resistance. They are widely used in construction, plumbing, marine, agricultural equipment, and industrial support systems where secure clamping is required for curved surfaces.

We offer proven and guaranteed U bolt solutions tailored for demanding industrial conditions. Through trusted B2B portals, we supply both standard and customized sizes, coatings, thread lengths, and bend diameters to meet project-specific needs. Known for their durability and adaptability, our U bolts are ideal for bulk procurement and are supported by fast, reliable logistics. With easy installation and long-lasting performance, they provide a simple solution for structural and mechanical support applications.

U Bolt Weight Chart in KG, MM, PDF (Approx in KG per 100 pcs)

Diameter (MM)	Inside Width (MM)	Length (MM)	Weight per 100 pcs (KG)
M6	25	50	2.5
M6	25	75	3.2
M8	30	75	4.8
M8	40	100	6.5
M10	40	100	8.5
M10	50	125	10.2
M12	50	125	14.5
M12	75	150	18.0
M16	75	150	28.0
M16	100	200	36.5
M20	100	200	52.0
M20	125	250	65.0

Note: Weight may vary slightly depending on thread length, coating, and manufacturing standards.

U Bolt Grade Table

Material Type	Grade / Specification	Key Features
Stainless Steel	SS 304 / 304L	Good corrosion resistance, widely used
Stainless Steel	SS 316 / 316L	corrosion resistance, marine use
Carbon Steel	IS 2062 / ASTM A36	High strength, cost-effective
High Tensile Steel	Grade 8.8 / 10.9 / 12.9	Heavy-duty applications
Alloy Steel	ASTM A193 B7 / B16	High temperature & pressure resistance
Duplex Steel	UNS S31803 / S32205 (2205)	High strength + corrosion resistance
Super Duplex Steel	UNS S32750 (2507)	Extreme corrosion resistance
Galvanized Steel	Hot Dip Galvanized	Rust protection, outdoor use

Quick Insight:

SS 304/316 U Bolts → Best for corrosion environments
Carbon Steel U Bolts → Ideal for structural and general use
Duplex & Super Duplex → Used in chemical, marine, and offshore industries
High Tensile Grades → Suitable for heavy load applications

The above U Bolt weight chart and grade table provide a clear and practical reference for selecting the right fastener based on size, strength, and application requirements. The weight chart highlights how variations in diameter, width, and length directly impact the overall mass, which is essential for load calculations and bulk procurement planning. Meanwhile, the grade table covers a wide range of materials such as Stainless Steel 304/316, Carbon Steel, Alloy Steel, and advanced grades like Duplex (2205) and Super Duplex (2507), ensuring suitability across industries from construction and piping to marine and chemical processing. By combining dimensional data with material specifications, these charts help engineers, buyers, and suppliers make informed decisions for durability, corrosion resistance, and performance in different operating conditions.
