| Specifications | Astm, Asme, Nfa, Jis |
|---|---|
| Thickness | 4.0mm, 100mm |
| Pipes Size | 1/8” Nb, 24” Nb, 24” Od Sizes |
| Tubes Size | 1/2″ Od, 8″ Od |
| Length: | Cut Length, Fix Length, Single Random, Double Random, Required Length |
| End | Plain End, Threaded |

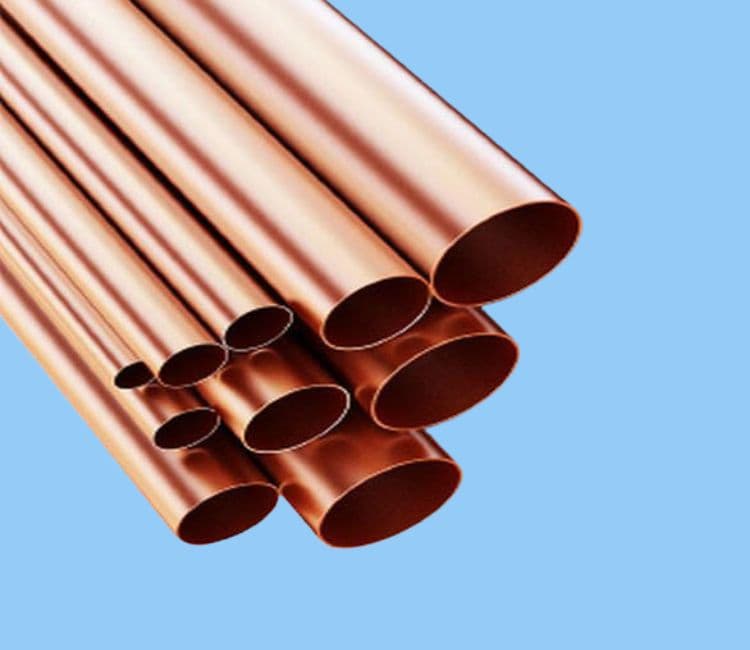

Cu Ni 90/10 Pipe Manufacturer in India
Sagar Steel Corporation is a reliable Cu Ni 90/10 Pipes Manufacturer that makes high-quality pipes that are chemically composed of 90% copper and 10% nickel. In this way, the pipes resist all kinds of general corrosion, seawater biofouling, and stress cracking; they are the first choice for marine pipelines, offshore systems, heat exchangers, and HVAC applications. We make both seamless and welded pieces that are ASTM B466, BS 2871 Part 3, and EEMUA 144 compliant, thus they have not only the exact dimensions but also good metallurgical integrity. Besides that, we also produce Cupro Nickel Pipes for various industrial applications.
Weight Chart of Cu-Ni 90/10 Welded Pipe
| Nominal Copper Pipe Size | WT (mm) | WT (inch) | Pipe OD (inch) | Pipe OD (mm) | Weight (kg/m) | Schedule | Weight (lb/ft) |
|---|---|---|---|---|---|---|---|
| ½" | 2.77 | 0.109 | 0.84 | 21.34 | 1.30 | 40 | 0.87 |
| 1" | 3.38 | 0.133 | 1.32 | 33.40 | 2.60 | 40 | 1.75 |
| 2" | 3.91 | 0.154 | 2.38 | 60.33 | 5.40 | 40 | 3.63 |
| 3" | 5.49 | 0.216 | 3.50 | 88.90 | 11.30 | 40 | 7.60 |
| 4" | 6.02 | 0.237 | 4.50 | 114.30 | 16.80 | 40 | 11.29 |
| 6" | 7.11 | 0.280 | 6.63 | 168.28 | 32.50 | 40 | 21.83 |
Cu-Ni 90/10 pipes are the most popular parts utilised in seawater piping systems, condensers, and heat exchangers owing to their pretty much corrosion resistance and long life. Providing unambiguous material and grade details in the specification table assists B2B platforms in exposing the correct technical data that is in line with the efficient evaluation and selection process for marine and industrial applications.
Type of Sub-products

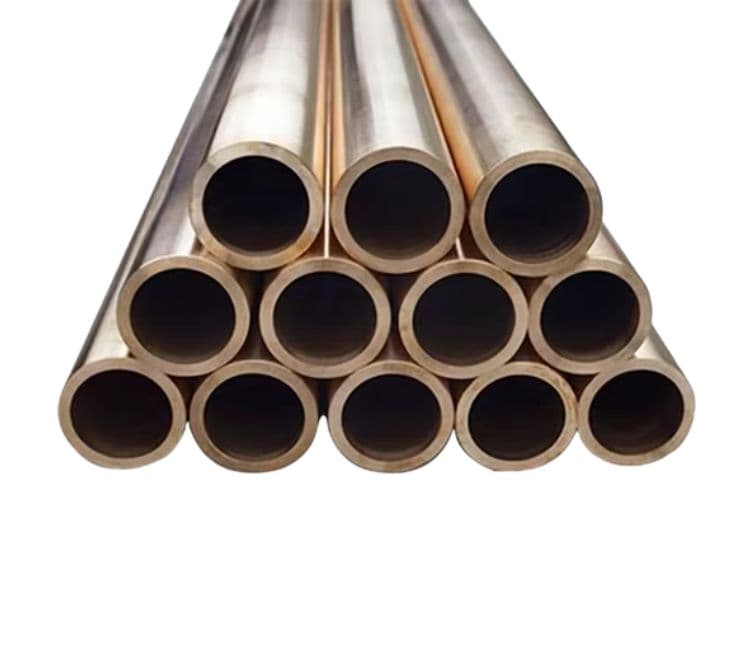

Cu Ni 90/10 Seamless Pipes Cu Ni 90/10 Seamless Pipes
Manufactured without welding, these pipes offer superior pressure strength and uniformity.

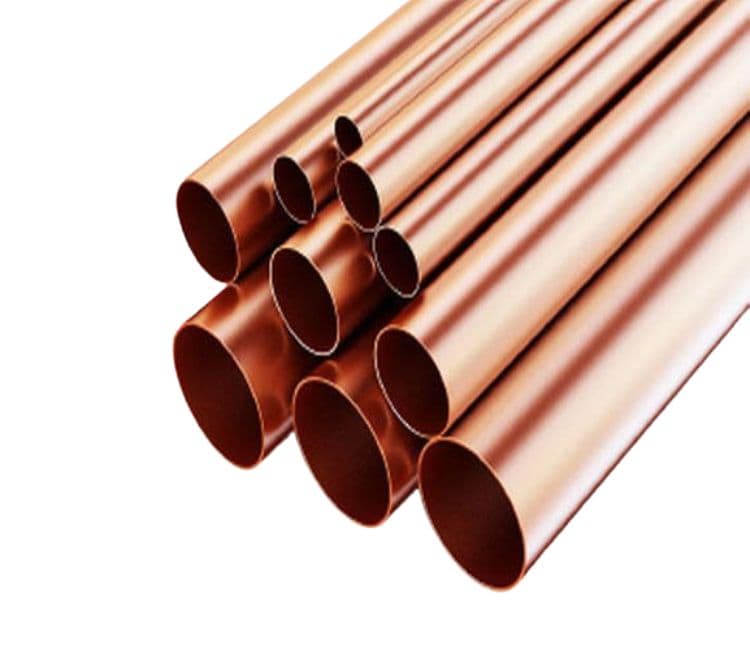

Cu Ni 90/10 Welded Pipes Cu Ni 90/10 Welded Pipes
Formed from cold rolled sheets and longitudinally welded, these pipes provide cost effective solutions for general seawater piping, HVAC, and low to medium pressure systems.
