Inconel Plate Manufacturer In India Supplying Astm & Asme Standard Plates For Aerospace, Chemical & Power Industries
| Plate Standards | Astm A240, / Asme Sa240 |
|---|---|
| Material Grades | 405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420 |
| Surface | 2b, 2d, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc |
| Finish | Hot Rolled Plate (hr), Cold Rolled Plate (cr), 2b, 2d, Ba No(8), Satin (met With Plastic Coated) |
Inconel Plate Manufacturer in India Supplying ASTM & ASME Standard Plates for Aerospace, Chemical & Power Industries
United Stainless LLP is a prominent Inconel Plates Manufacturer in India which provides high-grade Inconel Plate which is engineered to withstand in high-temperature and extreme-pressure conditions. The Inconel Plate is popular in the aerospace components, chemical processing equipment, heat exchangers, power generation and in the marine where high oxidation and corrosion properties are needed.
Inconel Plate comes in a variety of alloy grades and range of thicknesses to satisfy the tough industrial requirements supplied by an assuring B2B platform. To achieve structural and fabrication requirements, Zinc Coated Plates are commonly employed where general-purpose requirements are involved and Titanium Plates are employed where the weight requirements of lightweight and corrosion restrictions are the most important.
Inconel Plate exhibits excellent performance in highly aggressive operating environments that are characterized by high temperatures, pressure and corrosive media. Nickel Alloy Plate is often used in long-term systems such as high-strength and corrosion-resistant ones. Being a reputed Inconel Plate Supplier In India, such plates are produced according to the international standard of quality assurance of uniform mechanical and chemical qualities.
Material & Grades of Inconel Plate
Inconel Plate comes in a variety of nickel-chromium alloy grades that are intended to be used in high temperature strength and corrosion resistance. This is because the right grade is chosen which guarantees good performance and long service.
| Material | Grade / Standard | UNS No. | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Inconel Alloy | 600 | N06600 | 3.0 – 50.0 | 1000 – 2000 | Furnace components |
| Inconel Alloy | 625 | N06625 | 1.0 – 50.0 | 1000 – 2000 | Chemical processing |
| Inconel Alloy | 718 | N07718 | 3.0 – 60.0 | 1000 – 2000 | Aerospace parts |
| Inconel Alloy | 825 | N08825 | 2.0 – 50.0 | 1000 – 2000 | Heat exchangers |
Key Features & Advantages
- Exceptional strength at high temperatures
- Excellent resistance to oxidation and corrosion
- Suitable for aerospace and power generation
- Long service life in extreme environments
- Good fabrication and weldability
- Available in standard and custom dimensions
Matching Composition Filler Metals for Inconel Plates
| Base Metal | Bare Electrode and Rod | Shielded Metal Arc Electrode | Flux-cored Electrode | ||||
|---|---|---|---|---|---|---|---|
| Alloy | UNS | AWS A5.11 | UNS | AWS A5.14 | UNS | AWS A5.34 | UNS |
| 825 | N08825 | ERNiCrMo-3 | N06625 | ENiCrMo-3 | W86112 | ENiCrMo3Tx-y | W86625 |
| 600 | N06600 | ERNiCr-3 | N06082 | ENiCrFe-3 | W86182 | ENiCr3Tx-y | W86082 |
| 625 | N06625 | ERNiCrMo-3 | N06625 | ENiCrMo-3 | W86112 | - | - |
Inconel Coil Strength
| Strength | Alloy 601 | Alloy 600 | Alloy 625 | Alloy 718 |
|---|---|---|---|---|
| Tensile strength – Mpa | 650min. | 550min. | 760min. | 965min |
| Yield strength – Mpa | 300min. | 240min. | 345min. | 550 min. |
Chemical Composition of Inconel Plates:
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel | 2.4816 | N06600 | NCF 600 | NC15FE11M | NA 13 | МНЖМц 28-2,5-1,5 | NiCr15Fe | ЭИ868 |
Type of Sub-products

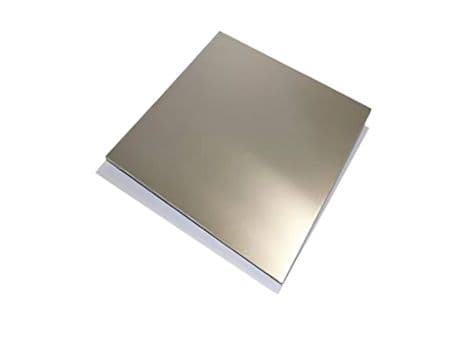

Inconel 600 Plate Inconel 600 Plate
Engineered with superior strength and corrosion resistance, the Inconel 600 Plate delivers unmatched performance in high temperature and chemically aggressive environments. Its durability and precision make it a reliable choice for aerospace, chemical, and power generation industries

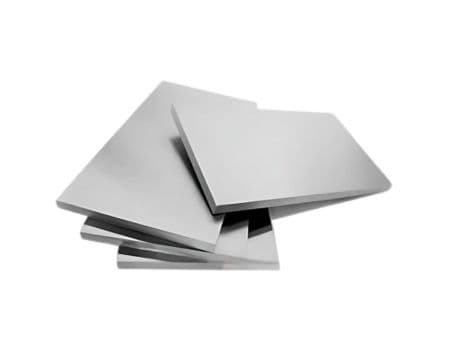

Inconel 625 Plate Inconel 625 Plate
Crafted for extreme durability and resistance, the Inconel 625 Plate excels in environments exposed to heat, oxidation, and corrosive elements. Its superior mechanical strength ensures reliable performance in aerospace, marine, and chemical industries.
