Nickel Alloy Plate Manufacturer In India Supplying Astm & Asme Standard Plates For Chemical, Petrochemical & Power Industries
| Plate Standards | Astm A240, / Asme Sa240 |
|---|---|
| Material Grades | 405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420 |
| Surface | 2b, 2d, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc |
| Finish | Hot Rolled Plate (hr), Cold Rolled Plate (cr), 2b, 2d, Ba No(8), Satin (met With Plastic Coated) |
Nickel Alloy Plate Manufacturer in India Offering Plates in Inconel, Incoloy, Hastelloy & Monel Grades
United Stainless LLP is a top Nickel Alloy Plates Manufacturer in India which provides high quality Nickel Alloy plates, designed to perform remarkably in the corrosive and high temperature settings. Nickel Alloy Plates are employed in the chemical processing sectors, oil and gas sector, power generation sector, marine engineering sectors and aerospace sectors in which strength, resistance to extreme conditions and durability is essential.
Nickel Alloy Plates are made in a variety of alloy compositions and thicknesses to assemble to individual or custom industrial needs and are available through a secure B2B marketplace. Inconel Plates are usually used in the high-temperature and oxidation resistant applications and the Zinc Coated Plates are used in the general construction and structural fabrication applications.
Nickel Alloy Plates include excellent resistance to corrosion, heat and pressure, which means that they will have a long service life in stressful applications. Titanium Plate has been selected as an alternative material in lightweight and high-strength environments. These products are produced as reliable Nickel Alloy Plates Supplier In India to meet international quality standards to promote uniform mechanical characteristics and dimensional precision.
Material & Grades of Nickel Alloy Plates
Nickel Alloy Plates exist in a number of grades that are aimed at providing high temperatures strength and resistance to corrosion. The choice of the grade is one that would guarantee maximum performance and longevity.
| Material | Grade / Standard | UNS No. | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Nickel Alloy | Inconel 600 | N06600 | 2.0 – 50.0 | 1000 – 2000 | Furnace parts |
| Nickel Alloy | Inconel 625 | N06625 | 1.0 – 50.0 | 1000 – 2000 | Chemical processing |
| Nickel Alloy | Hastelloy C276 | N10276 | 2.0 – 50.0 | 1000 – 2000 | Corrosive services |
| Nickel Alloy | Monel 400 | N04400 | 2.0 – 60.0 | 1000 – 2000 | Marine components |
Key Features & Advantages
- Excellent corrosion and oxidation resistance
- High strength at elevated temperatures
- Suitable for chemical, marine, and power industries
- Good fabrication and weldability
- Long service life in harsh environments
- Available in standard and custom dimensions
Nickel Alloy Plate Chemical Composition
Nickel Alloy Plates are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Ni201 | 99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99.0 | 0.20 | 0.30 | 0.30 | 0.15 | / | 0.01 | / | 0.40 |
Nickel Alloy Plate Mechanical Properties
Mechanical Properties of Nickel Alloy Plates are listed below to assist you understand the product's durability.
| Element | Tensile Strength | Density | Melting Point | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel Alloy | Psi – 67000 , MPa – 462 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | 45 % |
Nickel Alloy Plate Equivalent Grade
Our dedication to quality guarantees that every Alloy Plate meet the highest standards, establishing us as a reliable Nickel Alloy Plate Manufacturer in India.
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | - | LC-Ni 99 |
Type of Sub-products

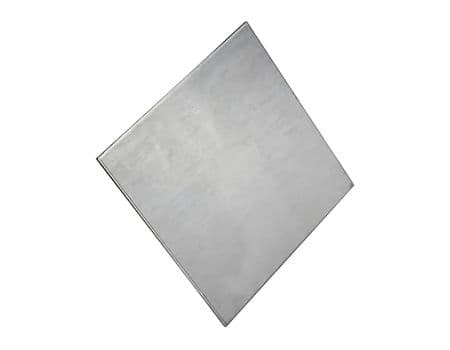

Nickel Alloy 200 Plate Nickel Alloy 200 Plate
Nickel Alloy 200 Plate offers excellent corrosion resistance, high mechanical strength, and thermal stability, making it suitable for diverse industrial applications. Its superior purity and durability ensure reliable performance in chemical processing, marine, and power generation environments.

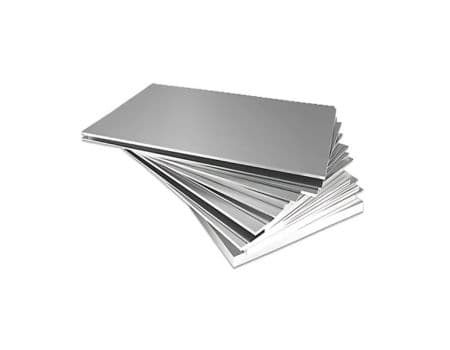

Nickel Alloy 201 Plate Nickel Alloy 201 Plate
Premium grade metallurgy, Nickel Alloy 201 Plate, provides enhanced corrosion resistance and excellent formability for demanding fabrication processes.
