Titanium Plates Manufacturer In India Delivering Titanium Grades 1, 2, 5 & 7 Plates For High Performance Service
| Plate Standards | Astm A240, / Asme Sa240 |
|---|---|
| Material Grades | 405, 409, 409l, 410, 410s, 415, 416, 430, 431, 439, 436, 436l, 441, 446, 430ti, 409m, 410db, 420 |
| Surface | 2d, 2b, Ba, No.1, No.4, No.8, 8k, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching, Etc |
| Finish | Hot Rolled Plate (hr), Cold Rolled Plate (cr) |
Titanium Plates Manufacturer in India Supplying ASTM B265 Standard Plates for Aerospace & Industrial Use
Material & Grades of Titanium Plates
Titanium Plates come in several grades that are suited to structural, corrosion resistant and high performance. The grade to be chosen guarantees the best mechanical properties and service life.| Material | Grade / Standard | UNS No. | Thickness (mm) | Width (mm) | Typical Applications |
|---|---|---|---|---|---|
| Titanium | Grade 2 | R50400 | 1.0 – 50.0 | 1000 – 2000 | Chemical processing |
| Titanium | Grade 5 (Ti-6Al-4V) | R56400 | 2.0 – 60.0 | 1000 – 2000 | Aerospace parts |
| Titanium | Grade 7 | R52400 | 1.0 – 40.0 | 1000 – 2000 | Marine equipment |
| Titanium | Grade 12 | R53400 | 2.0 – 50.0 | 1000 – 2000 | Heat exchangers |
Key Features & Advantages
- Excellent corrosion resistance
- High strength-to-weight ratio
- Suitable for extreme environments
- Good weldability and fabrication
- Long service life with low maintenance
- Available in standard and custom sizes
Titanium Plate Chemical Composition
Titanium Plates are corrosion resistant due to the presence of carbon, silicon, sulfur, and other elements.
| Element | Content (%) |
|---|---|
| Titanium, Ti | 87.6 - 91 |
| Aluminum, Al | 5.5 - 6.75 |
| Vanadium, V | 3.5 - 4.5 |
| Iron, Fe | ≤ 0.40 |
| Oxygen, O | ≤ 0.20 |
| Carbon, C | ≤ 0.080 |
| Nitrogen, N | ≤ 0.050 |
| Hydrogen, H | ≤ 0.015 |
Titanium Plate Mechanical Properties
Mechanical Properties of Titanium Plates are listed below to assist you understand the product's durability.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | ≥ 895 MPa | ≥ 130000 psi |
| Yield strength | ≥ 828 MPa | ≥ 120000 psi |
| Poisson’s ratio | 0.31 | 0.31 |
| Elastic modulus | 105-120 GPa | 15200-17400 ksi |
| Shear modulus | 41-45 GPa | 5950-6530 ksi |
| Elongation at break | ≥ 10 % | ≥ 10 % |
Titanium Plates Equivalent Grade
Our dedication to excellence ensures every Titanium Plate meets stringent quality standards, establishing us as a trusted Titanium Plates Manufacturer in India.
| EN | DIN | AISI | UNS | JIS | BS | AFNOR |
|---|---|---|---|---|---|---|
| Grade 1 | 3.7035 | — | R50400 | — | — | — |
| Grade 2 | 3.7035 | — | R50400 | — | — | — |
| Grade 5 | 3.7165 | — | R56400 | — | — | — |
Type of Sub-products

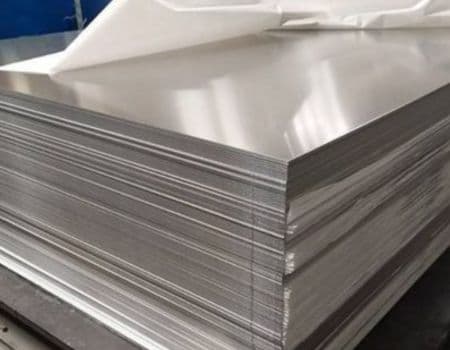

Titanium Plates Grade 2 Titanium Plates Grade 2
Titanium Plates Grade 2 are commercially pure titanium sheets known for their excellent corrosion resistance, high strength, and superior weldability. These plates offer a perfect balance of lightweight properties and durability, making them ideal for marine, chemical processing, aerospace, and medical applications.

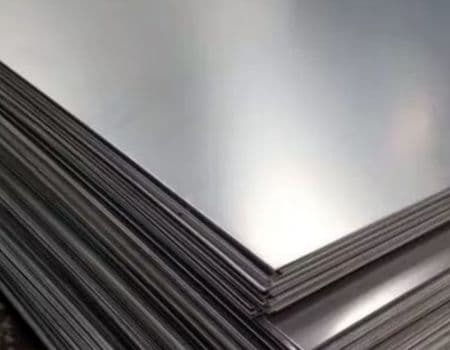

Titanium Plates Grade 5 Titanium Plates Grade 5
Titanium Plates Grade 5 (Ti 6Al 4V) are high strength, lightweight, and corrosion resistant metal sheets widely used in aerospace, marine, medical, and industrial applications. Known for their exceptional durability, heat resistance, and excellent weldability, these plates perform well in extreme environments.
