| Size | M2 to M100 |
|---|---|
| Type | Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Nails, Custom Fasteners |
| Standard | Din, Iso, Jis, Gb, Is, Bs, Astm |
| Length | 3 to 6 m |
| Material | Stainless Steel, Monel, Inconel, Incoloy, Hastelloy, Nickel, Silicon Bronze, Phosphor Bronze |
Premium Industrial Nuts Supplier in Qatar Offering ASTM A194 Grade 2H, A194 Grade 7 and A563 Grade Fasteners
Ojas Industries is a brand that can be trusted in the industrial fastener market segment, with a large variety of nuts to cater to the stringent needs of construction, oil and gas, infrastructure and heavy engineering ventures. The company is a reputable nuts supplier in Qatar, and the specialisation lies in the supply of products that would give strength, dimensional precision, and performance in high-pressure and high-load situations.

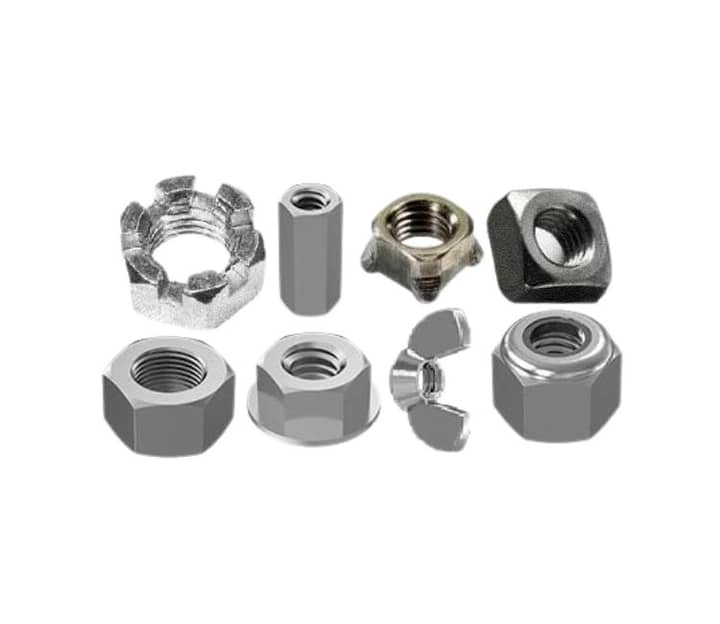

There are several varieties of industrial nuts which can be used in a variety of applications, such as investments in hex nuts, heavy hex nuts, lock nuts, and structural nuts. These fasteners are commonly utilised because they have a good load-carrying capacity with little difficulty in installation as a reliable hex nut supplier. They can be used in both standard and high-temperature conditions and hence are ideal in mechanical and piping as well as structural assemblies.
With the help of a reputable B2B platform, buyers can easily compare specifications, grades, and applications and guarantee steady quality and supply. Nuts supplied in certified grades will offer the durability, precision and performance that are specific to the industrial and environmental conditions in Qatar, whether a large-scale industrial project is needed or routine maintenance.
Nut Weight Chart in mm, Kg, PDF
| NUTS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APPROX. WEIGHT IN KGS FOR 100 NOS. | |||||||||||||
| SIZE | OLD SPEC IS 1363/67 | NEW SPEC IS 1363/92 | HEIGHT = DIA NUTS | HEX LOCK NUTS IS 1364-84 | HSS NUTS IS: 6623 | Castle Nuts IS 2232-67 | Nylock Nuts Din 985 | SIZE | HEX NUTS BSW / BSF | HEX LOCK NUTS BSW / BSF | SQUARE NUTS – BSW | ASTM A-194 UNC HEAVY HEX NUTS | |
| M2 | 0.011 | 1/8″ | 0.041 | ||||||||||
| M3 | 0.033 | 0.050 | 5/32″ | 0.053 | |||||||||
| M4 | 0.067 | 0.112 | 0.100 | 3/16″ | 0.133 | ||||||||
| M5 | 0.111 | 0.080 | 0.230 | 0.140 | 1/4″ | 0.323 | 0.190 | 0.340 | |||||
| M6 | 0.232 | 0.120 | 0.316 | 0.240 | 5/16″ | 0.510 | 0.340 | 0.654 | 0.758 | ||||
| M7 | 0.294 | 0.396 | 0.300 | 3/8″ | 0.817 | 0.510 | 0.966 | 1.370 | |||||
| M8 | 0.482 | 0.300 | 0.735 | 0.510 | 7/16″ | 1.389 | 0.930 | 1.683 | 2.000 | ||||
| M10 | 1.020 | 0.909 | 1.282 | 0.670 | 1.580 | 1.060 | 1/2″ | 2.222 | 1.430 | 2.677 | 2.959 | ||
| M12 | 1.590 | 1.389 | 1.942 | 1.090 | 2.000 | 1.720 | 5/8″ | 4.348 | 2.700 | 5.040 | 5.263 | ||
| M14 | 2.400 | 3.049 | 1.680 | 2.700 | 2.600 | 3/4″ | 7.184 | 4.800 | 8.818 | 8.621 | |||
| M16 | 3.081 | 3.333 | 3.906 | 1.800 | 6.040 | 3.890 | 3.400 | 7/8″ | 8.621 | 5.600 | 10.917 | 12.658 | |
| M18 | 4.448 | 5.814 | 2.690 | 5.750 | 4.500 | 1″ | 12.987 | 8.500 | 15.432 | 17.986 | |||
| M20 | 6.031 | 6.667 | 7.519 | 3.300 | 11.530 | 7.520 | 6.500 | 1.1/8″ | 18.182 | 11.800 | 23.364 | 26.316 | |
| M22 | 7.143 | 8.929 | 9.091 | 3.890 | 14.280 | 9.300 | 7.500 | 1.1/4″ | 26.596 | 17.200 | 33.333 | 34.247 | |
| M24 | 10.309 | 12.500 | 12.821 | 5.100 | 19.770 | 13.100 | 10.000 | 1.3/8″ | 37.879 | 23.000 | 44.248 | ||
| M27 | 15.432 | 18.657 | 8.150 | 28.230 | 19.200 | 16.200 | 1.1/2″ | 45.455 | 28.000 | 60.241 | |||
| M30 | 21.645 | 26.596 | 10.400 | 36.500 | 26.400 | 21.200 | 1.5/8″ | 71.429 | 73.529 | ||||
| M33 | 27.174 | 34.483 | 14.300 | 33.330 | 31.700 | 1.3/4″ | 71.429 | 46.000 | 90.909 | ||||
| M36 | 37.037 | 43.860 | 17.600 | 28.180 | 44.700 | 41.500 | 2″ | 81.967 | 54.000 | 135.135 | |||
| M39 | 47.619 | 57.471 | 24.000 | 58.400 | 49.900 | 2.1/4″ | 111.111 | 185.185 | |||||
| M42 | 57.471 | 73.529 | 27.500 | 71.000 | 62.800 | 2.1/2″ | 172.414 | 238.095 | |||||
| M45 | 72.464 | 92.593 | 37.000 | 86.000 | 77.100 | 2.3/4″ | 263.158 | 333.333 | |||||
| M48 | 92.593 | 113.636 | 42.800 | 106.000 | 99.800 | 3″ | 333.333 | 454.545 | |||||
| M52 | 108.696 | 138.889 | 52.000 | 130.000 | 0 BA | 0.270 | |||||||
| M56 | 131.579 | 166.667 | 2 BA | 0.126 | |||||||||
| M60 | 161.290 | 192.308 | |||||||||||
| M64 | 185.185 | 227.273 | |||||||||||
| M72 | 250.000 | 312.500 | |||||||||||
| M80 | 333.333 | ||||||||||||
| M90 | 454.545 | ||||||||||||
| M100 | 625.000 | ||||||||||||
Type of Sub-products
Frequently Asked Questions
Do Nuts resist vibration loosening?
Do Nuts require maintenance?
Are Nuts environmentally sustainable?
